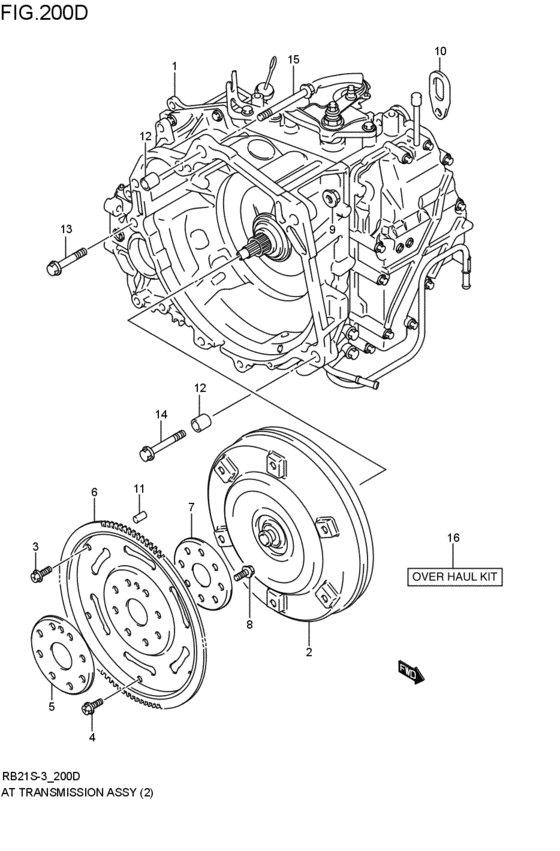

at - transmission assy (AT:M18A; 2002-12-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-55GK0-000
トランスミッションアッシ,オートマチック
AT:M18A:4WD; 2002-12-01~ |
20002-55GK0-000 |
— | ||
| replacements | |||||
|
1
|
1
20002-55GK1-000
トランスミッションアッシ,オートマチック
AT:M18A:4WD; 2002-12-01~ |
20002-55GK1-000 |
— | ||
|
1
|
1
22931-54G11-000 HOSE,OIL COOLER INLETAT:M18A:4WD; 2002-12-01~ |
22931-54G11-000 |
US $25.39 |
||
|
1
|
1
20002-55GK0-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; AT:M18A:4WD; 2002-12-01~ |
20002-55GK0-111 |
— | ||
| replacements | |||||
|
1
|
1
20002-55GK3-111
New Genuine Part
リビルト; AT:M18A:4WD; 2002-12-01~ |
20002-55GK3-111 |
— | ||
|
1
|
1
22931-54G11-000 HOSE,OIL COOLER INLETリビルト; AT:M18A:4WD; 2002-12-01~ |
22931-54G11-000 |
US $25.39 |
||
|
2
|
2
22710-54GH0-000 CONVERTER,TORQUEAT:M18A; 2002-12-01~ |
22710-54GH0-000 |
US $1,161.60 |
||
|
3
|
3
09103-08516-000 BOLT(8X9.5)AT:M18A; 2002-12-01~ |
09103-08516-000 |
from US $1.12 |
||
|
4
|
4
09103-08517-000 BOLT(8X9.5)AT:M18A; 2002-12-01~ |
09103-08517-000 |
from US $3.65 |
||
|
5
|
5
22611-69G10-000 FLANGE,T/C DRIVE PLATE FRAT:M18A; 2002-12-01~ |
22611-69G10-000 |
US $37.17 |
||
|
6
|
6
22620-69G10-000 PLATE,TC DRIVEAT:M18A; 2002-12-01~ |
22620-69G10-000 |
US $163.20 |
||
|
7
|
7
22631-69G10-000 PLATE,TC DRIVE REARAT:M18A; 2002-12-01~ |
22631-69G10-000 |
US $7.95 |
||
|
8
|
8
09103-10305-000 BOLT(10X18.5)AT:M18A; 2002-12-01~ |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
8
|
8
09100-10275-000 BOLT(10X18.5)AT:M18A; 2002-12-01~ |
09100-10275-000 |
US $1.44 |
||
|
9
|
9
08316-10123-000
Nut
AT:M18A; 2002-12-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1012A-000 NUTAT:M18A; 2002-12-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
10
|
10
11851-62B00-000 HOOKAT:M18A; 2002-12-01~ |
11851-62B00-000 |
US $5.02 |
||
|
11
|
11
04221-08129-000 PINPin, knock AT:M18A; 2002-12-01~ |
04221-08129-000 |
from US $0.91 |
||
|
12
|
12
09206-15001-000 PIN(12.4X15X17)AT:M18A; 2002-12-01~ |
09206-15001-000 |
US $1.92 |
||
|
13
|
13
01550-12453-000
ボルト
AT:M18A; 2002-12-01~ |
01550-12453-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1245A-000 BOLTAT:M18A; 2002-12-01~ |
01550-1245A-000 |
US $1.44 |
||
|
14
|
14
01550-12553-000
ボルト
AT:M18A; 2002-12-01~ |
01550-12553-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1255A-000 BoltAT:M18A; 2002-12-01~ |
01550-1255A-000 |
US $21.70 |
||
|
15
|
15
01550-12753-000
ボルト
AT:M18A; 2002-12-01~ |
01550-12753-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1275A-000 BOLTAT:M18A; 2002-12-01~ |
01550-1275A-000 |
US $1.92 |
||
|
16
|
16
24700-64GT0-000 OVERHAUL KIT,ATAT:M18A; 2002-12-01~ |
24700-64GT0-000 |
US $693.44 |
||
