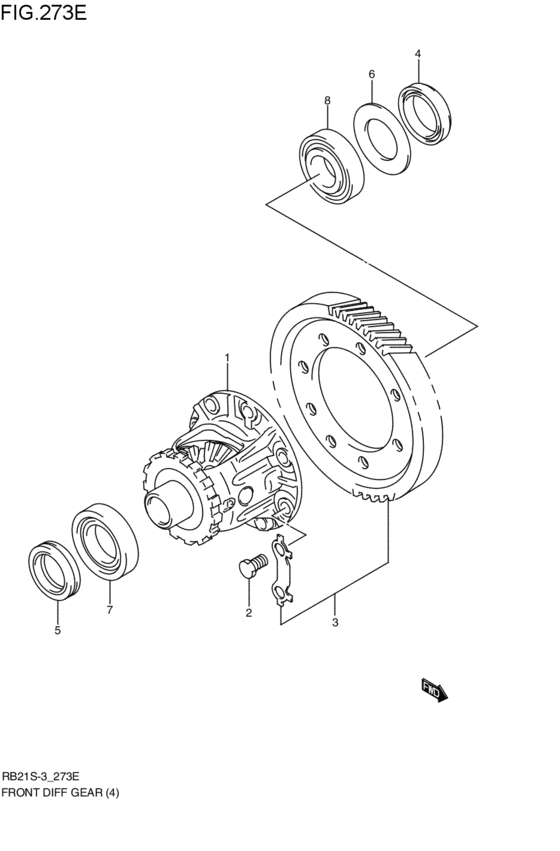

フロントデファレンシャルギヤ (AT:M18A; 2002-12-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27320-54GT0-000
GEAR ASSY,DIFF
AT:M18A:4WD; 2002-12-01~ |
27320-54GT0-000 |
— | ||
|
2
|
2
27516-60G10-000 BOLT,FINAL DRIVEN GEARAT:M18A; 2002-12-01~ |
27516-60G10-000 |
US $7.03 |
||
|
3
|
3
27511-65GU0-000 GEAR SET,FINAL DRIVENAT:M18A:4WD; 2002-12-01~ |
27511-65GU0-000 |
US $492.80 |
||
|
4
|
4
27431-60G10-000 SEAL,DIFF SIDE OILAT:M18A; 2002-12-01~ |
27431-60G10-000 |
from US $16.92 |
||
|
5
|
5
27441-60G10-000 SEAL,DIFF SIDE,RAT:M18A; 2002-12-01~ |
27441-60G10-000 |
from US $18.47 |
||
|
6
|
6
27454-60G10-002 SHIM,DIFF SIDE T:2.35AT:M18A; 2002-12-01~ |
27454-60G10-002 |
US $12.14 |
||
|
6
|
6
27454-60G10-003 SHIM,DIFF SIDE T:2.40AT:M18A; 2002-12-01~ |
27454-60G10-003 |
US $12.14 |
||
|
6
|
6
27454-60G10-004 SHIM,DIFF SIDE T:2.45AT:M18A; 2002-12-01~ |
27454-60G10-004 |
US $12.14 |
||
|
6
|
6
27454-60G10-005 SHIM,DIFF SIDE T:2.50AT:M18A; 2002-12-01~ |
27454-60G10-005 |
US $12.14 |
||
|
6
|
6
27454-60G10-006 SHIM,DIFF SIDE T:2.55AT:M18A; 2002-12-01~ |
27454-60G10-006 |
US $12.14 |
||
|
6
|
6
27454-60G10-007 SHIM,DIFF SIDE T:2.60AT:M18A; 2002-12-01~ |
27454-60G10-007 |
US $12.14 |
||
|
6
|
6
27454-60G10-008 SHIM,DIFF SIDE T:2.65AT:M18A; 2002-12-01~ |
27454-60G10-008 |
US $12.14 |
||
|
6
|
6
27454-60G10-009 SHIM,DIFF SIDE T:2.70AT:M18A; 2002-12-01~ |
27454-60G10-009 |
US $12.14 |
||
|
6
|
6
27454-60G10-010 SHIM,DIFF SIDE T:2.75AT:M18A; 2002-12-01~ |
27454-60G10-010 |
US $12.14 |
||
|
6
|
6
27454-60G10-011 SHIM,DIFF SIDE T:2.80AT:M18A; 2002-12-01~ |
27454-60G10-011 |
US $12.14 |
||
|
6
|
6
27454-60G10-012 SHIM,DIFF SIDE T:2.85AT:M18A; 2002-12-01~ |
27454-60G10-012 |
US $12.14 |
||
|
6
|
6
27454-60G10-013 SHIM,DIFF SIDE T:2.90AT:M18A; 2002-12-01~ |
27454-60G10-013 |
US $12.14 |
||
|
6
|
6
27454-60G10-014 SHIM,DIFF SIDE T:2.10AT:M18A; 2002-12-01~ |
27454-60G10-014 |
US $12.14 |
||
|
6
|
6
27454-60G10-015 SHIM,DIFF SIDE T:2.15AT:M18A; 2002-12-01~ |
27454-60G10-015 |
US $12.14 |
||
|
6
|
6
27454-60G10-016 SHIM,DIFF SIDE T:2.20AT:M18A; 2002-12-01~ |
27454-60G10-016 |
US $12.14 |
||
|
6
|
6
27454-60G10-017 SHIM,DIFF SIDE T:2.25AT:M18A; 2002-12-01~ |
27454-60G10-017 |
US $12.14 |
||
|
6
|
6
27454-60G10-018 SHIM,DIFF SIDE T:2.30AT:M18A; 2002-12-01~ |
27454-60G10-018 |
US $12.14 |
||
|
7
|
7
27483-54G10-000
RACE,DIFF SIDE BRG OUTER,R
AT:M18A:4WD; 2002-12-01~ |
27483-54G10-000 |
— | ||
|
8
|
8
27484-60G10-000 RACE,DIFF SIDEAT:M18A; 2002-12-01~ |
27484-60G10-000 |
US $32.20 |
