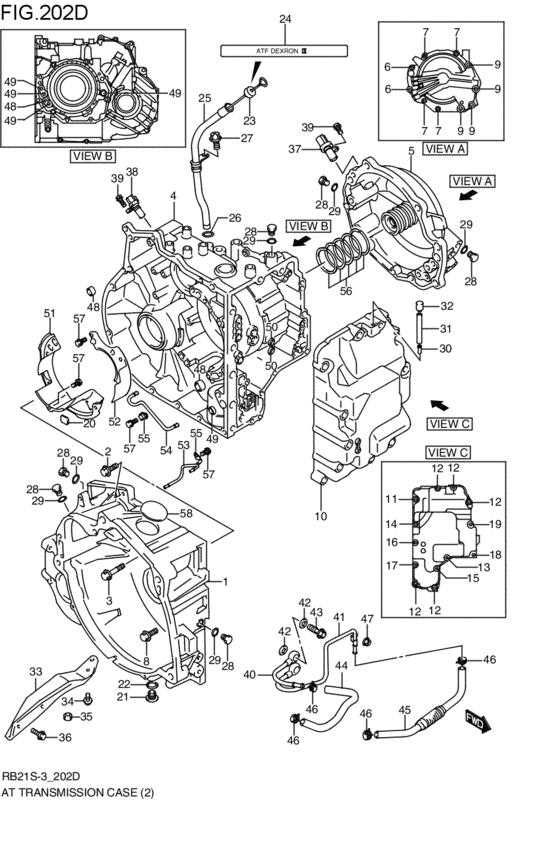

at - transmission case (ケース アンド カバー / ケースボルト アンド カバーボルト; AT:M18A; 2002-12-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24720-54G70-000
ハウジング,トルクコンバータ
AT:M18A:4WD; 2002-12-01~2003-06-01 |
24720-54G70-000 |
— | ||
|
1
|
1
24720-54G71-000
ハウジング,トルクコンバータ
AT:M18A:4WD; 2003-06-01~ |
24720-54G71-000 |
— | ||
|
2
|
2
24725-60G10-000 BOLT,HOUSING NO.1AT:M18A; 2002-12-01~2003-06-01 |
24725-60G10-000 |
US $4.27 |
||
|
3
|
3
24729-60G10-000 BoltAT:M18A; 2002-12-01~ |
24729-60G10-000 |
US $4.12 |
||
|
4
|
4
24710-60G12-000
CASE,T/M
AT:M18A; 2002-12-01~2003-06-01 |
24710-60G12-000 |
— | ||
|
4
|
4
24710-60G30-000 CASE,T/MAT:M18A; 2003-06-01~ |
24710-60G30-000 |
US $1,644.32 |
||
|
5
|
5
24730-60G10-000 COVER ASSY,T/M RRAT:M18A; 2002-12-01~ |
24730-60G10-000 |
US $591.36 |
||
|
6
|
6
24727-60G10-000 BOLT,HOUSING NO.3AT:M18A; 2002-12-01~ |
24727-60G10-000 |
US $4.75 |
||
|
7
|
7
24734-60G10-000 BOLT,RR COVER NO.2AT:M18A; 2002-12-01~ |
24734-60G10-000 |
US $4.05 |
||
|
8
|
8
24735-60G10-000 BOLT,T/C HOUSING N0.3AT:M18A; 2002-12-01~ |
24735-60G10-000 |
US $5.04 |
||
|
9
|
9
24736-60G10-000
ボルト
AT:M18A; 2002-12-01~ |
24736-60G10-000 |
— | ||
| replacement | |||||
|
9
|
9
22893-59J10-000 BOLT,OIL PUMP ASSYAT:M18A; 2002-12-01~ |
22893-59J10-000 |
US $4.64 |
||
|
10
|
10
24751-65G10-000 COVER,T/M SIDEAT:M18A; 2002-12-01~ |
24751-65G10-000 |
US $351.44 |
||
|
11
|
11
24727-60G10-000 BOLT,HOUSING NO.3AT:M18A; 2002-12-01~ |
24727-60G10-000 |
US $4.75 |
||
|
12
|
12
24753-60G10-000 BOLT,SIDE COVER NO.2AT:M18A; 2002-12-01~ |
24753-60G10-000 |
US $4.56 |
||
|
13
|
13
24755-65G10-000 BOLT,SIDE COVER NO.4AT:M18A; 2002-12-01~ |
24755-65G10-000 |
US $5.37 |
||
|
14
|
14
24754-60G10-000 BOLT,SIDE COVER NO.3AT:M18A; 2002-12-01~ |
24754-60G10-000 |
US $5.37 |
||
|
15
|
15
24758-65G10-000 BOLT,SIDE COVER NO.7AT:M18A; 2002-12-01~ |
24758-65G10-000 |
US $5.23 |
||
|
16
|
16
24758-65G10-000 BOLT,SIDE COVER NO.7AT:M18A; 2002-12-01~ |
24758-65G10-000 |
US $5.23 |
||
|
17
|
17
24754-60G10-000 BOLT,SIDE COVER NO.3AT:M18A; 2002-12-01~ |
24754-60G10-000 |
US $5.37 |
||
|
18
|
18
24756-65G10-000 BOLT,SIDE COVER STUDAT:M18A; 2002-12-01~ |
24756-65G10-000 |
US $7.76 |
||
|
19
|
19
24757-60G10-000 BOLT,SIDE COVER NO.6AT:M18A; 2002-12-01~ |
24757-60G10-000 |
US $6.26 |
||
|
20
|
20
24745-57B00-000 MAGNET,T/M OIL PANAT:M18A; 2002-12-01~ |
24745-57B00-000 |
US $5.60 |
||
|
21
|
21
24823-60G11-000 PLUG,DRAINAT:M18A; 2002-12-01~ |
24823-60G11-000 |
US $11.20 |
||
|
22
|
22
24824-60G10-000 GASKET,DRAIN PLUGAT:M18A; 2002-12-01~ |
24824-60G10-000 |
from US $1.96 |
||
|
23
|
23
24831-54G10-000 GAUGE,OIL LEVELAT:M18A; 2002-12-01~ |
24831-54G10-000 |
US $24.10 |
||
|
24
|
24
24839-65G11-000 EMBLEM,ATFAT:M18A; 2002-12-01~ |
24839-65G11-000 |
US $2.72 |
||
|
25
|
25
24841-60G10-000 TUBE,T/M OIL FILLERAT:M18A; 2002-12-01~ |
24841-60G10-000 |
US $37.90 |
||
|
26
|
26
24842-60G10-000 O-RINGAT:M18A; 2002-12-01~ |
24842-60G10-000 |
US $2.69 |
||
|
27
|
27
02162-06163-000
Screw
AT:M18A; 2002-12-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
27
|
27
02162-0616B-000 SCREWBolt, adjust AT:M18A; 2002-12-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
28
|
28
29849-57B00-000 PLUG,T/M CASEAT:M18A; 2002-12-01~ |
29849-57B00-000 |
US $5.89 |
||
|
29
|
29
29738-57B00-000 O-RINGAT:M18A; 2002-12-01~ |
29738-57B00-000 |
US $2.40 |
||
|
30
|
30
24851-60G10-000 PLUG,BREATHERAT:M18A; 2002-12-01~ |
24851-60G10-000 |
US $8.35 |
||
|
31
|
31
24856-60G10-000 HOSE,BREATHERAT:M18A; 2002-12-01~ |
24856-60G10-000 |
US $5.74 |
||
|
32
|
32
27991-65D01-000 PLUG,BREATHERAT:M18A; 2002-12-01~ |
27991-65D01-000 |
US $1.92 |
||
|
33
|
33
24791-54G60-000
STIFFENER,T/M CASE LOWER
AT:M18A; 2002-12-01~ |
24791-54G60-000 |
— | ||
|
34
|
34
01550-10253-000
Bolt
AT:M18A; 2002-12-01~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-1025B-000 BoltBolt, rr swgarm bracket, l AT:M18A; 2002-12-01~ |
01550-1025B-000 |
from US $3.24 |
||
|
34
|
34
01550-1025A-000 BOLTBolt, drive gear AT:M18A; 2002-12-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
35
|
35
08316-10103-000
Nut
AT:M18A; 2002-12-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
35
|
35
08316-1010B-000 NUTAT:M18A; 2002-12-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
36
|
36
01550-10253-000
Bolt
AT:M18A; 2002-12-01~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-1025B-000 BoltBolt, rr swgarm bracket, l AT:M18A; 2002-12-01~ |
01550-1025B-000 |
from US $3.24 |
||
|
36
|
36
01550-1025A-000 BOLTBolt, drive gear AT:M18A; 2002-12-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
37
|
37
26143-60G10-000 SENSOR,SPEED INPUTAT:M18A; 2002-12-01~ |
26143-60G10-000 |
from US $127.58 |
||
|
38
|
38
26141-60G10-000 SENSOR,SPEED OUTPUTAT:M18A; 2002-12-01~ |
26141-60G10-000 |
US $129.54 |
||
|
39
|
39
29999-57B00-000 BoltAT:M18A; 2002-12-01~ |
29999-57B00-000 |
US $5.89 |
||
|
40
|
40
22911-65G10-000 PIPE,OIL OUTLETAT:M18A; 2002-12-01~ |
22911-65G10-000 |
US $28.15 |
||
|
41
|
41
22921-65G30-000 PIPE,OIL COOLER OUTLETAT:M18A; 2002-12-01~ |
22921-65G30-000 |
US $37.54 |
||
|
42
|
42
22913-65D30-000
Gasket
AT:M18A; 2002-12-01~ |
22913-65D30-000 |
— | ||
| replacements | |||||
|
42
|
42
22913-59J10-000 GASKET,14X20X0.9AT:M18A; 2002-12-01~ |
22913-59J10-000 |
from US $1.15 |
||
|
42
|
42
22910-65810-000 BOLT&GASKET SETAT:M18A; 2002-12-01~ |
22910-65810-000 |
from US $8.96 |
||
|
43
|
43
09360-14012-000 BOLT,14X27Bolt, union (14x27) AT:M18A; 2002-12-01~ |
09360-14012-000 |
from US $6.88 |
||
|
44
|
44
22931-54G10-000
ホース,オイルクーラ,インレット
AT:M18A; 2002-12-01~ |
22931-54G10-000 |
— | ||
| replacement | |||||
|
44
|
44
22900-54810-000
HOSE SET,OIL COOLER INLET
AT:M18A; 2002-12-01~ |
22900-54810-000 |
— | ||
|
45
|
45
22932-54G10-000
ホース,オイルクーラ,アウトレット
AT:M18A; 2002-12-01~ |
22932-54G10-000 |
— | ||
| replacement | |||||
|
45
|
45
22932-54G30-000 HOSE,OIL COOLER OUTLETAT:M18A; 2002-12-01~ |
22932-54G30-000 |
US $20.98 |
||
|
46
|
46
09401-15408-000 CLIPClip, 2nd air cleaner hose no.2 AT:M18A; 2002-12-01~ |
09401-15408-000 |
from US $2.75 |
||
|
47
|
47
08316-10083-000
Nut
AT:M18A; 2002-12-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
47
|
47
08316-1008B-000 NUTAT:M18A; 2002-12-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
48
|
48
24815-60G10-000 GASKET,T/M CASE OIL LINE NO.1AT:M18A; 2002-12-01~ |
24815-60G10-000 |
US $6.11 |
||
|
49
|
49
24816-60G10-000 GASKET,T/M CASE OIL LINE NO.2AT:M18A; 2002-12-01~ |
24816-60G10-000 |
US $6.11 |
||
|
50
|
50
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1AT:M18A; 2002-12-01~ |
24818-68J10-000 |
from US $4.50 |
||
|
51
|
51
24881-65G10-000 PLATE,OIL RESERVOIR,RAT:M18A; 2002-12-01~ |
24881-65G10-000 |
US $53.36 |
||
|
52
|
52
24882-54G10-000 PLATE,OIL RESERVOIR,LAT:M18A; 2002-12-01~ |
24882-54G10-000 |
US $53.36 |
||
|
53
|
53
24883-60G10-000 TUBE,DIFF SIDEAT:M18A; 2002-12-01~ |
24883-60G10-000 |
US $25.21 |
||
|
54
|
54
24884-60G10-000 TUBE,DIFF SIDEAT:M18A; 2002-12-01~ |
24884-60G10-000 |
US $19.32 |
||
|
55
|
55
24885-60G10-000 CLAMP,R LUBRICATION TUBEAT:M18A; 2002-12-01~ |
24885-60G10-000 |
US $4.75 |
||
|
56
|
56
24732-60GT0-000 RING SET,REAR COVER SEALAT:M18A; 2002-12-01~ |
24732-60GT0-000 |
US $64.77 |
||
|
57
|
57
29970-57B00-000 BoltAT:M18A; 2002-12-01~ |
29970-57B00-000 |
US $5.89 |
||
|
58
|
58
09250-26005-000 CAP(OD:36)AT:M18A; 2002-12-01~ |
09250-26005-000 |
US $6.56 |
||
