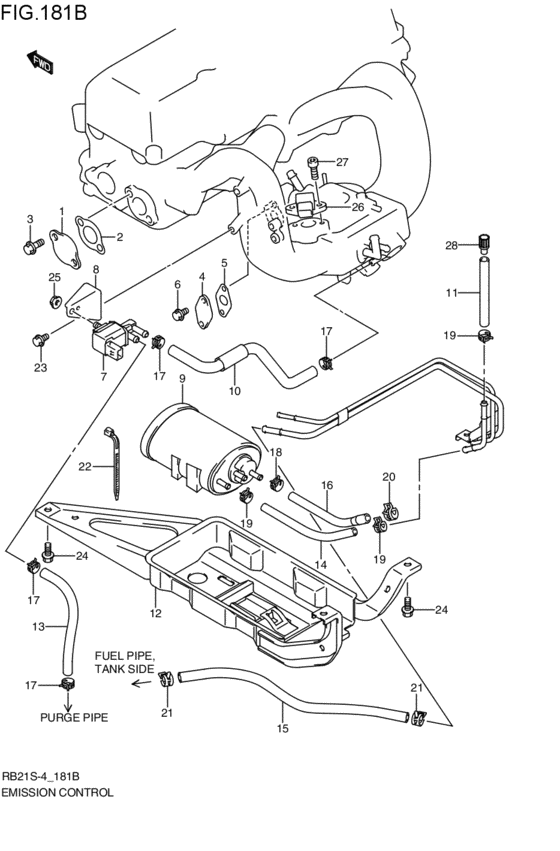

emission control (2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18491-80GA0-000 PLATE,EGR VALVE2003-10-01~2004-08-01 |
18491-80GA0-000 |
US $5.28 |
||
|
2
|
2
18529-69G00-000 GASKET,EGR VALVE2003-10-01~2004-08-01 |
18529-69G00-000 |
US $1.92 |
||
|
3
|
3
01550-08163-000
Bolt, holder
2003-10-01~2004-08-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0816B-000 BOLT2003-10-01~2004-08-01 |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
01550-0816A-000 BOLTBolt, rear 2003-10-01~2004-08-01 |
01550-0816A-000 |
from US $0.91 |
||
|
4
|
4
18492-77E00-000 PLATE,EGR PIPE2003-10-01~2004-08-01 |
18492-77E00-000 |
US $1.60 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPE2003-10-01~2004-08-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
01550-06123-000
Bolt
2003-10-01~2004-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp 2003-10-01~2004-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLT2003-10-01~2004-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge 2003-10-01~2004-08-01 |
18117-52G00-000 |
from US $70.63 |
||
|
8
|
8
18417-80G00-000
BRACKET,PURGE VALVE
2003-10-01~2004-08-01 |
18417-80G00-000 |
— | ||
|
9
|
9
18560-76A31-000 CANISTER2003-10-01~2004-08-01 |
18560-76A31-000 |
from US $84.02 |
||
|
10
|
10
18564-80G01-000
ホース,キャニスタパージ,NO.3
2003-10-01~2004-08-01 |
18564-80G01-000 |
— | ||
| replacements | |||||
|
10
|
10
09401-11419-000 CLIP2003-10-01~2004-08-01 |
09401-11419-000 |
from US $1.42 |
||
|
10
|
10
18564-80G02-000 HOSE,CSTR PURGE NO.32003-10-01~2004-08-01 |
18564-80G02-000 |
US $12.44 |
||
|
11
|
11
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>70; 2003-10-01~2004-08-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
11
|
11
44421-12FR0-000 HOSEL:600>70; 2003-10-01~2004-08-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
12
|
12
18570-54G10-000 BRACKET,CANISTER2003-10-01~2004-08-01 |
18570-54G10-000 |
US $73.97 |
||
|
13
|
13
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>210; 2003-10-01~2004-08-01 |
09355-54115-600 |
from US $7.20 |
||
|
14
|
14
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>190; 2003-10-01~2004-08-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
14
|
14
44421-12FR0-000 HOSEL:600>190; 2003-10-01~2004-08-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
15
|
15
09355-75149-600
HOSE(7.5X14X600)
L:600>380; 2003-10-01~2004-08-01 |
09355-75149-600 |
— | ||
|
16
|
16
09359-54121-600
ホース,5.6X12.4X600
L:600>180; 2003-10-01~2004-08-01 |
09359-54121-600 |
— | ||
| replacement | |||||
|
16
|
16
09359-54121-610 HOSEL:600>180; 2003-10-01~2004-08-01 |
09359-54121-610 |
US $9.49 |
||
|
17
|
17
09401-10409-000 CLIP2003-10-01~2004-08-01 |
09401-10409-000 |
from US $1.12 |
||
|
18
|
18
09401-11415-000 CLIP2003-10-01~2004-08-01 |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-11415-000 CLIP2003-10-01~2004-08-01 |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
09401-12404-000 CLIPClip 2003-10-01~2004-08-01 |
09401-12404-000 |
from US $1.52 |
||
|
21
|
21
09401-13416-000
Clamp
2003-10-01~2004-08-01 |
09401-13416-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-13419-000 CLIP2003-10-01~2004-08-01 |
09401-13419-000 |
from US $1.60 |
||
|
22
|
22
09407-12408-000
CLAMP(L:120)
2003-10-01~2004-08-01 |
09407-12408-000 |
— | ||
|
23
|
23
01550-06123-000
Bolt
2003-10-01~2004-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0612B-000 BOLTBolt, clamp 2003-10-01~2004-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
23
|
23
01550-0612A-000 BOLT2003-10-01~2004-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
01551-08163-000
Bolt
2003-10-01~2004-08-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
24
|
24
01551-0816C-000 Bolt2003-10-01~2004-08-01 |
01551-0816C-000 |
from US $0.96 |
||
|
24
|
24
01551-0816A-000
ボルト
2003-10-01~2004-08-01 |
01551-0816A-000 |
— | ||
|
25
|
25
08316-10063-000
Nut
2003-10-01~2004-08-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT2003-10-01~2004-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
18590-72F21-000
SENSOR,PRESSURE
2003-10-01~2004-08-01 |
18590-72F21-000 |
— | ||
| replacement | |||||
|
26
|
26
18590-68H00-000 SENSOR,PRESSURESensor, pressure 2003-10-01~2004-08-01 |
18590-68H00-000 |
from US $196.47 |
||
|
27
|
27
07130-05163-000
Bolt
2003-10-01~2004-08-01 |
07130-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
07130-0516A-000 Bolt2003-10-01~2004-08-01 |
07130-0516A-000 |
from US $3.67 |
||
|
28
|
28
18566-60G00-000 FILTER,PURGE AIR SUCTION2003-10-01~2004-08-01 |
18566-60G00-000 |
US $1.69 |
||
