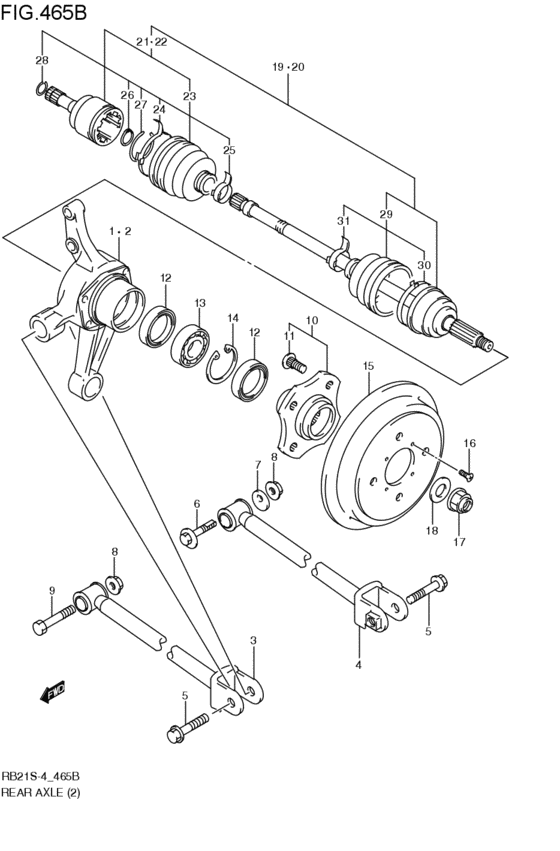

rear axle (4WD; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-54G70-000 KNUCKLE ASSY,RR SPNSN,R4WD; 2003-10-01~2004-08-01 |
46110-54G70-000 |
US $422.40 |
||
|
2
|
2
46150-54G70-000 KNUCKLE ASSY,RR SPNSN,L4WD; 2003-10-01~2004-08-01 |
46150-54G70-000 |
US $422.40 |
||
|
3
|
3
46300-59J00-000 ROD ASSY,REAR CONTROL4WD; 2003-10-01~2004-08-01 |
46300-59J00-000 |
US $58.51 |
||
|
4
|
4
46300-60G21-000 ROD ASSY,REAR CONTROL4WD; 2003-10-01~2004-08-01 |
46300-60G21-000 |
US $113.60 |
||
|
5
|
5
09103-12065-000 BOLT(12X62)4WD; 2003-10-01~2004-08-01 |
09103-12065-000 |
US $28.30 |
||
|
6
|
6
46330-60E00-000
ボルト,リヤコントロールロッド
4WD; 2003-10-01~2004-08-01 |
46330-60E00-000 |
— | ||
| replacement | |||||
|
6
|
6
46330-60E01-000 BOLT,RR CONTROL ROD4WD; 2003-10-01~2004-08-01 |
46330-60E01-000 |
from US $7 |
||
|
7
|
7
46333-60E00-000 WASHER,CONTROL ROD INR4WD; 2003-10-01~2004-08-01 |
46333-60E00-000 |
US $1.92 |
||
|
8
|
8
08316-10123-000
Nut
4WD; 2003-10-01~2004-08-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1012A-000 NUT4WD; 2003-10-01~2004-08-01 |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
09100-12057-000 BOLT(12X61)4WD; 2003-10-01~2004-08-01 |
09100-12057-000 |
from US $2.52 |
||
|
10
|
10
43420-60812-000 HUB,RR WHL4WD; 2003-10-01~2004-08-01 |
43420-60812-000 |
US $224.96 |
||
|
11
|
11
09119-12012-000 BOLT(12X38)4WD; 2003-10-01~2004-08-01 |
09119-12012-000 |
from US $0.99 |
||
|
12
|
12
43431-60B20-000 SEAL,FR WHL BRG INNER OIL4WD; 2003-10-01~2004-08-01 |
43431-60B20-000 |
from US $11.70 |
||
|
13
|
13
09267-35003-000 BEARING(35X61X31)4WD; 2003-10-01~2004-08-01 |
09267-35003-000 |
from US $93.49 |
||
|
14
|
14
08331-41626-000
Ring 62mm
4WD; 2003-10-01~2004-08-01 |
08331-41626-000 |
— | ||
| replacement | |||||
|
14
|
14
08331-4162A-000 CIRCLIP4WD; 2003-10-01~2004-08-01 |
08331-4162A-000 |
from US $1.76 |
||
|
15
|
15
43511-60G10-000 DRUM,RR BRAKE4WD; 2003-10-01~2004-08-01 |
43511-60G10-000 |
US $135.42 |
||
|
16
|
16
02122-06163-000
Screw
4WD; 2003-10-01~2004-08-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
02122-0616B-000 SCREWScrew, intake pipe 4WD; 2003-10-01~2004-08-01 |
02122-0616B-000 |
from US $0.80 |
||
|
16
|
16
02122-0616A-000 SCREW4WD; 2003-10-01~2004-08-01 |
02122-0616A-000 |
from US $0.76 |
||
|
17
|
17
09159-18008-000 NUT4WD; 2003-10-01~2004-08-01 |
09159-18008-000 |
from US $3.15 |
||
|
18
|
18
09160-18017-000 WASHER(18X35X4)4WD; 2003-10-01~2004-08-01 |
09160-18017-000 |
from US $0.90 |
||
|
19
|
19
44105-54G00-000 SHAFT ASSY,REAR DRIVE,R4WD; 2003-10-01~2004-08-01 |
44105-54G00-000 |
US $696.96 |
||
|
20
|
20
44106-54G00-000 SHAFT ASSY,REAR DRIVE,L4WD; 2003-10-01~2004-08-01 |
44106-54G00-000 |
US $528 |
||
|
21
|
21
44117-54G30-000
Joint assy,diff side,r
ライト; 4WD; 2003-10-01~2004-08-01 |
44117-54G30-000 |
— | ||
|
22
|
22
44117-54G40-000
Joint assy,diff side,l
レフト; 4WD; 2003-10-01~2004-08-01 |
44117-54G40-000 |
— | ||
|
23
|
23
44119-54G10-000
BOOT SET,DIFF SIDE
4WD; 2003-10-01~2004-08-01 |
44119-54G10-000 |
— | ||
|
24
|
24
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 2003-10-01~2004-08-01 |
44122-86010-000 |
from US $9.02 |
||
|
25
|
25
44124-86011-000 BAND,BOOT4WD; 2003-10-01~2004-08-01 |
44124-86011-000 |
US $6.81 |
||
|
26
|
26
44111-78010-000 RING,SNAP4WD; 2003-10-01~2004-08-01 |
44111-78010-000 |
US $2.80 |
||
|
27
|
27
44112-78010-000 CIRCLIP4WD; 2003-10-01~2004-08-01 |
44112-78010-000 |
from US $5.26 |
||
|
28
|
28
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD; 2003-10-01~2004-08-01 |
09381-24001-000 |
from US $0.92 |
||
|
29
|
29
44118-54G10-000
Boot set,wheel side
4WD; 2003-10-01~2004-08-01 |
44118-54G10-000 |
— | ||
| replacements | |||||
|
29
|
29
44118-69D01-000
BOOT SET
4WD; 2003-10-01~2004-08-01 |
44118-69D01-000 |
— | ||
|
29
|
29
44118-69D02-000 BOOT SET4WD; 2003-10-01~2004-08-01 |
44118-69D02-000 |
US $145.92 |
||
|
30
|
30
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 2003-10-01~2004-08-01 |
44122-86010-000 |
from US $9.02 |
||
|
31
|
31
44124-86011-000 BAND,BOOT4WD; 2003-10-01~2004-08-01 |
44124-86011-000 |
US $6.81 |
||
