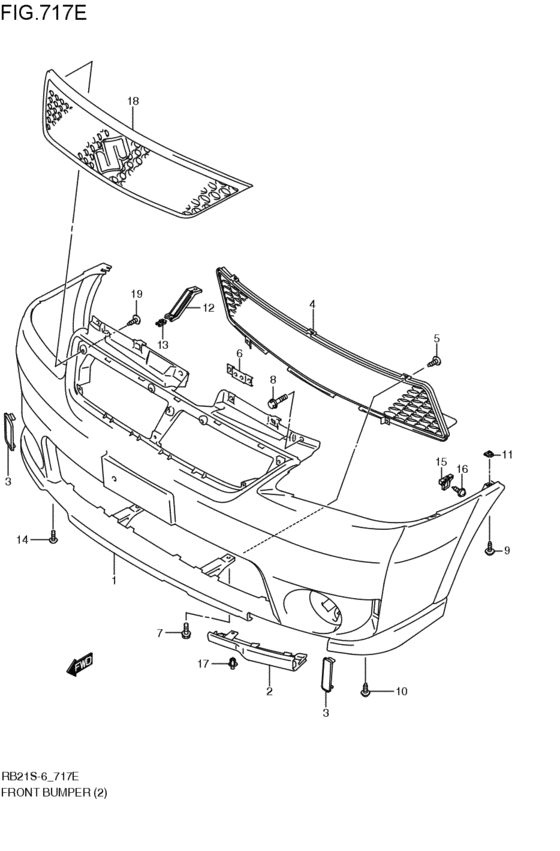

front bumper (M18A; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-59J00-799 BUMPER,FR(PRIMARY)プライマリ-; M18A; 2005-12-01~2007-05-01 |
71711-59J00-799 |
US $1,108.80 |
||
|
2
|
2
71712-59J00-ZJ3
CAP,FR BUMPER
ブラック; M18A; 2005-12-01~2007-05-01 |
71712-59J00-ZJ3 |
— | ||
| replacement | |||||
|
2
|
2
71712-59J00-799 CAP,FR BUMPER(PRIMARY)ブラック; M18A; 2005-12-01~2007-05-01 |
71712-59J00-799 |
US $94.40 |
||
|
2
|
2
71712-59J00-ZY4
Cap,front bumper
グレ-; M18A; 2005-12-01~2007-05-01 |
71712-59J00-ZY4 |
— | ||
| replacement | |||||
|
2
|
2
71712-59J00-799 CAP,FR BUMPER(PRIMARY)グレ-; M18A; 2005-12-01~2007-05-01 |
71712-59J00-799 |
US $94.40 |
||
|
2
|
2
71712-59J00-Z2S
CAP,FR BUMPER
シルバ-; M18A; 2005-12-01~2007-05-01 |
71712-59J00-Z2S |
— | ||
| replacement | |||||
|
2
|
2
71712-59J00-799 CAP,FR BUMPER(PRIMARY)シルバ-; M18A; 2005-12-01~2007-05-01 |
71712-59J00-799 |
US $94.40 |
||
|
2
|
2
71712-59J00-Z7T CAP,FR BUMPERホワイト; M18A; 2005-12-01~2007-05-01 |
71712-59J00-Z7T |
US $114.77 |
||
|
3
|
3
71713-59J00-000 GARNISH,FR BPR SIDEM18A; 2005-12-01~2007-05-01 |
71713-59J00-000 |
US $5.76 |
||
|
4
|
4
71717-59J00-000 GRILLE,RDTR LWRM18A; 2005-12-01~2007-05-01 |
71717-59J00-000 |
US $74.40 |
||
|
5
|
5
03541-04163-000
Screw
M18A; 2005-12-01~2007-05-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0416A-000 SCREWScrew, trunk box lamp M18A; 2005-12-01~2007-05-01 |
03541-0416A-000 |
from US $0.76 |
||
|
6
|
6
71771-60A00-000 RETAINER,FR LICENSE PLATEM18A; 2005-12-01~2007-05-01 |
71771-60A00-000 |
US $4.16 |
||
|
7
|
7
09111-06061-000
Bolt,6x16.5
M18A; 2005-12-01~2007-05-01 |
09111-06061-000 |
— | ||
| replacement | |||||
|
7
|
7
09111-06094-000 BOLT(6X16.5)M18A; 2005-12-01~2007-05-01 |
09111-06094-000 |
from US $0.96 |
||
|
8
|
8
09103-06283-000 BOLT(6X16)M18A; 2005-12-01~2007-05-01 |
09103-06283-000 |
from US $4.37 |
||
|
9
|
9
09136-05057-000
Screw, fr turnsignal (5x20)
M18A; 2005-12-01~2007-05-01 |
09136-05057-000 |
— | ||
| replacement | |||||
|
9
|
9
09136-05068-000 SCREW(5X20)M18A; 2005-12-01~2007-05-01 |
09136-05068-000 |
from US $0.96 |
||
|
10
|
10
09136-05057-000
Screw, fr turnsignal (5x20)
M18A; 2005-12-01~2007-05-01 |
09136-05057-000 |
— | ||
| replacement | |||||
|
10
|
10
09136-05068-000 SCREW(5X20)M18A; 2005-12-01~2007-05-01 |
09136-05068-000 |
from US $0.96 |
||
|
11
|
11
09148-05028-000 NUTM18A; 2005-12-01~2007-05-01 |
09148-05028-000 |
US $1.28 |
||
|
12
|
12
71721-59J00-000
STAY,FRONT BUMPER
M18A; 2005-12-01~2007-05-01 |
71721-59J00-000 |
— | ||
|
13
|
13
09148-05039-000 NUTM18A; 2005-12-01~2007-05-01 |
09148-05039-000 |
US $1.28 |
||
|
14
|
14
02142-15163-000
Screw
M18A; 2005-12-01~2007-05-01 |
02142-15163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-1516A-000 SCREWM18A; 2005-12-01~2007-05-01 |
02142-1516A-000 |
from US $2.92 |
||
|
15
|
15
71731-54GA0-000 HOLDER,FR BUMPER SIDEM18A; 2005-12-01~2007-05-01 |
71731-54GA0-000 |
US $2.56 |
||
|
16
|
16
03512-05123-000
Screw
M18A; 2005-12-01~2007-05-01 |
03512-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03511-0512A-000 SCREWM18A; 2005-12-01~2007-05-01 |
03511-0512A-000 |
from US $0.80 |
||
|
17
|
17
09409-08338-000 CLIPM18A; 2005-12-01~2007-05-01 |
09409-08338-000 |
US $1.82 |
||
|
18
|
18
72111-59J00-D51 GRILLE,FR(BLACK/CHROME)ブラック/クローム; M18A; 2005-12-01~2007-05-01 |
72111-59J00-D51 |
US $196.88 |
||
|
19
|
19
03541-04163-000
Screw
M18A; 2005-12-01~2007-05-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0416A-000 SCREWScrew, trunk box lamp M18A; 2005-12-01~2007-05-01 |
03541-0416A-000 |
from US $0.76 |
||
