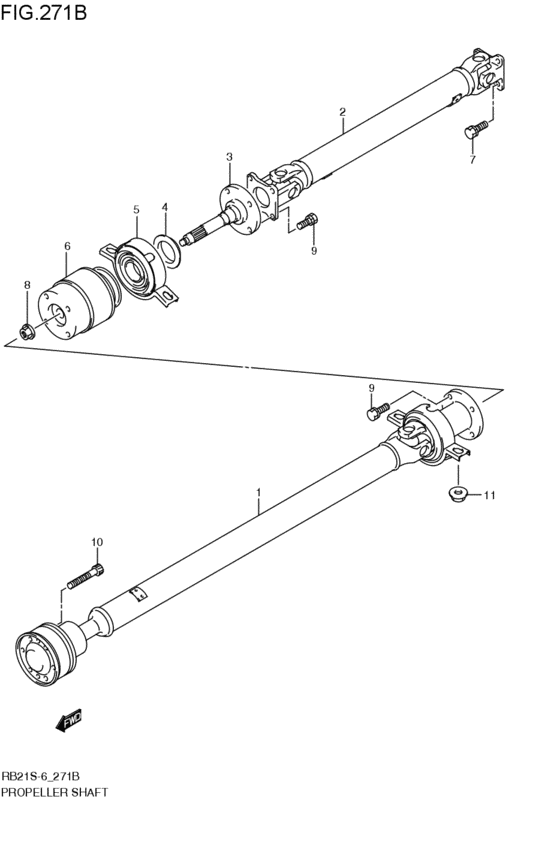

propeller shaft (4WD; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-59J20-000 SHAFT ASSY,PROPELLER NO.14WD; 2005-12-01~2007-05-01 |
27101-59J20-000 |
US $1,003.20 |
||
|
2
|
2
27102-59J00-000 SHAFT ASSY,PROPELLER NO.24WD; 2005-12-01~2007-05-01 |
27102-59J00-000 |
US $809.60 |
||
|
3
|
3
27112-76G00-000
シャフト,カップリング
トリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-05-01 |
27112-76G00-000 |
— | ||
| replacements | |||||
|
3
|
3
27112-76G01-000 SHAFT,COUPLINGトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-05-01 |
27112-76G01-000 |
US $128.06 |
||
|
3
|
3
08331-31179-000 CIRCLIPトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-05-01 |
08331-31179-000 |
from US $0.96 |
||
|
3
|
3
08331-3117A-000
Circlip, kick idle gr
トリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-05-01 |
08331-3117A-000 |
— | ||
|
4
|
4
27132-58J00-000 COVER,CENTER BEARING DUST4WD; 2005-12-01~2007-05-01 |
27132-58J00-000 |
US $7.40 |
||
|
5
|
5
27170-60G00-000 SUPPORT,CENTER BEARING4WD; 2005-12-01~2007-05-01 |
27170-60G00-000 |
US $182.16 |
||
|
6
|
6
27610-54G00-000 COUPLING,VISCOUS4WD; 2005-12-01~2007-05-01 |
27610-54G00-000 |
US $1,041.92 |
||
|
7
|
7
09117-08095-000
Bolt (8x20)
4WD; 2005-12-01~2007-05-01 |
09117-08095-000 |
— | ||
| replacement | |||||
|
7
|
7
09117-08103-000 BOLT(8X18)4WD; 2005-12-01~2007-05-01 |
09117-08103-000 |
from US $1.69 |
||
|
8
|
8
09159-12001-000 NUTトリツケホウホウ:ナット>サークリップ; 4WD; 2005-12-01~2007-05-01 |
09159-12001-000 |
US $56.30 |
||
|
9
|
9
09117-08052-000 BOLT(8X21.5)4WD; 2005-12-01~2007-05-01 |
09117-08052-000 |
US $12.50 |
||
|
10
|
10
07130-0850A-000 BOLT4WD; 2005-12-01~2007-05-01 |
07130-0850A-000 |
from US $1.60 |
||
|
11
|
11
08316-1010A-000 NUTNut, kick starter 4WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
