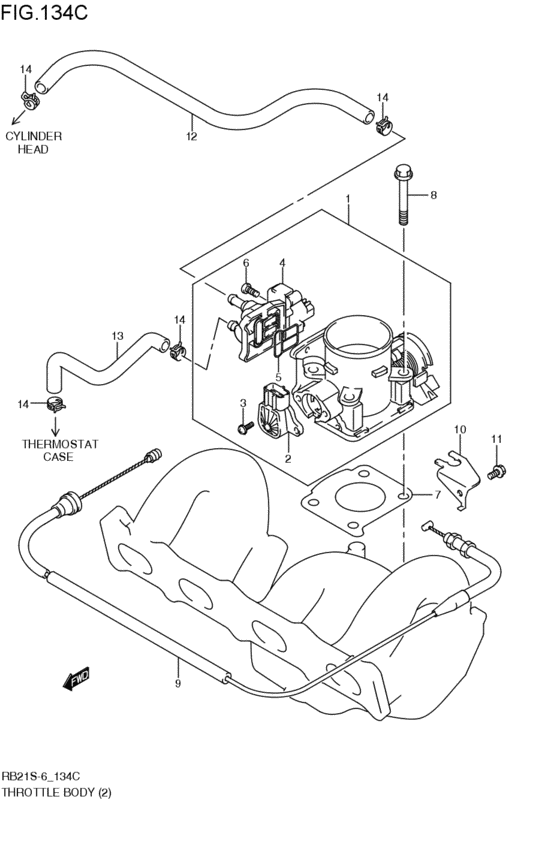

throttle body (M18A; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-54G20-000 BODY ASSY,THROTTLEM18A; 2005-12-01~2007-05-01 |
13400-54G20-000 |
US $2,112 |
||
|
2
|
2
13420-54G00-000
センサ,スロットルポジション
M18A; 2005-12-01~2007-05-01 |
13420-54G00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-54G01-000 SENSOR,THROTTLE POSITIONM18A; 2005-12-01~2007-05-01 |
13420-54G01-000 |
US $340.80 |
||
|
3
|
3
13428-77G10-000
Screw
M18A; 2005-12-01~2007-05-01 |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X12M18A; 2005-12-01~2007-05-01 |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18137-54G10-000 VALVE,IACM18A; 2005-12-01~2007-05-01 |
18137-54G10-000 |
US $642.96 |
||
|
5
|
5
14139-54G00-000 GASKET,ISC VALVEM18A; 2005-12-01~2007-05-01 |
14139-54G00-000 |
US $9.05 |
||
|
6
|
6
13602-47190-000
スクリュ,5X18
M18A; 2005-12-01~2007-05-01 |
13602-47190-000 |
— | ||
| replacement | |||||
|
6
|
6
13602-4719V-000 SCREW(5X18)M18A; 2005-12-01~2007-05-01 |
13602-4719V-000 |
US $2.87 |
||
|
7
|
7
13421-54G10-000 GASKET,THROTTLE BODYM18A; 2005-12-01~2007-05-01 |
13421-54G10-000 |
US $4.32 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder M18A; 2005-12-01~2007-05-01 |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
15910-54G01-000
ケーブルアッシ,アクセル
M18A; 2005-12-01~2007-05-01 |
15910-54G01-000 |
— | ||
| replacement | |||||
|
9
|
9
15910-54G02-000 CABLE ASSY,ACCELM18A; 2005-12-01~2007-05-01 |
15910-54G02-000 |
from US $43.56 |
||
|
10
|
10
15919-54G00-000 GUIDE,ACCEL CABLEM18A; 2005-12-01~2007-05-01 |
15919-54G00-000 |
US $6.92 |
||
|
11
|
11
01550-0612A-000 BOLTM18A; 2005-12-01~2007-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
13491-54G10-000 HOSE,WTR THROT BODY INLETM18A; 2005-12-01~2007-05-01 |
13491-54G10-000 |
US $15.97 |
||
|
13
|
13
13492-80GA0-000 HOSE,WTR THROT BODY OUTLETM18A; 2005-12-01~2007-05-01 |
13492-80GA0-000 |
US $7.14 |
||
|
14
|
14
09401-12410-000 CLIPClip, filter outlet M18A; 2005-12-01~2007-05-01 |
09401-12410-000 |
from US $1.19 |
||
