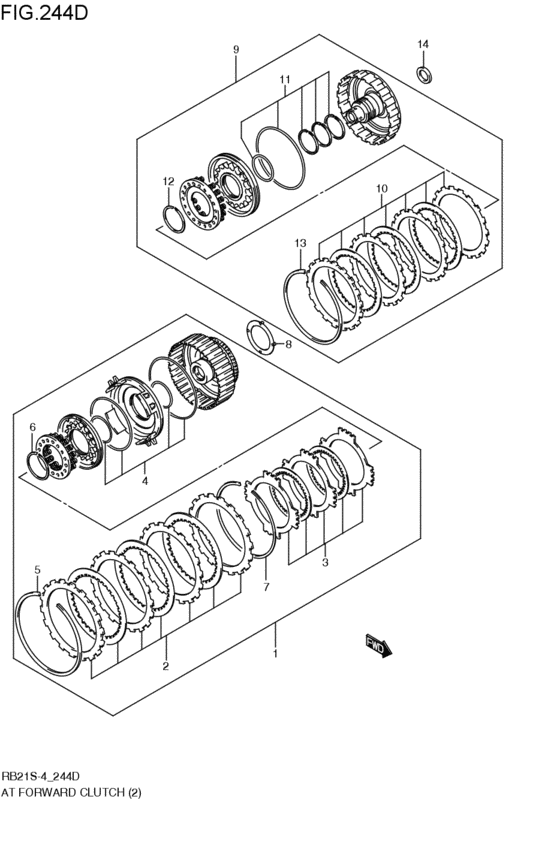

at - forward clutch (M18A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26910-55GM0-000
CLUTCH ASSY,3RD&4TH&COAST
M18A; 2003-10-01~2004-08-01 |
26910-55GM0-000 |
— | ||
| replacement | |||||
|
1
|
1
26910-56K50-000 CLUTCH ASSY,3RD&4TH&COASTM18A; 2003-10-01~2004-08-01 |
26910-56K50-000 |
US $869.44 |
||
|
2
|
2
26919-55GT0-000
Plate set,3rd & 4th clutch
M18A; 2003-10-01~2004-08-01 |
26919-55GT0-000 |
— | ||
| replacement | |||||
|
2
|
2
26919-56KT0-000 PLATE SET,3RD&4TH CLUTCHM18A; 2003-10-01~2004-08-01 |
26919-56KT0-000 |
US $233.68 |
||
|
3
|
3
26818-65GU0-000 PLATE SET,COAST CLUTCHM18A; 2003-10-01~2004-08-01 |
26818-65GU0-000 |
US $230 |
||
|
4
|
4
26913-60GT0-000 O-RING SET,3-4/COAST CLUTCHM18A; 2003-10-01~2004-08-01 |
26913-60GT0-000 |
US $32.75 |
||
|
5
|
5
26623-60G11-000 RING,RETAINING SNAPM18A; 2003-10-01~2004-08-01 |
26623-60G11-000 |
US $9.46 |
||
|
6
|
6
26917-60G10-000 RING,3-4/COAST CLUTCH SPRINGM18A; 2003-10-01~2004-08-01 |
26917-60G10-000 |
US $5.37 |
||
|
7
|
7
26623-60G11-000 RING,RETAINING SNAPM18A; 2003-10-01~2004-08-01 |
26623-60G11-000 |
US $9.46 |
||
|
8
|
8
26633-60G10-000 WASHER,FORWARD CL THRM18A; 2003-10-01~2004-08-01 |
26633-60G10-000 |
US $5.96 |
||
|
9
|
9
26610-65G10-000 CLUTCH ASSY,FORWARDM18A; 2003-10-01~2004-08-01 |
26610-65G10-000 |
US $718.08 |
||
|
10
|
10
26618-65GT0-000 PLATE SET,FORWARD CLUTCHM18A; 2003-10-01~2004-08-01 |
26618-65GT0-000 |
US $228.16 |
||
|
11
|
11
26613-60GT0-000 O-RING SET,FORWARD CLUTCHM18A; 2003-10-01~2004-08-01 |
26613-60GT0-000 |
US $53.73 |
||
|
12
|
12
26617-60G10-000 RING,FWD CL SNAPM18A; 2003-10-01~2004-08-01 |
26617-60G10-000 |
US $4.12 |
||
|
13
|
13
26623-60G11-000 RING,RETAINING SNAPM18A; 2003-10-01~2004-08-01 |
26623-60G11-000 |
US $9.46 |
||
|
14
|
14
26624-60G10-000 BEARING,FWD CLUTCH THRUSTM18A; 2003-10-01~2004-08-01 |
26624-60G10-000 |
US $33.67 |
||
