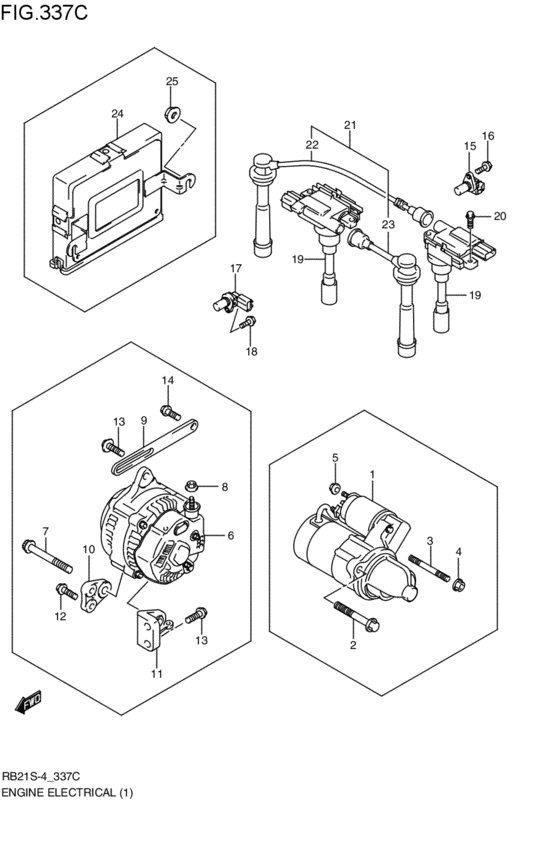

engine electrical (M18A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G20-000 MOTOR ASSY,STARTINGM18A; 2003-10-01~2004-08-01 |
31100-80G20-000 |
US $675.84 |
||
|
2
|
2
01550-10603-000
Bolt
M18A; 2003-10-01~2004-08-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1060B-000 BoltM18A; 2003-10-01~2004-08-01 |
01550-1060B-000 |
US $1.60 |
||
|
2
|
2
01550-1060A-000 BoltM18A; 2003-10-01~2004-08-01 |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
01421-10603-000
Stud bolt (l:60)
M18A; 2003-10-01~2004-08-01 |
01421-10603-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-1060A-000 BOLT,STUDM18A; 2003-10-01~2004-08-01 |
01421-1060A-000 |
from US $1.68 |
||
|
4
|
4
08316-10103-000
Nut
M18A; 2003-10-01~2004-08-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUTM18A; 2003-10-01~2004-08-01 |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
08316-10083-000
Nut
M18A; 2003-10-01~2004-08-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTM18A; 2003-10-01~2004-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
31400-80G10-000
Generator assy
M18A; 2003-10-01~2004-08-01 |
31400-80G10-000 |
— | ||
| replacements | |||||
|
6
|
6
31400-80G11-000
GENERATOR ASSY
M18A; 2003-10-01~2004-08-01 |
31400-80G11-000 |
— | ||
|
6
|
6
31400-80G12-000 Generator AssyM18A; 2003-10-01~2004-08-01 |
31400-80G12-000 |
US $601.92 |
||
|
7
|
7
07120-10853-000
ボルト
M18A; 2003-10-01~2004-08-01 |
07120-10853-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-1085A-000 BOLTM18A; 2003-10-01~2004-08-01 |
07120-1085A-000 |
US $24.70 |
||
|
8
|
8
08316-10063-000
Nut
M18A; 2003-10-01~2004-08-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUTM18A; 2003-10-01~2004-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
11561-54G00-000
アーム,ジェネレータアジャスティング
M18A; 2003-10-01~2004-08-01 |
11561-54G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11561-54G01-000
ARM,GENERATOR ADJUST
M18A; 2003-10-01~2004-08-01 |
11561-54G01-000 |
— | ||
|
10
|
10
11550-54G00-000
ブラケット,ジェネレータ,NO.1
M18A; 2003-10-01~2004-08-01 |
11550-54G00-000 |
— | ||
| replacement | |||||
|
10
|
10
11550-64J01-000 BRACKET,GENERATORM18A; 2003-10-01~2004-08-01 |
11550-64J01-000 |
US $20.98 |
||
|
11
|
11
11550-54G10-000 BRACKET ASSY,GENERATOR NO.2M18A; 2003-10-01~2004-08-01 |
11550-54G10-000 |
US $31.20 |
||
|
12
|
12
01550-08303-000
Bolt
M18A; 2003-10-01~2004-08-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0830B-000 BoltM18A; 2003-10-01~2004-08-01 |
01550-0830B-000 |
from US $1.06 |
||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover M18A; 2003-10-01~2004-08-01 |
01550-0830A-000 |
from US $1.12 |
||
|
13
|
13
09118-08107-000 BOLT(8X25)M18A; 2003-10-01~2004-08-01 |
09118-08107-000 |
US $1.12 |
||
|
14
|
14
01550-08303-000
Bolt
M18A; 2003-10-01~2004-08-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0830B-000 BoltM18A; 2003-10-01~2004-08-01 |
01550-0830B-000 |
from US $1.06 |
||
|
14
|
14
01550-0830A-000 BOLTBolt, mount oil seal cover M18A; 2003-10-01~2004-08-01 |
01550-0830A-000 |
from US $1.12 |
||
|
15
|
15
33220-50G02-000 SENSOR ASSY,CAM POSITIONM18A; 2003-10-01~2004-08-01 |
33220-50G02-000 |
US $145.60 |
||
|
16
|
16
01550-06163-000
Bolt
M18A; 2003-10-01~2004-08-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTM18A; 2003-10-01~2004-08-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTM18A; 2003-10-01~2004-08-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33220-80G00-000 SENSOR ASSY,CRANK POSITIONM18A; 2003-10-01~2004-08-01 |
33220-80G00-000 |
from US $104.88 |
||
|
18
|
18
09103-06240-000 BOLT(6X16)M18A; 2003-10-01~2004-08-01 |
09103-06240-000 |
from US $1.04 |
||
|
19
|
19
33400-65G01-000
Coil assy,ignition
M18A; 2003-10-01~2004-08-01 |
33400-65G01-000 |
— | ||
| replacement | |||||
|
19
|
19
33400-65G02-000 COIL ASSY,IGNITION DENSOM18A; 2003-10-01~2004-08-01 |
33400-65G02-000 |
US $219.20 |
||
|
20
|
20
01560-06203-000
Bolt
M18A; 2003-10-01~2004-08-01 |
01560-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01560-0620A-000 BoltM18A; 2003-10-01~2004-08-01 |
01560-0620A-000 |
from US $0.77 |
||
|
21
|
21
33705-80G00-000 CORD SET,HIGH TENSIONM18A; 2003-10-01~2004-08-01 |
33705-80G00-000 |
US $44 |
||
|
22
|
22
33730-80G00-000 CORD,HIGH TENSION NO.2M18A; 2003-10-01~2004-08-01 |
33730-80G00-000 |
US $24 |
||
|
23
|
23
33740-80G00-000 CORD,HIGH TENSION NO.3M18A; 2003-10-01~2004-08-01 |
33740-80G00-000 |
US $21.28 |
||
|
24
|
24
33920-59J01-000
コントローラアッシ,インジェクション/エアコン
M18A; 2003-10-01~2004-08-01 |
33920-59J01-000 |
— | ||
|
25
|
25
09159-06076-000 NUTM18A; 2003-10-01~2004-08-01 |
09159-06076-000 |
from US $1.28 |
||
