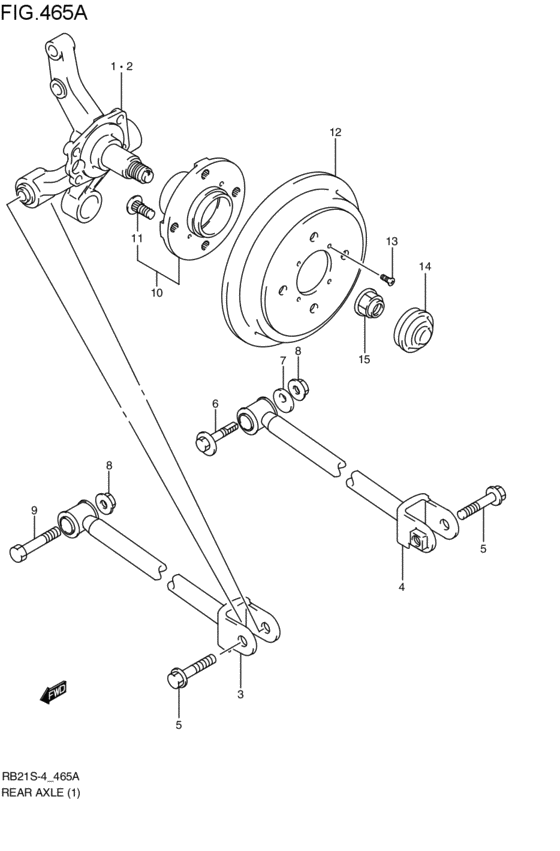

rear axle (2WD; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-54G60-000 KNUCKLE ASSY,RR SPNSN,R2WD; 2003-10-01~2004-08-01 |
46110-54G60-000 |
US $277.84 |
||
|
2
|
2
46150-54G60-000 KNUCKLE ASSY,RR SPNSN,L2WD; 2003-10-01~2004-08-01 |
46150-54G60-000 |
US $277.84 |
||
|
3
|
3
46300-59J00-000 ROD ASSY,REAR CONTROL2WD; 2003-10-01~2004-08-01 |
46300-59J00-000 |
US $58.51 |
||
|
4
|
4
46300-60G21-000 ROD ASSY,REAR CONTROL2WD; 2003-10-01~2004-08-01 |
46300-60G21-000 |
US $113.60 |
||
|
5
|
5
09103-12065-000 BOLT(12X62)2WD; 2003-10-01~2004-08-01 |
09103-12065-000 |
from US $2.40 |
||
|
6
|
6
46330-60E00-000
ボルト,リヤコントロールロッド
2WD; 2003-10-01~2004-08-01 |
46330-60E00-000 |
— | ||
| replacement | |||||
|
6
|
6
46330-60E01-000 BOLT,RR CONTROL ROD2WD; 2003-10-01~2004-08-01 |
46330-60E01-000 |
from US $8.16 |
||
|
7
|
7
46333-60E00-000 WASHER,CONTROL ROD INR2WD; 2003-10-01~2004-08-01 |
46333-60E00-000 |
from US $1.92 |
||
|
8
|
8
08316-10123-000
Nut
2WD; 2003-10-01~2004-08-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1012A-000 NUT2WD; 2003-10-01~2004-08-01 |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
09100-12057-000 BOLT(12X61)2WD; 2003-10-01~2004-08-01 |
09100-12057-000 |
from US $2.72 |
||
|
10
|
10
43402-54G22-000 HUB ASSY,RR WHL2WD; 2003-10-01~2004-08-01 |
43402-54G22-000 |
US $246.56 |
||
|
11
|
11
09119-12012-000 BOLT(12X38)2WD; 2003-10-01~2004-08-01 |
09119-12012-000 |
US $2.72 |
||
|
12
|
12
43511-60G10-000 DRUM,RR BRAKE2WD; 2003-10-01~2004-08-01 |
43511-60G10-000 |
US $135.42 |
||
|
13
|
13
02122-06163-000
Screw
2WD; 2003-10-01~2004-08-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
02122-0616B-000 SCREWScrew, intake pipe 2WD; 2003-10-01~2004-08-01 |
02122-0616B-000 |
from US $0.80 |
||
|
13
|
13
02122-0616A-000 SCREW2WD; 2003-10-01~2004-08-01 |
02122-0616A-000 |
from US $0.76 |
||
|
14
|
14
43241-60G02-000
キャップ,スピンドル
2WD; 2003-10-01~2004-08-01 |
43241-60G02-000 |
— | ||
| replacement | |||||
|
14
|
14
43241-60G03-000 CAP,SPINDLE2WD; 2003-10-01~2004-08-01 |
43241-60G03-000 |
US $7.80 |
||
|
15
|
15
09159-18017-000
Nut
2WD; 2003-10-01~2004-08-01 |
09159-18017-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-18026-000 NUT2WD; 2003-10-01~2004-08-01 |
09159-18026-000 |
from US $3.33 |
||
