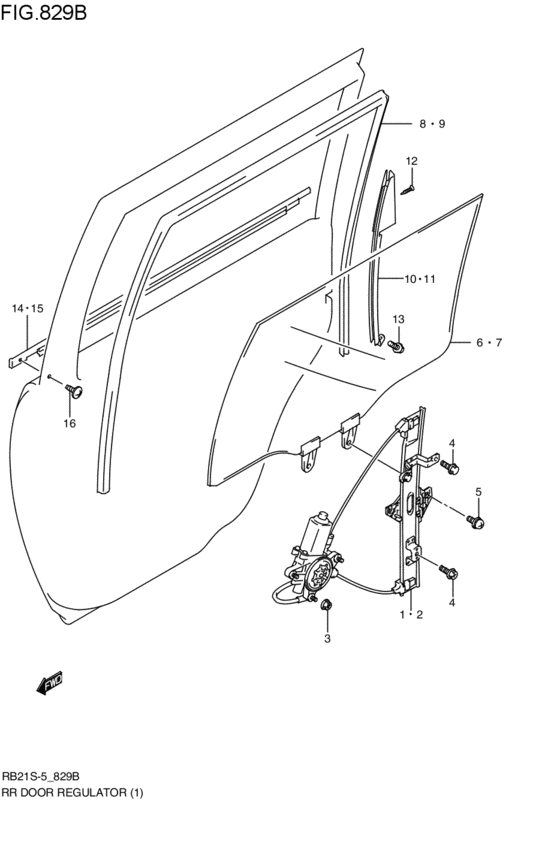

rear door regulator (5DR; 2004-07-01~2006-01-01) Diagram Suzuki AERIO
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-54GA0-000 REGULATOR ASSY,RR WINDOW,R5DR; 2004-07-01~2006-01-01 |
83501-54GA0-000 |
US $298.08 |
||
|
2
|
2
83502-54GA0-000 REGULATOR ASSY,RR WINDOW,L5DR; 2004-07-01~2006-01-01 |
83502-54GA0-000 |
US $298.08 |
||
|
3
|
3
08361-15063-000
Nut
5DR; 2004-07-01~2006-01-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
3
|
3
08361-1506A-000 NUT5DR; 2004-07-01~2006-01-01 |
08361-1506A-000 |
from US $0.74 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 5DR; 2004-07-01~2006-01-01 |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
02112-76123-000
Screw
5DR; 2004-07-01~2006-01-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7612B-000 SCREW5DR; 2004-07-01~2006-01-01 |
02112-7612B-000 |
from US $0.96 |
||
|
6
|
6
84503-54G20-000 GLASS,RR DR WINDOW,RCENTRAL; 5DR; 2004-07-01~2006-01-01 |
84503-54G20-000 |
US $184 |
||
|
7
|
7
84504-54G20-000
GLASS,RR DR WINDOW,L
CENTRAL; 5DR; 2004-07-01~2006-01-01 |
84504-54G20-000 |
— | ||
|
8
|
8
83671-54G00-000 RUN,RR DOOR GLASS,R5DR; 2004-07-01~2006-01-01 |
83671-54G00-000 |
US $64.40 |
||
|
9
|
9
83675-54G00-000 RUN,RR DOOR GLASS,L5DR; 2004-07-01~2006-01-01 |
83675-54G00-000 |
US $64.40 |
||
|
10
|
10
81770-54G00-000 SASH,RR DOOR REAR,R5DR; 2004-07-01~2006-01-01 |
81770-54G00-000 |
US $39.38 |
||
|
11
|
11
81780-54G00-000 SASH,RR DOOR REAR,L5DR; 2004-07-01~2006-01-01 |
81780-54G00-000 |
US $39.38 |
||
|
12
|
12
03121-04123-000
スクリュ
5DR; 2004-07-01~2006-01-01 |
03121-04123-000 |
— | ||
| replacement | |||||
|
12
|
12
03121-0412A-000 SCREW5DR; 2004-07-01~2006-01-01 |
03121-0412A-000 |
US $7.70 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 5DR; 2004-07-01~2006-01-01 |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
83831-54G00-000 WEATHERSTRIP,RR DR OUT,R5DR; 2004-07-01~2006-01-01 |
83831-54G00-000 |
US $52.80 |
||
|
15
|
15
83841-54G00-000 WEATHERSTRIP,RR DR OUT,L5DR; 2004-07-01~2006-01-01 |
83841-54G00-000 |
US $52.80 |
||
|
16
|
16
09136-05059-000 SCREW(5X12)5DR; 2004-07-01~2006-01-01 |
09136-05059-000 |
US $15.50 |
||
