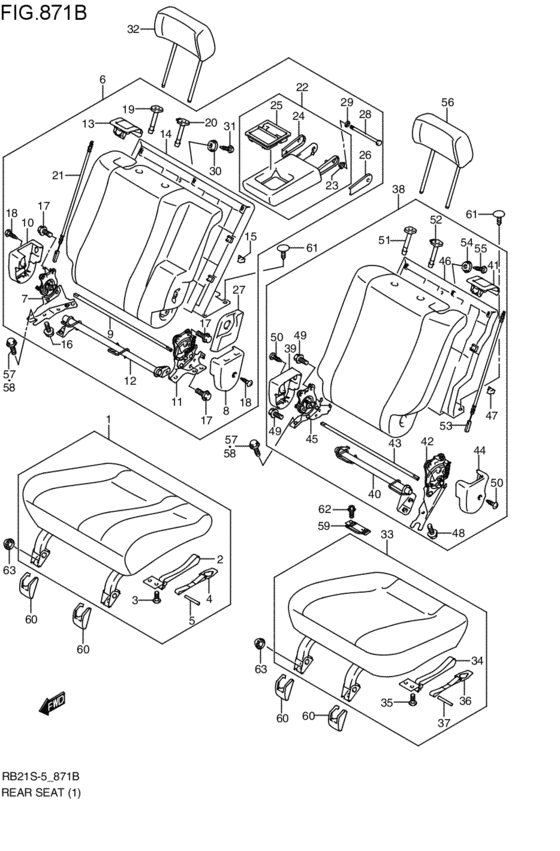

rear seat (5DR; 2004-07-01~2006-01-01) Diagram Suzuki AERIO
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-54G10-AGT
Cushion assy,rr,r
ブラック/グレー; 5DR; 2004-07-01~2004-07-01 |
87101-54G10-AGT |
— | ||
|
1
|
1
87101-54G20-AGT
Cushion assy,rr,r
5DR; 2004-07-01~2006-01-01 |
87101-54G20-AGT |
— | ||
|
2
|
2
87460-54G01-000 LOCK,RR CUSH5DR; 2004-07-01~2006-01-01 |
87460-54G01-000 |
US $37.90 |
||
|
3
|
3
03242-06163-000
Screw
5DR; 2004-07-01~2006-01-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0616C-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0616C-000 |
from US $0.76 |
||
|
4
|
4
87420-54G01-000 BAND,RR STOPPER5DR; 2004-07-01~2006-01-01 |
87420-54G01-000 |
US $17.30 |
||
|
5
|
5
87423-65DA0-000 PIN,REAR STOPPER BAND5DR; 2004-07-01~2006-01-01 |
87423-65DA0-000 |
US $1.60 |
||
|
6
|
6
87301-59J51-AGT
バックアッシ,リヤ,ライト
ブラック/グレー; 5DR; 2004-07-01~2006-01-01 |
87301-59J51-AGT |
— | ||
|
7
|
7
87210-54G00-000
Reclining assy,rr outside,r
5DR; 2004-07-01~2006-01-01 |
87210-54G00-000 |
— | ||
|
8
|
8
87241-54G01-P4Z COVER,RECL UPPER INS,Rグレ-; 5DR; 2004-07-01~2006-01-01 |
87241-54G01-P4Z |
US $10.67 |
||
|
9
|
9
87251-54G00-000
ROD,RCLNG,R
5DR; 2004-07-01~2006-01-01 |
87251-54G00-000 |
— | ||
|
10
|
10
87221-54G00-P4Z COVER,RECL UPPER OUT,Rグレ-; 5DR; 2004-07-01~2006-01-01 |
87221-54G00-P4Z |
US $10.67 |
||
|
11
|
11
87230-54G10-000
Reclining assy,rr inside,r
5DR; 2004-07-01~2006-01-01 |
87230-54G10-000 |
— | ||
|
12
|
12
87260-54G00-000
BRACKET,CHILD ANCHORAGE,R
5DR; 2004-07-01~2006-01-01 |
87260-54G00-000 |
— | ||
|
13
|
13
87290-54G00-P4Z KNOB,RECL RELEASEグレ-; 5DR; 2004-07-01~2006-01-01 |
87290-54G00-P4Z |
US $19.32 |
||
|
14
|
14
87390-54G00-P9S
BOARD,RR BACK,R
グレ-; 5DR; 2004-07-01~2006-01-01 |
87390-54G00-P9S |
— | ||
|
15
|
15
09409-06324-000 CLIP5DR; 2004-07-01~2006-01-01 |
09409-06324-000 |
from US $1.12 |
||
|
16
|
16
09119-10071-000 BOLT5DR; 2004-07-01~2006-01-01 |
09119-10071-000 |
US $21 |
||
|
17
|
17
01550-10203-000
Bolt
5DR; 2004-07-01~2006-01-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1020A-000 BOLTBolt, bal sprocket 5DR; 2004-07-01~2006-01-01 |
01550-1020A-000 |
from US $0.96 |
||
|
18
|
18
03242-05123-000
Screw, inner cover
5DR; 2004-07-01~2006-01-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; 5DR; 2004-07-01~2006-01-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
20
|
20
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; 5DR; 2004-07-01~2006-01-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
21
|
21
87294-54G00-000
Cable,rclng release
5DR; 2004-07-01~2006-01-01 |
87294-54G00-000 |
— | ||
|
22
|
22
87501-54G50-AGU
Armrest assy,rr back
ブラック/グレー; 5DR; 2004-07-01~2006-01-01 |
87501-54G50-AGU |
— | ||
|
23
|
23
85291-82C00-000 BUSH5DR; 2004-07-01~2006-01-01 |
85291-82C00-000 |
US $2.50 |
||
|
24
|
24
87562-54G50-P4Z
COVER,ARMREST STAY,INS
グレ-; 5DR; 2004-07-01~2006-01-01 |
87562-54G50-P4Z |
— | ||
|
25
|
25
87590-54G50-P4Z HOLDER ASSY,CUPグレ-; 5DR; 2004-07-01~2006-01-01 |
87590-54G50-P4Z |
US $38.27 |
||
|
26
|
26
87561-54G50-P4Z
COVER,ARMREST STAY,OUT
グレ-; 5DR; 2004-07-01~2006-01-01 |
87561-54G50-P4Z |
— | ||
|
27
|
27
87571-54G50-P4Z
COVER,ARMREST HINGE
グレ-; 5DR; 2004-07-01~2006-01-01 |
87571-54G50-P4Z |
— | ||
|
28
|
28
87572-54G50-000
Bolt,armrest
5DR; 2004-07-01~2006-01-01 |
87572-54G50-000 |
— | ||
|
29
|
29
08321-01103-000
Washer
5DR; 2004-07-01~2006-01-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
29
|
29
08321-0110B-000 WASHER,LOCKWasher, knuckle end 5DR; 2004-07-01~2006-01-01 |
08321-0110B-000 |
from US $0.80 |
||
|
29
|
29
08321-0110A-000 WASHER,LOCK5DR; 2004-07-01~2006-01-01 |
08321-0110A-000 |
from US $0.80 |
||
|
30
|
30
87429-65DA0-5PK GUIDE,STOPPER BANDブラック; 5DR; 2004-07-01~2006-01-01 |
87429-65DA0-5PK |
US $3.64 |
||
|
31
|
31
03242-05203-000
Screw, inner
5DR; 2004-07-01~2006-01-01 |
03242-05203-000 |
— | ||
| replacement | |||||
|
31
|
31
03241-0520A-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0520A-000 |
from US $0.80 |
||
|
32
|
32
86401-55G10-S8C
ヘッドレストレイントアッシ,リヤ(ブラック)
ブラック; 5DR; 2004-07-01~2006-01-01 |
86401-55G10-S8C |
— | ||
| replacement | |||||
|
32
|
32
86401-55G11-S8C
HEADRESTRAINT ASSY
ブラック; 5DR; 2004-07-01~2006-01-01 |
86401-55G11-S8C |
— | ||
|
33
|
33
87102-54G10-AGT
Cushion assy,rr,l
ブラック/グレー; 5DR; 2004-07-01~2004-07-01 |
87102-54G10-AGT |
— | ||
|
33
|
33
87102-54G20-AGT
Cushion assy,rr,l
ブラック/グレー; 5DR; 2004-07-01~2006-01-01 |
87102-54G20-AGT |
— | ||
|
34
|
34
87460-54G01-000 LOCK,RR CUSH5DR; 2004-07-01~2006-01-01 |
87460-54G01-000 |
US $37.90 |
||
|
35
|
35
03242-06163-000
Screw
5DR; 2004-07-01~2006-01-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
35
|
35
03241-0616C-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0616C-000 |
from US $0.76 |
||
|
36
|
36
87420-54G01-000 BAND,RR STOPPER5DR; 2004-07-01~2006-01-01 |
87420-54G01-000 |
US $17.30 |
||
|
37
|
37
87423-65DA0-000 PIN,REAR STOPPER BAND5DR; 2004-07-01~2006-01-01 |
87423-65DA0-000 |
US $1.60 |
||
|
38
|
38
87302-59J51-AGT
バックアッシ,リヤ,ライト
5DR; 2004-07-01~2006-01-01 |
87302-59J51-AGT |
— | ||
|
39
|
39
87741-54G01-P4Z COVER,RECL UPPER INS,Lグレ-; 5DR; 2004-07-01~2006-01-01 |
87741-54G01-P4Z |
US $10.67 |
||
|
40
|
40
87760-54G00-000
BRACKET,CHILD ANCHORAGE,L
5DR; 2004-07-01~2006-01-01 |
87760-54G00-000 |
— | ||
|
41
|
41
87290-54G00-P4Z KNOB,RECL RELEASEグレ-; 5DR; 2004-07-01~2006-01-01 |
87290-54G00-P4Z |
US $19.32 |
||
|
42
|
42
87710-54G00-000
Reclining assy,rr outside,l
5DR; 2004-07-01~2006-01-01 |
87710-54G00-000 |
— | ||
|
43
|
43
87751-54G00-000
ROD,RCLNG,L
5DR; 2004-07-01~2006-01-01 |
87751-54G00-000 |
— | ||
|
44
|
44
87721-54G00-P4Z COVER,RECL UPPER OUT,Lグレ-; 5DR; 2004-07-01~2006-01-01 |
87721-54G00-P4Z |
US $10.67 |
||
|
45
|
45
87730-54G10-000
Reclining assy,rr inside,l
5DR; 2004-07-01~2006-01-01 |
87730-54G10-000 |
— | ||
|
46
|
46
87890-54G00-P9S
Board comp,rr back,l
グレ-; 5DR; 2004-07-01~2006-01-01 |
87890-54G00-P9S |
— | ||
|
47
|
47
09409-06324-000 CLIP5DR; 2004-07-01~2006-01-01 |
09409-06324-000 |
from US $1.12 |
||
|
48
|
48
09119-10071-000 BOLT5DR; 2004-07-01~2006-01-01 |
09119-10071-000 |
US $21 |
||
|
49
|
49
01550-10203-000
Bolt
5DR; 2004-07-01~2006-01-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
49
|
49
01550-1020A-000 BOLTBolt, bal sprocket 5DR; 2004-07-01~2006-01-01 |
01550-1020A-000 |
from US $0.96 |
||
|
50
|
50
03242-05123-000
Screw, inner cover
5DR; 2004-07-01~2006-01-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
50
|
50
03241-0512A-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0512A-000 |
from US $0.68 |
||
|
51
|
51
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; 5DR; 2004-07-01~2006-01-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
52
|
52
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; 5DR; 2004-07-01~2006-01-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
53
|
53
87294-54G00-000
Cable,rclng release
5DR; 2004-07-01~2006-01-01 |
87294-54G00-000 |
— | ||
|
54
|
54
87429-65DA0-5PK GUIDE,STOPPER BANDブラック; 5DR; 2004-07-01~2006-01-01 |
87429-65DA0-5PK |
US $3.64 |
||
|
55
|
55
03242-05203-000
Screw, inner
5DR; 2004-07-01~2006-01-01 |
03242-05203-000 |
— | ||
| replacement | |||||
|
55
|
55
03241-0520A-000 SCREW5DR; 2004-07-01~2006-01-01 |
03241-0520A-000 |
from US $0.80 |
||
|
56
|
56
86401-55G10-S8C
ヘッドレストレイントアッシ,リヤ(ブラック)
ブラック; 5DR; 2004-07-01~2006-01-01 |
86401-55G10-S8C |
— | ||
| replacement | |||||
|
56
|
56
86401-55G11-S8C
HEADRESTRAINT ASSY
ブラック; 5DR; 2004-07-01~2006-01-01 |
86401-55G11-S8C |
— | ||
|
57
|
57
01551-10253-000
Bolt
5DR; 2004-07-01~2006-01-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
57
|
57
01551-1025A-000 Bolt5DR; 2004-07-01~2006-01-01 |
01551-1025A-000 |
US $1.12 |
||
|
58
|
58
01551-10403-000
ボルト
5DR; 2004-07-01~2006-01-01 |
01551-10403-000 |
— | ||
| replacement | |||||
|
58
|
58
01551-1040A-000 Bolt5DR; 2004-07-01~2006-01-01 |
01551-1040A-000 |
US $19.50 |
||
|
59
|
59
87440-54G00-000 STRIKER,RR CUSHION5DR; 2004-07-01~2006-01-01 |
87440-54G00-000 |
US $9.16 |
||
|
60
|
60
87491-54G10-000 COVER,RR CUSHION HINGE5DR; 2004-07-01~2006-01-01 |
87491-54G10-000 |
US $6.40 |
||
|
61
|
61
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2004-07-01~2006-01-01 |
09409-10302-P4Z |
US $12.90 |
||
|
62
|
62
02162-06163-000
Screw
5DR; 2004-07-01~2006-01-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
62
|
62
02162-0616B-000 SCREWBolt, adjust 5DR; 2004-07-01~2006-01-01 |
02162-0616B-000 |
from US $0.80 |
||
|
63
|
63
08316-10103-000
Nut
5DR; 2004-07-01~2006-01-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
63
|
63
08316-1010B-000 NUT5DR; 2004-07-01~2006-01-01 |
08316-1010B-000 |
from US $0.80 |
||
