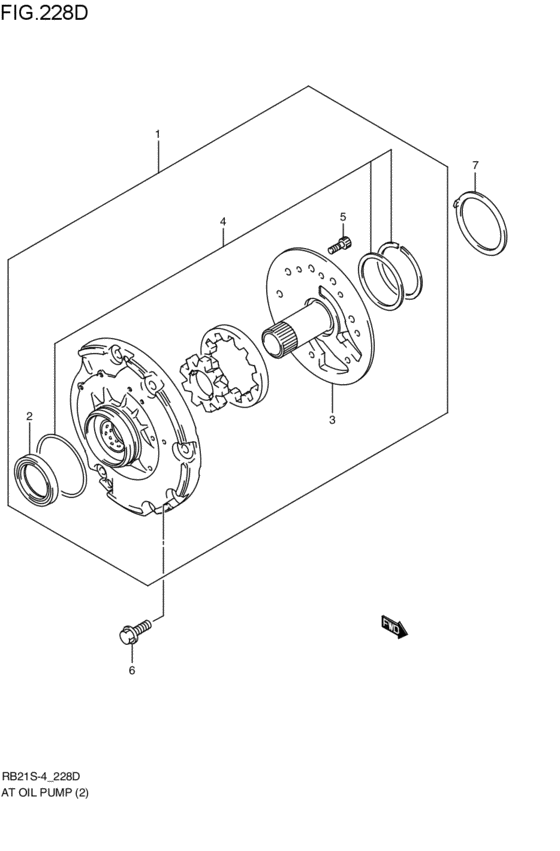

at - oil pump (M18A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-60GT1-000
Pump set,oil
M18A; 2003-10-01~2004-08-01 |
22800-60GT1-000 |
— | ||
| replacement | |||||
|
1
|
1
22800-60GT2-000 PUMP SET,OILM18A; 2003-10-01~2004-08-01 |
22800-60GT2-000 |
US $1,338.16 |
||
|
2
|
2
22881-60G11-000 SEAL,OIL PUMP OILM18A; 2003-10-01~2004-08-01 |
22881-60G11-000 |
from US $21.71 |
||
|
3
|
3
22820-60G10-000
COVER,OIL PUMP
M18A; 2003-10-01~2004-08-01 |
22820-60G10-000 |
— | ||
| replacement | |||||
|
3
|
3
22820-60G11-000 COVER,OIL PUMPM18A; 2003-10-01~2004-08-01 |
22820-60G11-000 |
US $658.24 |
||
|
4
|
4
22860-60GT1-000 RING SET,OIL PUMP SEALM18A; 2003-10-01~2004-08-01 |
22860-60GT1-000 |
US $46.37 |
||
|
5
|
5
22892-60G10-000 BOLT,OIL PUMP COVERM18A; 2003-10-01~2004-08-01 |
22892-60G10-000 |
US $3.75 |
||
|
6
|
6
22893-60G10-000 BoltM18A; 2003-10-01~2004-08-01 |
22893-60G10-000 |
US $4.27 |
||
|
7
|
7
26824-60G10-000 WASHER,REV CL THRUST FRM18A; 2003-10-01~2004-08-01 |
26824-60G10-000 |
US $5.96 |
||
