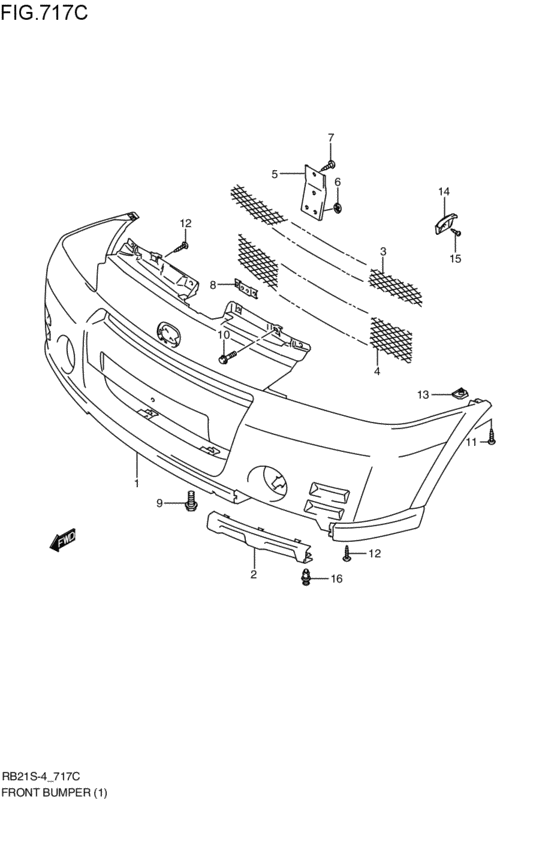

front bumper (M18A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-54G51-799 BUMPER,FR(PRIMARY)プライマリ-; M18A; 2003-10-01~2004-08-01 |
71711-54G51-799 |
US $559.68 |
||
|
2
|
2
71712-54G50-ZJ3 CAP,FR BUMPERブラック; M18A; 2003-10-01~2004-08-01 |
71712-54G50-ZJ3 |
US $112.48 |
||
|
2
|
2
71712-54G50-ZY4
キャップ,フロントバンパ(グレー)
グレ-; M18A; 2003-10-01~2004-08-01 |
71712-54G50-ZY4 |
— | ||
| replacement | |||||
|
2
|
2
71712-54G50-799
CAP,FR BUMPER
グレ-; M18A; 2003-10-01~2004-08-01 |
71712-54G50-799 |
— | ||
|
2
|
2
71712-54G50-Z2S
CAP,FR BUMPER
シルバ-; M18A; 2003-10-01~2004-08-01 |
71712-54G50-Z2S |
— | ||
|
2
|
2
71712-54G50-Z2U
Cap,front bumper
ブル-; M18A; 2003-10-01~2004-08-01 |
71712-54G50-Z2U |
— | ||
| replacement | |||||
|
2
|
2
71712-54G50-799
CAP,FR BUMPER
ブル-; M18A; 2003-10-01~2004-08-01 |
71712-54G50-799 |
— | ||
|
2
|
2
71712-54G50-Z7T
CAP,FR BUMPER
パールホワイト; M18A; 2003-10-01~2004-08-01 |
71712-54G50-Z7T |
— | ||
|
3
|
3
71713-54G51-ZM2 NET,FR BUMPER UPRシルバ-; M18A; 2003-10-01~2004-08-01 |
71713-54G51-ZM2 |
US $65.14 |
||
|
4
|
4
71714-54G51-ZM2 NET,FR BUMPER LWRシルバ-; M18A; 2003-10-01~2004-08-01 |
71714-54G51-ZM2 |
US $76.54 |
||
|
5
|
5
71716-54G50-000 BRACE,FR BUMPERM18A; 2003-10-01~2004-08-01 |
71716-54G50-000 |
US $7.69 |
||
|
6
|
6
09148-04037-000 NUTM18A; 2003-10-01~2004-08-01 |
09148-04037-000 |
US $19.10 |
||
|
7
|
7
03541-05163-000
Screw
M18A; 2003-10-01~2004-08-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREWM18A; 2003-10-01~2004-08-01 |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
71771-60A00-000 RETAINER,FR LICENSE PLATEM18A; 2003-10-01~2004-08-01 |
71771-60A00-000 |
US $4.16 |
||
|
9
|
9
09111-06061-000
Bolt,6x16.5
M18A; 2003-10-01~2004-08-01 |
09111-06061-000 |
— | ||
| replacement | |||||
|
9
|
9
09111-06094-000 BOLT(6X16.5)M18A; 2003-10-01~2004-08-01 |
09111-06094-000 |
from US $0.96 |
||
|
10
|
10
09103-06240-000 BOLT(6X16)M18A; 2003-10-01~2004-08-01 |
09103-06240-000 |
from US $1.04 |
||
|
11
|
11
09136-05057-000
Screw, fr turnsignal (5x20)
M18A; 2003-10-01~2004-08-01 |
09136-05057-000 |
— | ||
| replacement | |||||
|
11
|
11
09136-05068-000 SCREW(5X20)M18A; 2003-10-01~2004-08-01 |
09136-05068-000 |
from US $0.96 |
||
|
12
|
12
09136-05057-000
Screw, fr turnsignal (5x20)
M18A; 2003-10-01~2004-08-01 |
09136-05057-000 |
— | ||
| replacement | |||||
|
12
|
12
09136-05068-000 SCREW(5X20)M18A; 2003-10-01~2004-08-01 |
09136-05068-000 |
from US $0.96 |
||
|
13
|
13
09148-05028-000 NUTM18A; 2003-10-01~2004-08-01 |
09148-05028-000 |
US $1.28 |
||
|
14
|
14
71851-60G00-000 HOLDER,BUMPER SIDEM18A; 2003-10-01~2004-08-01 |
71851-60G00-000 |
from US $5.69 |
||
|
15
|
15
03512-05123-000
Screw
M18A; 2003-10-01~2004-08-01 |
03512-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03511-0512A-000 SCREWM18A; 2003-10-01~2004-08-01 |
03511-0512A-000 |
from US $0.80 |
||
|
16
|
16
09409-08338-000 CLIPM18A; 2003-10-01~2004-08-01 |
09409-08338-000 |
US $1.82 |
||
