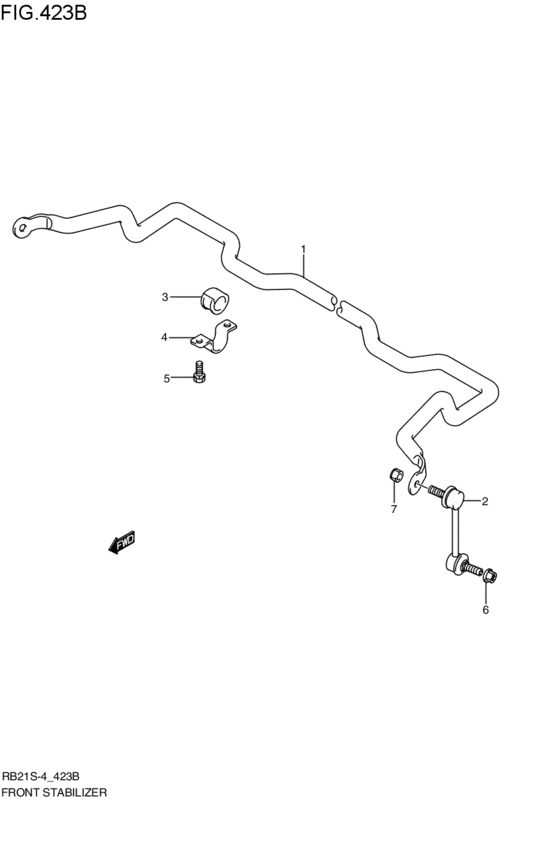

front stabilizer (2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-59J00-000 BAR,FR STABILIZER2003-10-01~2004-08-01 |
42311-59J00-000 |
US $198.72 |
||
|
2
|
2
42420-59J00-000 JOINT ASSY,STABILIZER BAR2003-10-01~2004-08-01 |
42420-59J00-000 |
from US $56.67 |
||
|
3
|
3
42431-64B00-000
マウント,スタビライザバー
2003-10-01~2004-08-01 |
42431-64B00-000 |
— | ||
| replacements | |||||
|
3
|
3
42431-59J21-000 MOUNT,STAB BAR2003-10-01~2004-08-01 |
42431-59J21-000 |
from US $24.89 |
||
|
3
|
3
42431-59J00-000 MOUNT,STAB BAR2003-10-01~2004-08-01 |
42431-59J00-000 |
from US $5.20 |
||
|
4
|
4
42441-60G01-000
ブラケット,スタビライザバー
2003-10-01~2004-08-01 |
42441-60G01-000 |
— | ||
| replacement | |||||
|
4
|
4
42441-60G02-000 BRACKET,STABILIZER MOUNT2003-10-01~2004-08-01 |
42441-60G02-000 |
US $8.64 |
||
|
5
|
5
09117-08098-000 BOLT(8X20)2003-10-01~2004-08-01 |
09117-08098-000 |
US $15.80 |
||
|
6
|
6
09159-08083-000 NUT2003-10-01~2004-08-01 |
09159-08083-000 |
from US $1.28 |
||
|
7
|
7
09159-10056-000 NUT2003-10-01~2004-08-01 |
09159-10056-000 |
US $1.12 |
||
