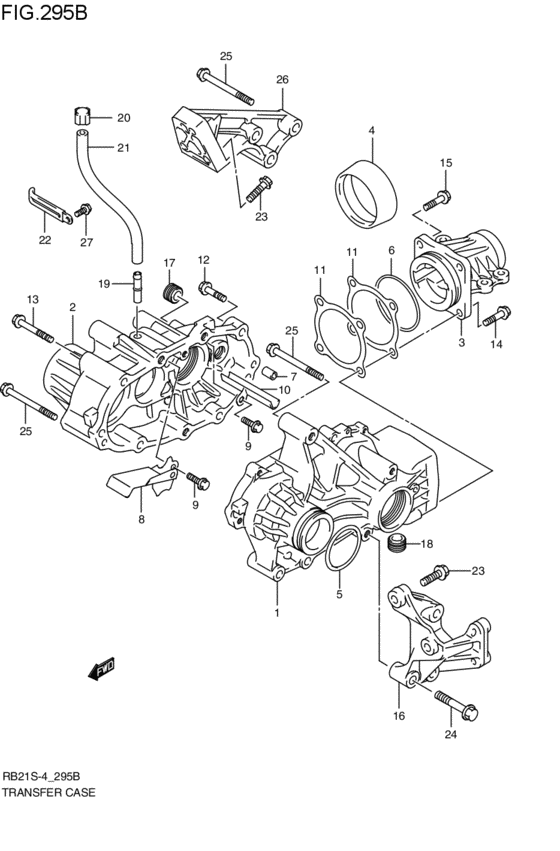

transfer case (4WD; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-54G11-000
CASE,T/F,L
4WD:M18A; 2003-10-01~2004-08-01 |
29511-54G11-000 |
— | ||
|
2
|
2
29521-55G10-000
CASE,T/F,R
4WD; 2003-10-01~2004-08-01 |
29521-55G10-000 |
— | ||
|
3
|
3
29271-60G90-000
RETAINER,T/F OUTPUT
4WD:M18A; 2003-10-01~2004-08-01 |
29271-60G90-000 |
— | ||
|
4
|
4
29272-74C00-000
Cover,t/f output retainer
4WD; 2003-10-01~2004-08-01 |
29272-74C00-000 |
— | ||
|
5
|
5
29512-60G90-000
O-RING
4WD; 2003-10-01~2004-08-01 |
29512-60G90-000 |
— | ||
|
6
|
6
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing 4WD; 2003-10-01~2004-08-01 |
09280-76008-000 |
from US $5.15 |
||
|
7
|
7
04211-09189-000 PIN4WD; 2003-10-01~2004-08-01 |
04211-09189-000 |
from US $0.91 |
||
|
8
|
8
29191-60G90-000
PLATE,OIL PROTECT
4WD; 2003-10-01~2004-08-01 |
29191-60G90-000 |
— | ||
|
9
|
9
29154-60G90-000
Bolt,adjuster plate
4WD; 2003-10-01~2004-08-01 |
29154-60G90-000 |
— | ||
|
10
|
10
29120-60G90-000
RECEIVER,T/F OIL
4WD; 2003-10-01~2004-08-01 |
29120-60G90-000 |
— | ||
|
11
|
11
29261-74B03-000 SHIM,T/F RETAINER T:0.604WD; 2003-10-01~2004-08-01 |
29261-74B03-000 |
US $12.14 |
||
|
11
|
11
29261-74B23-000 SHIM,T/F RETAINER T:0.664WD; 2003-10-01~2004-08-01 |
29261-74B23-000 |
US $12.14 |
||
|
11
|
11
29261-74B43-000 SHIM,T/F RETAINER T:0.724WD; 2003-10-01~2004-08-01 |
29261-74B43-000 |
US $12.14 |
||
|
11
|
11
29261-74B61-000 SHIM,T/F RETAINER T:0.784WD; 2003-10-01~2004-08-01 |
29261-74B61-000 |
US $12.14 |
||
|
11
|
11
29261-74B81-000 SHIM,T/F RETAINER T:0.844WD; 2003-10-01~2004-08-01 |
29261-74B81-000 |
US $12.14 |
||
|
11
|
11
29261-75B02-000 SHIM,T/F RETAINER T:0.304WD; 2003-10-01~2004-08-01 |
29261-75B02-000 |
US $12.14 |
||
|
12
|
12
01550-08803-000
Bolt (8x80)
4WD; 2003-10-01~2004-08-01 |
01550-08803-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0880B-000 BoltBolt, muffler bracket & stand 4WD; 2003-10-01~2004-08-01 |
01550-0880B-000 |
from US $3.05 |
||
|
12
|
12
01550-0880A-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-0880A-000 |
from US $1.76 |
||
|
13
|
13
01550-08403-000
Bolt
4WD; 2003-10-01~2004-08-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0840B-000 Bolt4WD; 2003-10-01~2004-08-01 |
01550-0840B-000 |
from US $1.12 |
||
|
13
|
13
01550-0840A-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-0840A-000 |
from US $1.12 |
||
|
14
|
14
01550-10303-000
Bolt
4WD; 2003-10-01~2004-08-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-1030B-000 BOLTBolt, axle housing rear 4WD; 2003-10-01~2004-08-01 |
01550-1030B-000 |
from US $5.07 |
||
|
14
|
14
01550-1030A-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-1030A-000 |
from US $1.12 |
||
|
15
|
15
29273-60G90-000
Bolt
4WD; 2003-10-01~2004-08-01 |
29273-60G90-000 |
— | ||
|
16
|
16
29531-54G30-000
STIFFENER,T/F CASE
4WD:M18A; 2003-10-01~2004-08-01 |
29531-54G30-000 |
— | ||
|
17
|
17
29945-80051-000 PLUG,OIL FILLER4WD; 2003-10-01~2004-08-01 |
29945-80051-000 |
from US $2.24 |
||
|
18
|
18
29946-54G10-000 PLUG4WD; 2003-10-01~2004-08-01 |
29946-54G10-000 |
US $5.37 |
||
|
19
|
19
09364-08006-000 UNION4WD; 2003-10-01~2004-08-01 |
09364-08006-000 |
from US $3.60 |
||
|
20
|
20
27991-65D01-000 PLUG,BREATHER4WD; 2003-10-01~2004-08-01 |
27991-65D01-000 |
from US $1.92 |
||
|
21
|
21
09352-70113-600
HOSE(7X11X600)
L:600>320; 4WD; 2003-10-01~2004-08-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
21
|
21
09352-70119-600 Hose(7X11X600)L:600>320; 4WD; 2003-10-01~2004-08-01 |
09352-70119-600 |
from US $4.64 |
||
|
22
|
22
09404-06433-000
CLAMP(L:80)
4WD; 2003-10-01~2004-08-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06434-000
CLAMP(L:80 T:1.0)
4WD; 2003-10-01~2004-08-01 |
09404-06434-000 |
— | ||
|
22
|
22
09404-06436-000 Clamp(L:80)4WD; 2003-10-01~2004-08-01 |
09404-06436-000 |
from US $2.13 |
||
|
22
|
22
09404-06036-000 Clamp(L:80)4WD; 2003-10-01~2004-08-01 |
09404-06036-000 |
from US $1.82 |
||
|
23
|
23
01550-10403-000
Bolt
4WD; 2003-10-01~2004-08-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-1040B-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-1040B-000 |
from US $3.74 |
||
|
23
|
23
01550-1040A-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-1040A-000 |
from US $1.12 |
||
|
24
|
24
01550-10553-000
Bolt
4WD; 2003-10-01~2004-08-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1055B-000 Bolt4WD; 2003-10-01~2004-08-01 |
01550-1055B-000 |
from US $1.44 |
||
|
25
|
25
01550-10703-000
ボルト
4WD; 2003-10-01~2004-08-01 |
01550-10703-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1070A-000 Bolt4WD; 2003-10-01~2004-08-01 |
01550-1070A-000 |
from US $1.60 |
||
|
26
|
26
29532-54G10-000
STIFFENER,ENG&T/F
4WD:M18A; 2003-10-01~2004-08-01 |
29532-54G10-000 |
— | ||
|
27
|
27
01550-06123-000
Bolt
4WD; 2003-10-01~2004-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BOLTBolt, clamp 4WD; 2003-10-01~2004-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BOLT4WD; 2003-10-01~2004-08-01 |
01550-0612A-000 |
from US $0.76 |
||
