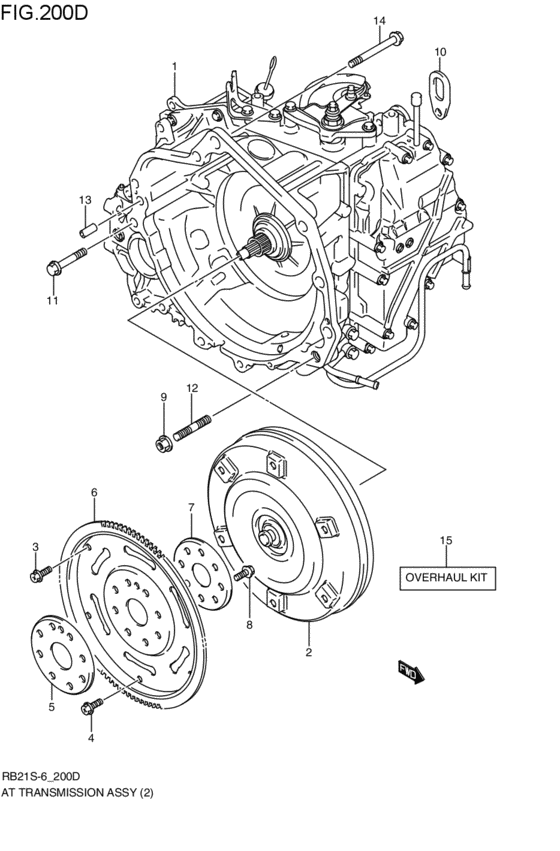

at - transmission assy (M18A; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-59JL0-000
トランスミッションアッシ,オートマチック
M18A:4WD; 2005-12-01~2007-05-01 |
20002-59JL0-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-59JL3-000
トランスミッションアッシ,オートマチック
M18A:4WD; 2005-12-01~2007-05-01 |
20002-59JL3-000 |
— | ||
|
1
|
1
20002-59JL0-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; M18A:4WD; 2005-12-01~2007-05-01 |
20002-59JL0-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-59JL3-111
トランスミッションアッシ,オートマチック
リビルト; M18A:4WD; 2005-12-01~2007-05-01 |
20002-59JL3-111 |
— | ||
|
2
|
2
22710-54GL0-000
コンバータ,トルク
M18A:4WD; 2005-12-01~2007-05-01 |
22710-54GL0-000 |
— | ||
|
3
|
3
09103-08516-000 BOLT(8X9.5)M18A; 2005-12-01~2007-05-01 |
09103-08516-000 |
US $1.12 |
||
|
4
|
4
09103-08517-000 BOLT(8X9.5)M18A; 2005-12-01~2007-05-01 |
09103-08517-000 |
US $19.50 |
||
|
5
|
5
22611-69G10-000 FLANGE,T/C DRIVE PLATE FRM18A; 2005-12-01~2007-05-01 |
22611-69G10-000 |
US $37.17 |
||
|
6
|
6
22620-69G10-000 PLATE,TC DRIVEM18A; 2005-12-01~2007-05-01 |
22620-69G10-000 |
US $163.20 |
||
|
7
|
7
22631-69G10-000 PLATE,TC DRIVE REARM18A; 2005-12-01~2007-05-01 |
22631-69G10-000 |
US $7.95 |
||
|
8
|
8
09103-10305-000 BOLT(10X18.5)M18A; 2005-12-01~2007-05-01 |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
8
|
8
09100-10275-000 BOLT(10X18.5)M18A; 2005-12-01~2007-05-01 |
09100-10275-000 |
US $1.44 |
||
|
9
|
9
08316-1012A-000 NUTM18A; 2005-12-01~2007-05-01 |
08316-1012A-000 |
from US $0.96 |
||
|
10
|
10
11851-62B00-000 HOOKM18A; 2005-12-01~2007-05-01 |
11851-62B00-000 |
US $5.02 |
||
|
11
|
11
09103-12060-000 BOLT(12X50)M18A; 2005-12-01~2007-05-01 |
09103-12060-000 |
US $27.60 |
||
|
12
|
12
09108-12012-000 BOLT,STUDM18A; 2005-12-01~2007-05-01 |
09108-12012-000 |
US $2.72 |
||
|
13
|
13
09202-08004-000 PIN(8X23)M18A; 2005-12-01~2007-05-01 |
09202-08004-000 |
US $1.76 |
||
|
14
|
14
01550-1255A-000 BoltM18A; 2005-12-01~2007-05-01 |
01550-1255A-000 |
US $21.70 |
||
|
15
|
15
24700-64GT0-000 OVERHAUL KIT,ATイラスト ナシ; M18A; 2005-12-01~2007-05-01 |
24700-64GT0-000 |
US $693.44 |
||
