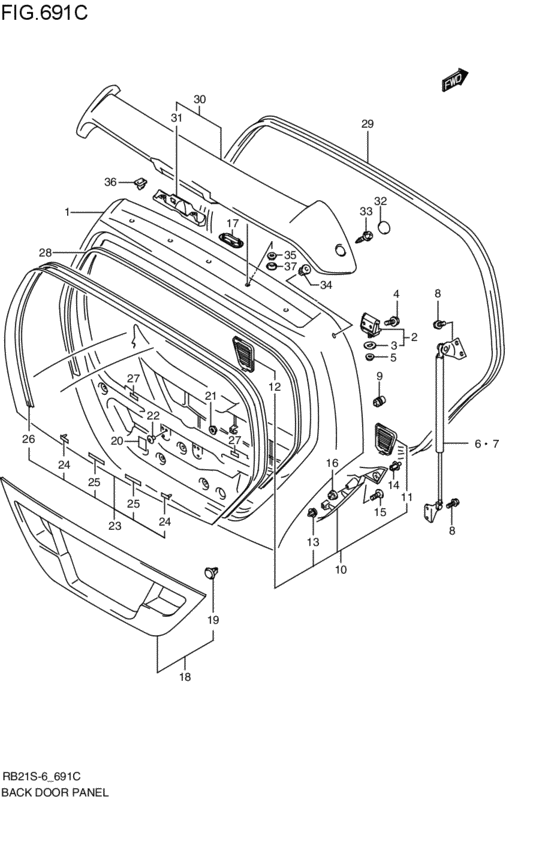

back door panel (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-54G52-000
パネル,バックドア
5DR; 2005-12-01~2007-05-01 |
69100-54G52-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-54833-000 PANEL,BACK DOOR5DR; 2005-12-01~2007-05-01 |
69100-54833-000 |
US $570.24 |
||
|
2
|
2
69510-54G00-000
Hinge,door
5DR; 2005-12-01~2007-05-01 |
69510-54G00-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-54G10-000 HINGE,DOOR5DR; 2005-12-01~2007-05-01 |
69510-54G10-000 |
US $29.81 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG5DR; 2005-12-01~2007-05-01 |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
01550-0612A-000 BOLT5DR; 2005-12-01~2007-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
08361-25083-000
Nut
5DR; 2005-12-01~2007-05-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT5DR; 2005-12-01~2007-05-01 |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-54G00-000
バランサ,バックドア,ライト
5DR; 2005-12-01~2007-05-01 |
81850-54G00-000 |
— | ||
| replacement | |||||
|
6
|
6
81850-54G01-000 BALANCER,BACK DR,R5DR; 2005-12-01~2007-05-01 |
81850-54G01-000 |
US $177.84 |
||
|
7
|
7
81860-54G00-000
バランサ,バックドア,レフト
5DR; 2005-12-01~2007-05-01 |
81860-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
81860-54G01-000 BALANCER,BACK DR,L5DR; 2005-12-01~2007-05-01 |
81860-54G01-000 |
US $177.84 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 5DR; 2005-12-01~2007-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
82683-60B10-000 CUSHION5DR; 2005-12-01~2007-05-01 |
82683-60B10-000 |
US $1.92 |
||
|
10
|
10
83770-54G00-P4Z TRIM,BACK DOORグレ-; 5DR; 2005-12-01~2007-05-01 |
83770-54G00-P4Z |
US $115.55 |
||
|
11
|
11
83772-54G00-P4Z CAP,BACK DR TRIM,Rグレ-; 5DR; 2005-12-01~2007-05-01 |
83772-54G00-P4Z |
US $5.37 |
||
|
12
|
12
83773-54G00-P4Z CAP,BACK DR TRIM,Lグレ-; 5DR; 2005-12-01~2007-05-01 |
83773-54G00-P4Z |
US $7.30 |
||
|
13
|
13
09409-08331-000 CLIP5DR; 2005-12-01~2007-05-01 |
09409-08331-000 |
US $1.28 |
||
|
14
|
14
09409-07308-P4Z CLIP(GRAY)グレ-; 5DR; 2005-12-01~2007-05-01 |
09409-07308-P4Z |
US $1.76 |
||
|
15
|
15
03141-0616A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03141-0616A-000 |
from US $0.76 |
||
|
16
|
16
09148-06007-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-06007-000 |
US $0.91 |
||
|
17
|
17
83917-82010-5PK CAP,BACK DR HOLEブラック; 5DR; 2005-12-01~2007-05-01 |
83917-82010-5PK |
US $1.60 |
||
|
18
|
18
83940-54G00-Z7T
GARNISH,BACK DR LIC
ホワイト; 5DR; 2005-12-01~2007-05-01 |
83940-54G00-Z7T |
— | ||
|
18
|
18
83940-54G00-ZJ3
GARNISH,BACK DR LIC
ブラック; 5DR; 2005-12-01~2007-05-01 |
83940-54G00-ZJ3 |
— | ||
|
18
|
18
83940-54G00-ZY4
GARNISH,BACK DR LIC
グレ-; 5DR; 2005-12-01~2007-05-01 |
83940-54G00-ZY4 |
— | ||
|
18
|
18
83940-54G00-Z2S GARNISH,BACK DR LICシルバ-; 5DR; 2005-12-01~2007-05-01 |
83940-54G00-Z2S |
US $788.48 |
||
|
19
|
19
77259-71B00-000 CLIP5DR; 2005-12-01~2007-05-01 |
77259-71B00-000 |
US $2.08 |
||
|
20
|
20
77151-82000-000
FILM
5DR; 2005-12-01~2007-05-01 |
77151-82000-000 |
— | ||
| replacements | |||||
|
20
|
20
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 5DR; 2005-12-01~2007-05-01 |
84761-50X50-000 |
US $6.72 |
||
|
20
|
20
77151-82010-000 Seal5DR; 2005-12-01~2007-05-01 |
77151-82010-000 |
US $1.44 |
||
|
21
|
21
08316-1006A-000 NUT5DR; 2005-12-01~2007-05-01 |
08316-1006A-000 |
from US $0.80 |
||
|
22
|
22
09148-05035-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-05035-000 |
US $12.90 |
||
|
23
|
23
84570-54G10-000 GLASS,BACK DR WINDOWCENTRAL; 5DR; 2005-12-01~2007-05-01 |
84570-54G10-000 |
US $415.36 |
||
|
24
|
24
84572-74G00-000 MALE,GLASS FASTENER NO.15DR; 2005-12-01~2007-05-01 |
84572-74G00-000 |
US $3.79 |
||
|
25
|
25
84617-76F00-000 SPACER,WINDSHIELD GLASS5DR; 2005-12-01~2007-05-01 |
84617-76F00-000 |
US $3.68 |
||
|
26
|
26
84623-54G00-000 MOLDING,BACK WDO5DR; 2005-12-01~2007-05-01 |
84623-54G00-000 |
US $40.11 |
||
|
27
|
27
84515-65D00-000 FEMALE,GLASS FASTENER NO.25DR; 2005-12-01~2007-05-01 |
84515-65D00-000 |
US $3.75 |
||
|
28
|
28
84627-61G00-000 TRIM,BACK DOOR WINDOW5DR; 2005-12-01~2007-05-01 |
84627-61G00-000 |
US $50.42 |
||
|
29
|
29
84681-54G00-000 WEATHERSTRIP,BACK DR OPNG5DR; 2005-12-01~2007-05-01 |
84681-54G00-000 |
US $75.44 |
||
|
30
|
30
83980-54G50-ZJ3
SPOILER,BACK DOOR
ブラック; 5DR; 2005-12-01~2007-05-01 |
83980-54G50-ZJ3 |
— | ||
|
30
|
30
83980-54G50-ZY4
SPOILER,BACK DOOR
グレ-; 5DR; 2005-12-01~2007-05-01 |
83980-54G50-ZY4 |
— | ||
|
30
|
30
83980-54G50-Z2S
SPOILER,BACK DOOR
シルバ-; 5DR; 2005-12-01~2007-05-01 |
83980-54G50-Z2S |
— | ||
|
30
|
30
83980-54G50-Z7T
SPOILER,BACK DOOR
ホワイト; 5DR; 2005-12-01~2007-05-01 |
83980-54G50-Z7T |
— | ||
|
31
|
31
83982-54G00-ZJ3
COVER,BACK DR SPOILER LAMP
ブラック; 5DR; 2005-12-01~2007-05-01 |
83982-54G00-ZJ3 |
— | ||
|
31
|
31
83982-54G00-ZY4
COVER,BACK DR SPOILER LAMP
グレ-; 5DR; 2005-12-01~2007-05-01 |
83982-54G00-ZY4 |
— | ||
|
31
|
31
83982-54G00-Z2S
COVER,BACK DR SPOILER LAMP
シルバ-; 5DR; 2005-12-01~2007-05-01 |
83982-54G00-Z2S |
— | ||
|
31
|
31
83982-54G00-Z7T
COVER,BACK DR SPOILER LAMP
ホワイト; 5DR; 2005-12-01~2007-05-01 |
83982-54G00-Z7T |
— | ||
|
32
|
32
83991-61G00-ZJ3
CAP,BACK DR SPOILER
ブラック; 5DR; 2005-12-01~2007-05-01 |
83991-61G00-ZJ3 |
— | ||
| replacement | |||||
|
32
|
32
83991-61G00-000 CAP,BACK DR SPOILER(NON PAINT)ブラック; 5DR; 2005-12-01~2007-05-01 |
83991-61G00-000 |
US $10.24 |
||
|
32
|
32
83991-61G00-ZY4 CAP,BACK DR SPOILERグレ-; 5DR; 2005-12-01~2007-05-01 |
83991-61G00-ZY4 |
US $10.67 |
||
|
32
|
32
83991-61G00-Z2S CAP,BACK DR SPOILERシルバ-; 5DR; 2005-12-01~2007-05-01 |
83991-61G00-Z2S |
US $10.67 |
||
|
32
|
32
83991-61G00-Z7T CAP,BACK DR SPOILERホワイト; 5DR; 2005-12-01~2007-05-01 |
83991-61G00-Z7T |
US $12.14 |
||
|
33
|
33
09132-06010-000 SCREW(6X16)5DR; 2005-12-01~2007-05-01 |
09132-06010-000 |
US $12.90 |
||
|
34
|
34
09148-06007-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-06007-000 |
US $0.91 |
||
|
35
|
35
08316-1006A-000 NUT5DR; 2005-12-01~2007-05-01 |
08316-1006A-000 |
from US $0.80 |
||
|
36
|
36
09410-00076-000 CLIP5DR; 2005-12-01~2007-05-01 |
09410-00076-000 |
US $2.24 |
||
|
37
|
37
09250-20023-000 CAP(OD:25.8)5DR; 2005-12-01~2007-05-01 |
09250-20023-000 |
US $10.30 |
||
