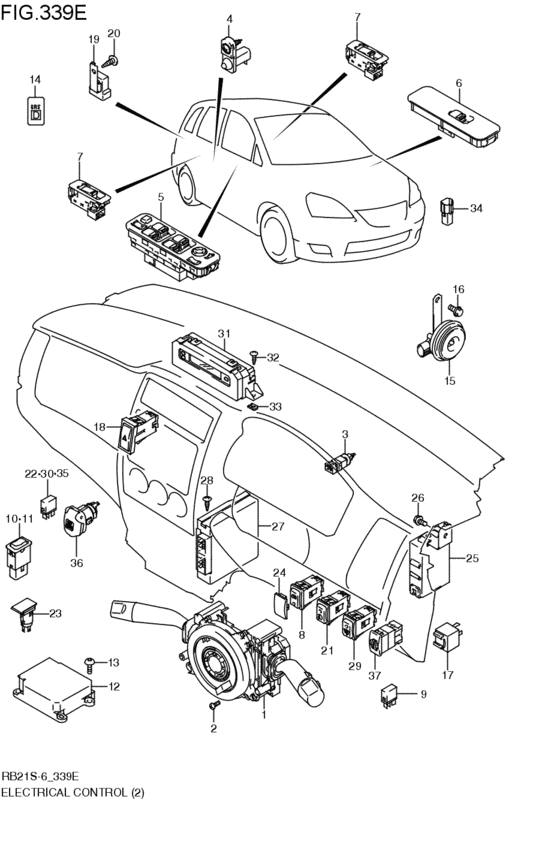

electrical control (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-54GP0-000 SWITCH ASSY,COMB5DR; 2005-12-01~2007-05-01 |
37400-54GP0-000 |
US $371.68 |
||
|
2
|
2
02112-0512A-000 SCREW5DR; 2005-12-01~2007-05-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-75H21-000 SWITCH ASSY,STOP LAMP5DR; 2005-12-01~2007-05-01 |
37740-75H21-000 |
US $19.14 |
||
|
4
|
4
37670-58J00-000
スイッチアッシ,ドア
5DR; 2005-12-01~2007-05-01 |
37670-58J00-000 |
— | ||
| replacement | |||||
|
4
|
4
37670-58J10-000 SWITCH ASSY,DOOR5DR; 2005-12-01~2007-05-01 |
37670-58J10-000 |
US $13.98 |
||
|
5
|
5
37990-59J20-ZL9 SWITCH ASSY,P/W MAINシルバ-; 5DR; 2005-12-01~2007-05-01 |
37990-59J20-ZL9 |
US $408.32 |
||
|
6
|
6
37995-50J00-ZL9 SWITCH ASSY,P/W SUBシルバ-; 5DR; 2005-12-01~2007-05-01 |
37995-50J00-ZL9 |
US $66.24 |
||
|
7
|
7
37995-75F00-ZL9 SWITCH ASSY,P/W SUBリヤ スイッチ,シルバ-; 5DR; 2005-12-01~2007-05-01 |
37995-75F00-ZL9 |
US $54.83 |
||
|
8
|
8
37955-59J00-000
Switch assy,mirror heater
5DR:4WD; 2005-12-01~2007-05-01 |
37955-59J00-000 |
— | ||
| replacement | |||||
|
8
|
8
37955-59J01-000
SWITCH ASSY,MIRROR HEATER
5DR:4WD; 2005-12-01~2007-05-01 |
37955-59J01-000 |
— | ||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ デフオッガ リレー; 5DR; 2005-12-01~2007-05-01 |
38860-76F01-000 |
from US $28.80 |
||
|
10
|
10
37850-65D00-000 SWITCH,SEAT HEATER,DRIVER5DR:4WD; 2005-12-01~2007-05-01 |
37850-65D00-000 |
US $43.06 |
||
|
11
|
11
37855-65D00-000 SWITCH,SEAT HEATER,ASSISTANT5DR:4WD; 2005-12-01~2007-05-01 |
37855-65D00-000 |
US $43.06 |
||
|
12
|
12
38910-59J01-000
コントローラアッシ,エアバッグ
5DR; 2005-12-01~2007-05-01 |
38910-59J01-000 |
— | ||
| replacement | |||||
|
12
|
12
38910-59J02-000 CONTROLLER ASSY,A/B5DR; 2005-12-01~2007-05-01 |
38910-59J02-000 |
US $612.48 |
||
|
13
|
13
09115-06004-000 BOLT(6X16)5DR; 2005-12-01~2007-05-01 |
09115-06004-000 |
US $12.50 |
||
|
14
|
14
38918-76G10-000 LABEL,AIR BAG(MARK D)マ-クD; 5DR; 2005-12-01~2007-05-01 |
38918-76G10-000 |
US $2.87 |
||
|
15
|
15
38500-54G00-000
ホーンアッシ
5DR; 2005-12-01~2007-05-01 |
38500-54G00-000 |
— | ||
| replacement | |||||
|
15
|
15
38500-54G10-000 HORN ASSY5DR; 2005-12-01~2007-05-01 |
38500-54G10-000 |
US $61.46 |
||
|
16
|
16
09117-08098-000 BOLT(8X20)5DR; 2005-12-01~2007-05-01 |
09117-08098-000 |
US $15.80 |
||
|
17
|
17
38610-54G00-000 RELAY ASSY,TURN SIGNAL5DR; 2005-12-01~2007-05-01 |
38610-54G00-000 |
US $59.62 |
||
|
18
|
18
37430-59J00-000 SWITCH ASSY,HAZARD WARNING5DR; 2005-12-01~2007-05-01 |
37430-59J00-000 |
US $33.67 |
||
|
19
|
19
38650-77E00-000 RELAY ASSY,RR WIPERリヤ ワイパ リレー; 5DR; 2005-12-01~2007-05-01 |
38650-77E00-000 |
US $70.29 |
||
|
20
|
20
03141-0512A-000 SCREWScrew, belt cooling duct 5DR; 2005-12-01~2007-05-01 |
03141-0512A-000 |
from US $0.76 |
||
|
21
|
21
37270-59J00-000
Switch assy,front fog
5DR; 2005-12-01~2007-05-01 |
37270-59J00-000 |
— | ||
| replacement | |||||
|
21
|
21
37270-59J01-000 SWITCH ASSY,FRONT FOG5DR; 2005-12-01~2007-05-01 |
37270-59J01-000 |
US $41.58 |
||
|
22
|
22
38860-76F01-000 RELAY ASSYRelay, starting motor フオグ ランプ リレー; 5DR; 2005-12-01~2007-05-01 |
38860-76F01-000 |
from US $28.80 |
||
|
23
|
23
39410-59J00-P4Z SOCKET ASSYグレ-; 5DR; 2005-12-01~2007-05-01 |
39410-59J00-P4Z |
US $21.90 |
||
|
24
|
24
37285-75F10-000 CAP,OPTION SW HOLE5DR; 2005-12-01~2007-05-01 |
37285-75F10-000 |
US $2.80 |
||
|
25
|
25
37190-54G70-000
コントローラアッシ,キーレス/ドアロック
5DR; 2005-12-01~2007-05-01 |
37190-54G70-000 |
— | ||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket 5DR; 2005-12-01~2007-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
38880-59J41-000
コントローラアッシ,AT
5DR:M18A:4WD; 2005-12-01~2007-05-01 |
38880-59J41-000 |
— | ||
|
28
|
28
03142-05123-000
Screw
5DR; 2005-12-01~2007-05-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0512A-000 SCREWScrew, belt cooling duct 5DR; 2005-12-01~2007-05-01 |
03141-0512A-000 |
from US $0.76 |
||
|
29
|
29
37810-59J00-000
スイッチアッシ,デアイサ
デアイサ シヨウ; 5DR; 2005-12-01~2007-05-01 |
37810-59J00-000 |
— | ||
|
30
|
30
38860-76F01-000 RELAY ASSYRelay, starting motor デアイサ シヨウ,デアイサ リレー; 5DR; 2005-12-01~2007-05-01 |
38860-76F01-000 |
from US $28.80 |
||
|
31
|
31
34600-59J01-000 MONITOR ASSY,INFORMATION5DR; 2005-12-01~2007-05-01 |
34600-59J01-000 |
US $159.34 |
||
|
32
|
32
03141-0516A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03141-0516A-000 |
from US $0.80 |
||
|
33
|
33
09148-05045-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-05045-000 |
from US $0.81 |
||
|
34
|
34
95643-65D00-000 SENSOR,OUTSIDE TEMP5DR; 2005-12-01~2007-05-01 |
95643-65D00-000 |
US $26.31 |
||
|
35
|
35
38860-76F01-000 RELAY ASSYRelay, starting motor シガライタ リレー; 5DR; 2005-12-01~2007-05-01 |
38860-76F01-000 |
from US $28.80 |
||
|
36
|
36
39410-59J00-P4Z SOCKET ASSYグレ-; 5DR; 2005-12-01~2007-05-01 |
39410-59J00-P4Z |
US $21.90 |
||
|
37
|
37
35180-54G00-000 SWITCH ASSY,HEADLAMP LEVELING5DR; 2005-12-01~2007-05-01 |
35180-54G00-000 |
US $61.46 |
||
