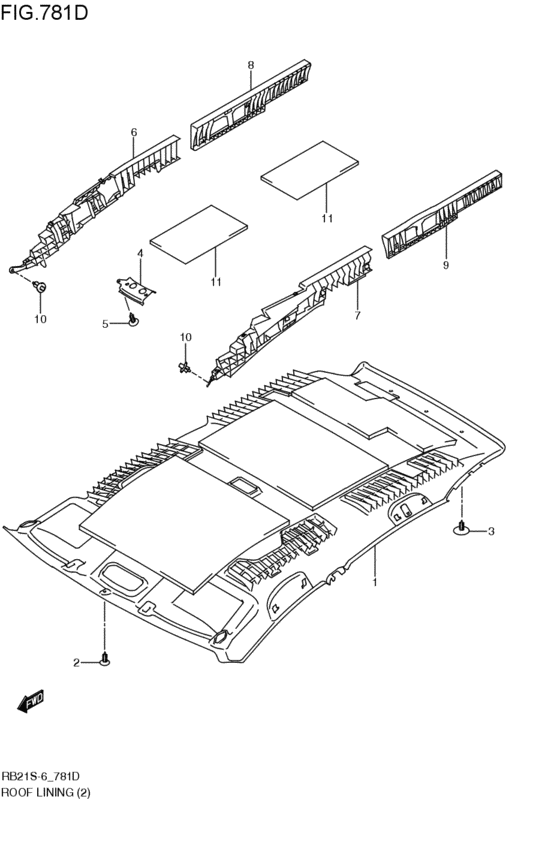

headlining (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-54G30-6GS
LINING,ROOF
グレ-; 5DR; 2005-12-01~2007-05-01 |
78110-54G30-6GS |
— | ||
|
2
|
2
09409-06312-6GS CLIP(GRAY)グレ-; 5DR; 2005-12-01~2007-05-01 |
09409-06312-6GS |
US $12.90 |
||
|
3
|
3
09409-06326-6GS CLIP(GRAY)グレ-; 5DR; 2005-12-01~2007-05-01 |
09409-06326-6GS |
US $1.60 |
||
|
4
|
4
78121-54G00-000 RETAINER,SPOT LAMP5DR; 2005-12-01~2007-05-01 |
78121-54G00-000 |
US $5.67 |
||
|
5
|
5
09409-06312-000 CLIP5DR; 2005-12-01~2007-05-01 |
09409-06312-000 |
US $12.90 |
||
|
6
|
6
78151-55G00-000 PAD,ROOF SIDE RAIL FR,R5DR; 2005-12-01~2007-05-01 |
78151-55G00-000 |
US $24.10 |
||
|
7
|
7
78161-55G00-000 PAD,ROOF SIDE RAIL FR,L5DR; 2005-12-01~2007-05-01 |
78161-55G00-000 |
US $24.10 |
||
|
8
|
8
78152-54G10-000 PAD,ROOF SIDE RAIL RR,R5DR; 2005-12-01~2007-05-01 |
78152-54G10-000 |
US $24.10 |
||
|
9
|
9
78162-54G10-000 PAD,ROOF SIDE RAIL RR,L5DR; 2005-12-01~2007-05-01 |
78162-54G10-000 |
US $24.10 |
||
|
10
|
10
09409-07308-5PK CLIP(BLACK)ブラック; 5DR; 2005-12-01~2007-05-01 |
09409-07308-5PK |
US $1.76 |
||
|
11
|
11
78181-54G00-000 SHEET,ROOF SILENCER5DR; 2005-12-01~2007-05-01 |
78181-54G00-000 |
US $18.77 |
