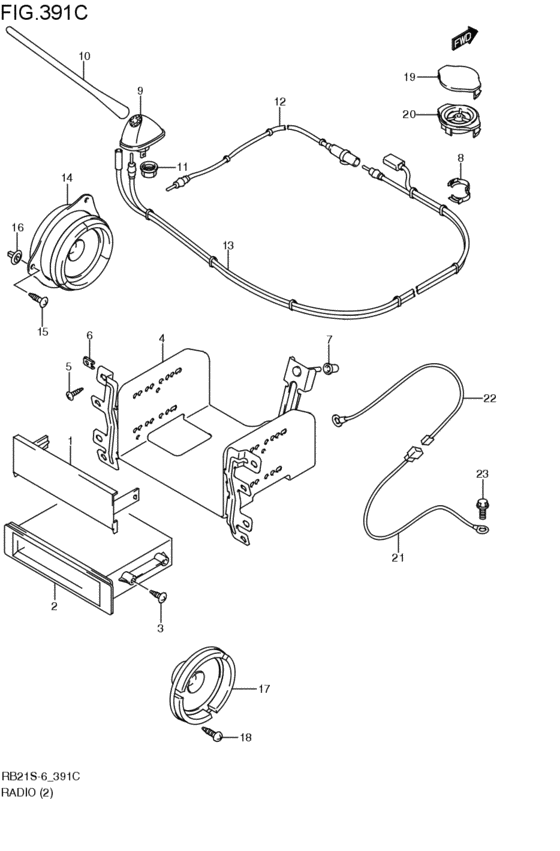

radio (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39161-74G00-000 COVER,RADIO HOLE5DR; 2005-12-01~2007-05-01 |
39161-74G00-000 |
US $8.65 |
||
|
2
|
2
39182-70E51-000 POCKET,TUNER5DR; 2005-12-01~2007-05-01 |
39182-70E51-000 |
US $20 |
||
|
3
|
3
03241-0512A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03241-0512A-000 |
from US $0.68 |
||
|
4
|
4
39320-59J00-000 BRACKET,TUNER5DR; 2005-12-01~2007-05-01 |
39320-59J00-000 |
US $19.14 |
||
|
5
|
5
03541-0516A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
09148-05045-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
34955-59J00-000 BUSH,RADIO BRKT5DR; 2005-12-01~2007-05-01 |
34955-59J00-000 |
US $2.24 |
||
|
8
|
8
36667-55G00-000 CLAMP,NOISE SUPPRESSOR5DR; 2005-12-01~2007-05-01 |
36667-55G00-000 |
US $1.91 |
||
|
9
|
9
39253-78HA1-000 BASE,ANTENNA5DR; 2005-12-01~2007-05-01 |
39253-78HA1-000 |
US $74.70 |
||
|
10
|
10
39251-78H00-000 ROD,ANTENNA5DR; 2005-12-01~2007-05-01 |
39251-78H00-000 |
US $60.80 |
||
|
11
|
11
39269-78H00-000 NUT,ANTENNA5DR; 2005-12-01~2007-05-01 |
39269-78H00-000 |
US $4.67 |
||
|
12
|
12
39270-59J10-000 FEEDER,ANT I/P5DR; 2005-12-01~2007-05-01 |
39270-59J10-000 |
US $23.74 |
||
|
13
|
13
39271-54G00-000 FEEDER,ANT ROOF5DR; 2005-12-01~2007-05-01 |
39271-54G00-000 |
US $64.80 |
||
|
14
|
14
39104-59J21-000 SPEAKER ASSYフロント スピーカ; 5DR; 2005-12-01~2007-05-01 |
39104-59J21-000 |
US $29.99 |
||
|
15
|
15
03241-0616A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03241-0616A-000 |
US $7.70 |
||
|
16
|
16
09148-05035-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-05035-000 |
US $12.90 |
||
|
17
|
17
39102-54G31-000 SPEAKER ASSY,RRリヤ スピーカ; 5DR; 2005-12-01~2007-05-01 |
39102-54G31-000 |
US $51.52 |
||
|
18
|
18
03111-0516A-000 SCREW5DR; 2005-12-01~2007-05-01 |
03111-0516A-000 |
from US $0.80 |
||
|
20
|
20
39102-59J10-000 SPEAKER ASSY,TWEETER5DR:M18A; 2005-12-01~2007-05-01 |
39102-59J10-000 |
US $20.24 |
||
|
21
|
21
39312-60G00-000 WIRE,NOISE SUPPR5DR; 2005-12-01~2007-05-01 |
39312-60G00-000 |
US $6.40 |
||
|
22
|
22
39312-60B20-000 WIRE,NOISE SUPPR NO.15DR; 2005-12-01~2007-05-01 |
39312-60B20-000 |
US $2.72 |
||
|
23
|
23
09115-06001-000
Bolt, lh
5DR; 2005-12-01~2007-05-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
23
|
23
09115-06005-000 BOLT(6X16)5DR; 2005-12-01~2007-05-01 |
09115-06005-000 |
US $1.28 |
||
