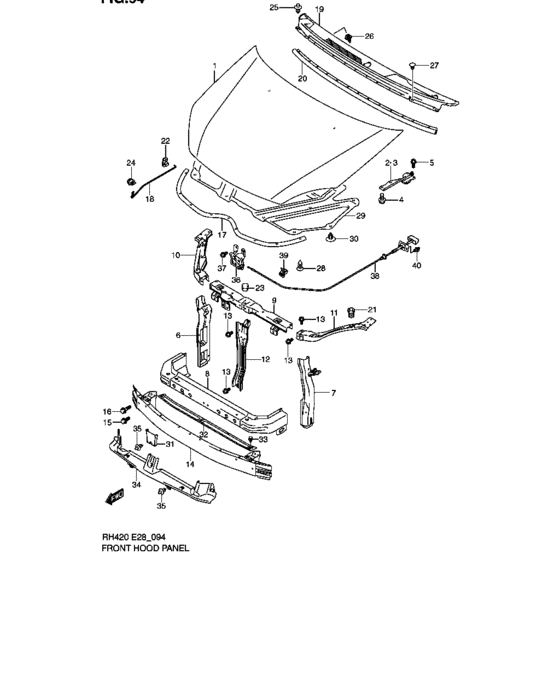

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki AERIO
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-54810-000
パネルセット,フロントフード
|
57300-54810-000 |
— | ||
| replacements | |||||
|
1
|
1
57300-54812-000 PANEL SET,FRONT HOOD |
57300-54812-000 |
from US $276.86 |
||
|
1
|
1
72441-54G01-000 SILENCER,FRONT HOOD |
72441-54G01-000 |
from US $88.20 |
||
|
2
|
2
57410-54G00-000 HINGE,FR HOOD,R |
57410-54G00-000 |
from US $15.10 |
||
|
3
|
3
57420-54G00-000 HINGE,FR HOOD,L |
57420-54G00-000 |
from US $15.05 |
||
|
4
|
4
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
4
|
4
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
5
|
5
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
6
|
6
58110-54G00-000
BRACE LAMP SUPPORT
|
58110-54G00-000 |
— | ||
| replacement | |||||
|
6
|
6
58110-54G02-000 BRACE,LAMP SUPPORT,R |
58110-54G02-000 |
from US $48.13 |
||
|
7
|
7
58160-54G00-000
BRACE LAMP SUPPORT LH
|
58160-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
58160-54G02-000 BRACE,LAMP SUPPORT,L |
58160-54G02-000 |
from US $48.60 |
||
|
8
|
8
58210-54G00-000
CROSSMEMBERFRONT LOWER
|
58210-54G00-000 |
— | ||
| replacement | |||||
|
8
|
8
58210-54G01-000 CROSSMEMBER,FR LOWER |
58210-54G01-000 |
from US $180.38 |
||
|
9
|
9
58230-54G00-000
MEMBER HOOD LOCK
|
58230-54G00-000 |
— | ||
| replacement | |||||
|
9
|
9
58230-54GV0-000 MEMBER,HOOD LOCK |
58230-54GV0-000 |
from US $43.04 |
||
|
10
|
10
58234-54G00-000 MEMBER HOOD LOCK SIDE RH |
58234-54G00-000 |
US $21.06 |
||
| replacement | |||||
|
10
|
10
58234-54G01-000 MEMBER,HOOD LOCK SIDE,R |
58234-54G01-000 |
from US $21.06 |
||
|
11
|
11
58235-54G00-000
MEMBER HOOD LOCK SIDE LH
|
58235-54G00-000 |
— | ||
| replacement | |||||
|
11
|
11
58235-54G01-000 MEMBER,HOOD LOCK SIDE,L |
58235-54G01-000 |
from US $21.11 |
||
|
12
|
12
58240-54G00-000 BRACE,HOOD LOCK |
58240-54G00-000 |
from US $22.21 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
14
|
14
58260-54G10-000
Member, front bumper
|
58260-54G10-000 |
— | ||
| replacement | |||||
|
14
|
14
58260-54G11-000 MEMBER,FR BUMPER |
58260-54G11-000 |
from US $131.90 |
||
|
15
|
15
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
15
|
15
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
16
|
16
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
16
|
16
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
17
|
17
72151-54G00-000 SEAL,HOOD FR |
72151-54G00-000 |
from US $14.54 |
||
|
18
|
18
72321-60B10-000 PROP,FRONT HOOD |
72321-60B10-000 |
from US $9.52 |
||
|
19
|
19
72331-54G10-5PK
Garnish, cowl ventilator
|
72331-54G10-5PK |
— | ||
| replacement | |||||
|
19
|
19
72331-54G11-5PK GARNISH,COWL VENT |
72331-54G11-5PK |
US $67.41 |
||
|
20
|
20
72341-54G00-000
SEALHOOD REAR
|
72341-54G00-000 |
— | ||
| replacement | |||||
|
20
|
20
72341-54G01-000 SEAL,HOOD RR |
72341-54G01-000 |
from US $18.16 |
||
|
21
|
21
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.24 |
||
|
22
|
22
09209-09007-000 LINKAGEConnector |
09209-09007-000 |
from US $1.94 |
||
|
23
|
23
09321-10023-000 CUSHION |
09321-10023-000 |
from US $2.24 |
||
|
24
|
24
09403-07311-000 CLAMP |
09403-07311-000 |
from US $1.55 |
||
|
25
|
25
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
26
|
26
09409-08331-000 CLIP |
09409-08331-000 |
from US $1.28 |
||
|
27
|
27
09409-10304-5ES CLIP(BLACK) |
09409-10304-5ES |
from US $0.97 |
||
|
28
|
28
09409-10304-5ES CLIP(BLACK) |
09409-10304-5ES |
from US $0.97 |
||
|
29
|
29
72441-54G00-000
SILENCER,FRONT HOOD
|
72441-54G00-000 |
— | ||
|
30
|
30
09409-06325-000 CLIP |
09409-06325-000 |
from US $1.28 |
||
|
31
|
31
72384-54G00-5PK
COVER,HOOD LOCK BRACE
GL,GLX |
72384-54G00-5PK |
— | ||
| replacement | |||||
|
31
|
31
72384-54G10-5PK COVER,HOOD LOCK BRACEGL,GLX |
72384-54G10-5PK |
from US $5.60 |
||
|
31
|
31
72384-54G10-5PK COVER,HOOD LOCK BRACESPORT |
72384-54G10-5PK |
from US $5.60 |
||
|
32
|
32
72385-54G50-000 COVER,FR BUMPER MEMBERSPORT |
72385-54G50-000 |
US $22.63 |
||
|
33
|
33
09409-07332-000 CLIPSPORT |
09409-07332-000 |
from US $1.44 |
||
|
34
|
34
72383-54G20-5PK
COVER FR LOWER CROSS MEM
|
72383-54G20-5PK |
— | ||
| replacement | |||||
|
34
|
34
72383-54G21-5PK COVER,FR LOWER X MBR |
72383-54G21-5PK |
from US $21.89 |
||
|
35
|
35
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
36
|
36
82110-54G00-000 LATCH,HOOD |
82110-54G00-000 |
from US $33.89 |
||
|
37
|
37
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
37
|
37
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
38
|
38
82160-54G00-000
CABLE
|
82160-54G00-000 |
— | ||
| replacement | |||||
|
38
|
38
82160-54G01-000 CABLE,HOOD LATCH RELEASE |
82160-54G01-000 |
from US $24.66 |
||
|
39
|
39
09403-04401-000 CLAMP |
09403-04401-000 |
from US $3.06 |
||
|
40
|
40
09409-07308-P4Z CLIP(GRAY) |
09409-07308-P4Z |
from US $1.08 |
||
