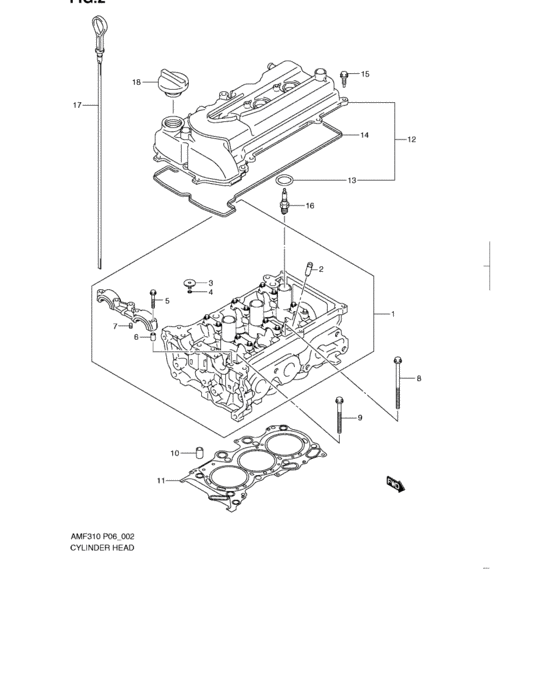

Cylinder head (CYLINDER HEAD) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-M68K0-100
Head assy, cylinder
|
11100-M68K0-100 |
— | ||
|
3
|
3
09248-18011-000 PLUG(18X8)Plug, oil gallery |
09248-18011-000 |
from US $3.15 |
||
|
4
|
4
11216-M68K0-000
Gasket, m18 plug
|
11216-M68K0-000 |
— | ||
|
5
|
5
11128-69G01-000 BOLT,CAMSHAFT HOUSING 6X39 |
11128-69G01-000 |
from US $1.60 |
||
|
6
|
6
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
7
|
7
11112-53A00-000 PLUG,OIL VENTURI |
11112-53A00-000 |
from US $2.24 |
||
|
8
|
8
11117-69J00-000 BOLT,CYLINDER HEAD |
11117-69J00-000 |
from US $4.16 |
||
|
9
|
9
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
10
|
10
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
11
|
11
11141-M68K0-000
Gasket, cylinder head
|
11141-M68K0-000 |
— | ||
|
12
|
12
11170-M68K0-000
Cover, cylinder head
|
11170-M68K0-000 |
— | ||
|
13
|
13
11179-M68K0-000
O ring
|
11179-M68K0-000 |
— | ||
|
14
|
14
11189-M68K0-000
Gasket, Cylinder Head Cover
|
11189-M68K0-000 |
— | ||
|
15
|
15
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
09482-M0060-900
Spark Plug
|
09482-M0060-900 |
— | ||
|
17
|
17
16910-M68K0-000
Gauge, oil level
|
16910-M68K0-000 |
— | ||
|
18
|
18
16920-M68K0-000 Cap, oil filter |
16920-M68K0-000 |
US $2.52 |
