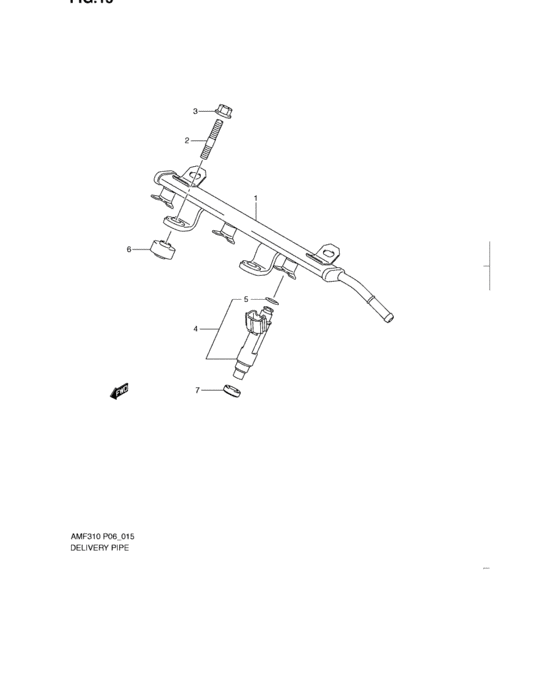

Delivery pipe (DELIVERY PIPE) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-51K00-000 PIPE,FUEL DELIVERY |
15730-51K00-000 |
US $71.02 |
||
|
2
|
2
01421-0830A-000 BOLT,STUD |
01421-0830A-000 |
from US $1.13 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
15710-M68K0-000
Injector assy, fuel
|
15710-M68K0-000 |
— | ||
|
5
|
5
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
6
|
6
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe |
15735-58B00-000 |
from US $2.72 |
||
|
7
|
7
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.64 |
