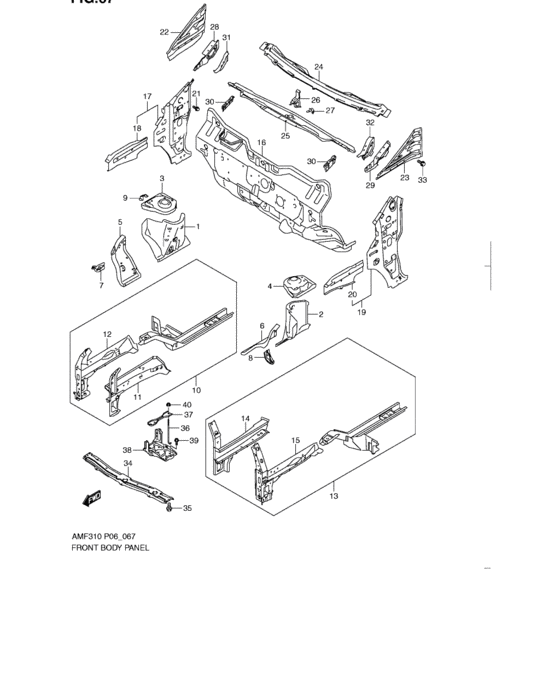

Front body panel (FRONT BODY PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58311-M68K0-000
Panel, fender apron rh
|
58311-M68K0-000 |
— | ||
|
2
|
2
58411-M68K0-000
Panel, fender apron lh
|
58411-M68K0-000 |
— | ||
|
3
|
3
58312-M68K0-000
Bracket, suspension upr rh
|
58312-M68K0-000 |
— | ||
|
4
|
4
58412-M68K0-000
Bracket, suspension upr lh
|
58412-M68K0-000 |
— | ||
|
5
|
5
58313-M68K0-000
Extension, apron front rh
|
58313-M68K0-000 |
— | ||
|
6
|
6
58413-M68K0-000
Extension, apron front lh
|
58413-M68K0-000 |
— | ||
|
7
|
7
58315-M68K0-000
Bracket, fr fender lwr rh
|
58315-M68K0-000 |
— | ||
|
8
|
8
58415-M68K0-000
Bracket, fr fender lwr lh
|
58415-M68K0-000 |
— | ||
|
9
|
9
58316-M68K0-000
Holder, hood stay
|
58316-M68K0-000 |
— | ||
|
10
|
10
58600-M68K0-000
Member, front side rh
|
58600-M68K0-000 |
— | ||
|
11
|
11
58610-M68K0-000
Member, apron side rh
|
58610-M68K0-000 |
— | ||
|
12
|
12
58630-M68K0-000
Panel, apron side mbr otr rh
|
58630-M68K0-000 |
— | ||
|
13
|
13
58700-M68K0-000
Member, front side lh
|
58700-M68K0-000 |
— | ||
|
14
|
14
58710-M68K0-000
Member, apron side lh
|
58710-M68K0-000 |
— | ||
|
15
|
15
58730-M68K0-000
Panel, apron side mbr otr lh
|
58730-M68K0-000 |
— | ||
|
16
|
16
59100-M68K4-000
Panel, dash
|
59100-M68K4-000 |
— | ||
|
17
|
17
59230-M68K0-000
Panel, dash side rh
|
59230-M68K0-000 |
— | ||
|
18
|
18
59234-M68K0-000
Panel, dash side fr rh
|
59234-M68K0-000 |
— | ||
|
19
|
19
59280-M68K0-000
Panel, dash side lh
|
59280-M68K0-000 |
— | ||
|
20
|
20
59284-M68K0-000
Panel, dash side fr lh
|
59284-M68K0-000 |
— | ||
|
21
|
21
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
59411-M68K0-000
Member, cowl side outer rh
|
59411-M68K0-000 |
— | ||
|
23
|
23
59412-M68K0-000
Member, cowl side outer lh
|
59412-M68K0-000 |
— | ||
|
24
|
24
59711-M68K0-000
Panel, cowl top
|
59711-M68K0-000 |
— | ||
|
25
|
25
59721-M68K0-000
Panel, cowl front
|
59721-M68K0-000 |
— | ||
|
26
|
26
59722-M68K0-000
Bracket, wiper unit ctr
|
59722-M68K0-000 |
— | ||
|
27
|
27
59723-M68K0-000
Bracket, wiper unit side no.1
|
59723-M68K0-000 |
— | ||
|
28
|
28
59731-M68K0-000
Panel, cowl side rh
|
59731-M68K0-000 |
— | ||
|
29
|
29
59781-M68K0-000
Panel, cowl side lh
|
59781-M68K0-000 |
— | ||
|
30
|
30
59732-M68K0-000
Bracket, front fender
|
59732-M68K0-000 |
— | ||
|
31
|
31
59733-M68K0-000
Bracket, wiper unit side no.2,rh
|
59733-M68K0-000 |
— | ||
|
32
|
32
59783-M68K0-000
Bracket, wiper unit side no.2,lh
|
59783-M68K0-000 |
— | ||
|
33
|
33
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
34
|
34
72380-M68K1-000
Crossmember, front lower
|
72380-M68K1-000 |
— | ||
|
35
|
35
01551-0820C-000 Bolt |
01551-0820C-000 |
US $15.50 |
||
|
36
|
36
63461-68K00-000
Bolt,battery
|
63461-68K00-000 |
— | ||
|
37
|
37
72511-78000-000
Band, battery
|
72511-78000-000 |
— | ||
| replacement | |||||
|
37
|
37
72511-71L00-000 BAND,BATTERY |
72511-71L00-000 |
from US $3.44 |
||
|
38
|
38
72520-M68K0-000
Tray, battery
|
72520-M68K0-000 |
— | ||
|
39
|
39
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
40
|
40
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
