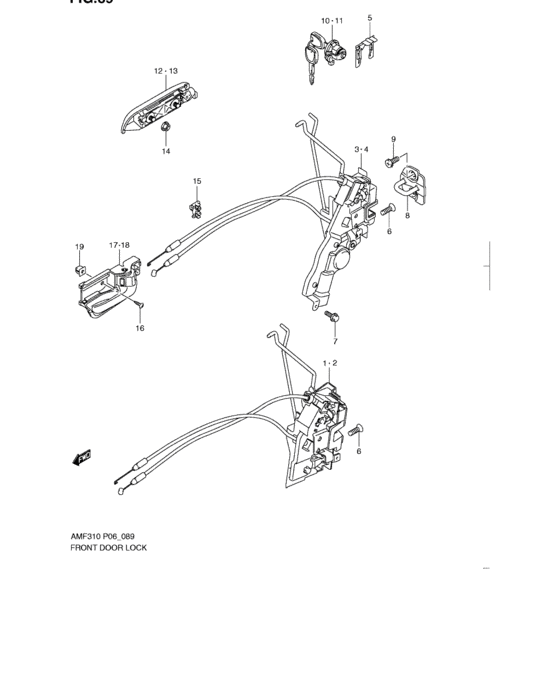

Front door lock (FRONT DOOR LOCK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-M68K0-000
Latch assy, front door rh
LOW |
82201-M68K0-000 |
— | ||
|
2
|
2
82202-M68K0-000
Latch assy, front door lh
LOW |
82202-M68K0-000 |
— | ||
|
3
|
3
82201-M68K1-000
Latch assy, front door rh
HIGH |
82201-M68K1-000 |
— | ||
|
4
|
4
82202-M68K2-000
Latch assy, front door lh
HIGH |
82202-M68K2-000 |
— | ||
|
5
|
5
82291-72J00-000 RETAINER,DOOR LATCH CYLINDER |
82291-72J00-000 |
US $8.17 |
||
|
6
|
6
09137-06028-000 SCREW(6X18) |
09137-06028-000 |
from US $1.24 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket HIGH |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
82610-M75J0-000
Striker, door latch
|
82610-M75J0-000 |
— | ||
|
9
|
9
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
10
|
10
82270-M6885-000
Cylinder, fr door lock rh
|
82270-M6885-000 |
— | ||
|
11
|
11
82280-M6885-000
Cylinder, fr door lock lh
|
82280-M6885-000 |
— | ||
|
14
|
14
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
15
|
15
83271-50E00-000 CLIP,DR HANDLE ROD |
83271-50E00-000 |
from US $1.60 |
||
|
16
|
16
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
19
|
19
83119-M75J0-000
Nut, side door inside handle
|
83119-M75J0-000 |
— | ||
