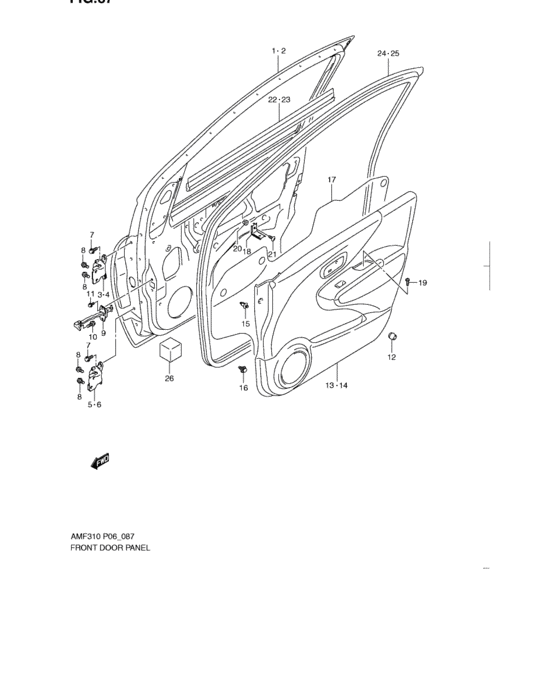

Front door panel (FRONT DOOR PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-M68K1-000
Panel assy, front door rh
|
68001-M68K1-000 |
— | ||
|
2
|
2
68002-M68K1-000 Panel assy, front door lh |
68002-M68K1-000 |
US $381.13 |
||
|
3
|
3
69310-63J00-000 HINGE,FR DR NO.1 |
69310-63J00-000 |
from US $24.93 |
||
|
4
|
4
69320-63J00-000 HINGE,FR DR NO.2 |
69320-63J00-000 |
from US $24.50 |
||
|
5
|
5
69330-58J00-000 HINGE,FR DR LWR,R |
69330-58J00-000 |
from US $21.71 |
||
|
6
|
6
69340-58J00-000 HINGE,FR DR LWR,L |
69340-58J00-000 |
from US $23.74 |
||
|
7
|
7
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
8
|
8
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
9
|
9
81810-M75J0-100
Stop, rear door open
|
81810-M75J0-100 |
— | ||
|
10
|
10
09112-08015-000 BOLT(8X25) |
09112-08015-000 |
US $19.50 |
||
|
11
|
11
01550-0620A-000 Bolt |
01550-0620A-000 |
from US $0.76 |
||
|
12
|
12
82711-65J00-000 CUSHION |
82711-65J00-000 |
from US $2.25 |
||
|
16
|
16
09409-10312-000 CLIP |
09409-10312-000 |
from US $0.99 |
||
|
17
|
17
83911-M68K0-000
Cover, front door sealing
LOW |
83911-M68K0-000 |
— | ||
|
17
|
17
83911-M68K1-000
Cover, front door sealing
HIGH |
83911-M68K1-000 |
— | ||
|
18
|
18
83751-M68K0-000
Bracket, side door trim
|
83751-M68K0-000 |
— | ||
|
19
|
19
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
20
|
20
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
21
|
21
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
22
|
22
83851-M68K0-000
Weatherstrip, fr door inner rh
|
83851-M68K0-000 |
— | ||
|
23
|
23
83861-M68K0-000
Weatherstrip, fr door inner lh
|
83861-M68K0-000 |
— | ||
|
24
|
24
84641-M68K0-000
Weatherstrip, fr door opng rh
|
84641-M68K0-000 |
— | ||
|
25
|
25
84651-M68K0-000
Weatherstrip, fr door opng lh
|
84651-M68K0-000 |
— | ||
|
26
|
26
83915-M68K0-000
Pad, door trim
LOW |
83915-M68K0-000 |
— |
