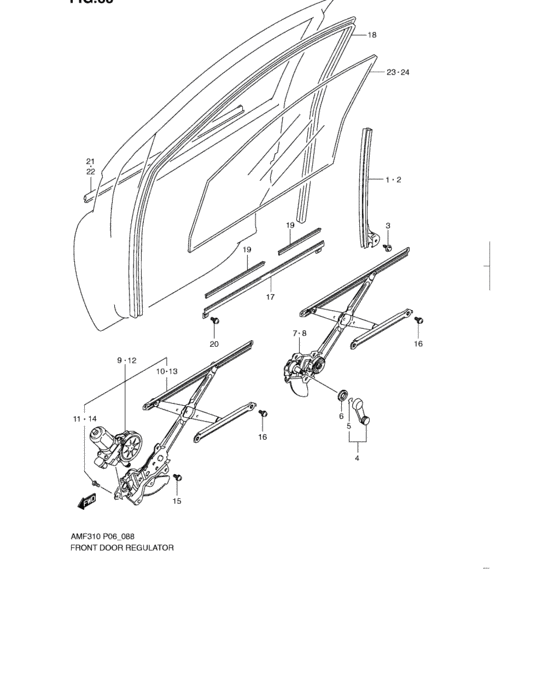

Front door regulator (FRONT DOOR REGULATOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81730-M68K0-000
Sash, front door rear rh
|
81730-M68K0-000 |
— | ||
|
2
|
2
81740-M68K0-000
Sash, front door rear lh
|
81740-M68K0-000 |
— | ||
|
3
|
3
09122-76003-000 SCREW(6X16)Bolt (6x16) |
09122-76003-000 |
from US $0.74 |
||
|
4
|
4
82960-60G00-P4Z HANDLE,DR WINDOW RGLTR(GRAY) |
82960-60G00-P4Z |
from US $20.86 |
||
|
5
|
5
78463-78000-000 SNAP |
78463-78000-000 |
from US $1.24 |
||
|
6
|
6
82972-70B00-P4Z ESCUTCHEON,WINDOW RGLTR HDL(GR |
82972-70B00-P4Z |
from US $2.24 |
||
|
7
|
7
83410-M68K0-000
Regulator assy, fr window rh
LOW |
83410-M68K0-000 |
— | ||
|
8
|
8
83440-M68K0-000
Regulator assy, fr window lh
LOW |
83440-M68K0-000 |
— | ||
|
9
|
9
83401-M68K1-000
Regulator assy, fr window rh
HIGH |
83401-M68K1-000 |
— | ||
|
10
|
10
83410-M68K1-000
Regulators, fr window rh
HIGH |
83410-M68K1-000 |
— | ||
|
11
|
11
09139-05063-000 SCREW(5X11)HIGH |
09139-05063-000 |
from US $0.72 |
||
|
12
|
12
83402-M68K1-000
Regulator assy, fr window lh
HIGH |
83402-M68K1-000 |
— | ||
|
13
|
13
83440-M68K1-000
Regulators, fr window, lh
HIGH |
83440-M68K1-000 |
— | ||
|
14
|
14
09139-05063-000 SCREW(5X11)HIGH |
09139-05063-000 |
from US $0.72 |
||
|
15
|
15
02112-7610A-000 SCREWLOW |
02112-7610A-000 |
from US $3.59 |
||
|
16
|
16
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
17
|
17
83610-M75J0-000
Channel, glass bottom
|
83610-M75J0-000 |
— | ||
|
18
|
18
83661-M68K0-000
Run, fr door glass
|
83661-M68K0-000 |
— | ||
|
19
|
19
83691-76G00-000 RUBBER,GLASS BOTTOM |
83691-76G00-000 |
from US $2.56 |
||
|
20
|
20
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
21
|
21
83811-M68K0-000
Weatherstrip, fr door out rh
|
83811-M68K0-000 |
— | ||
|
22
|
22
83821-M68K0-000
Weatherstrip, fr door out lh
|
83821-M68K0-000 |
— | ||
|
23
|
23
84531-M68K0-000
Glass, front door window rh
|
84531-M68K0-000 |
— | ||
|
24
|
24
84536-M68K0-000
Glass, front door window lh
|
84536-M68K0-000 |
— |
