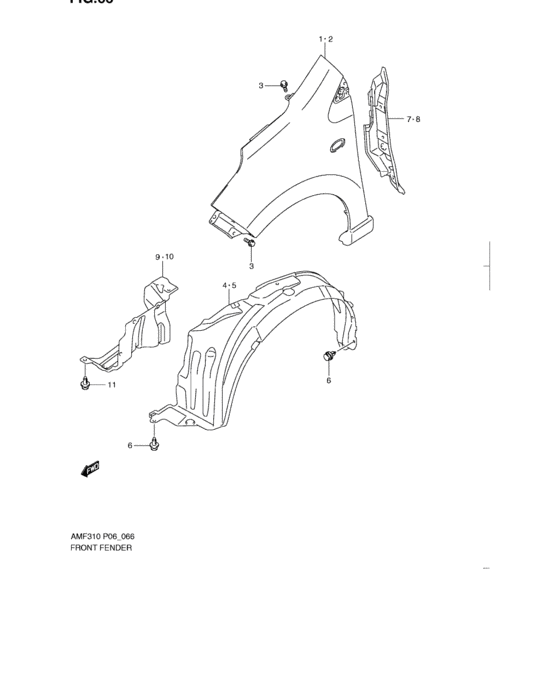

Front fender (FRONT FENDER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-M68K0-000 Panel, front fender rh |
57611-M68K0-000 |
US $79.58 |
||
|
2
|
2
57711-M68K0-000
Panel, front fender lh
|
57711-M68K0-000 |
— | ||
|
3
|
3
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72321-M68K0-000
Lining, fr fender rh
|
72321-M68K0-000 |
— | ||
|
5
|
5
72322-M68K0-000
Lining, fr fender lh
|
72322-M68K0-000 |
— | ||
|
6
|
6
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.44 |
||
|
7
|
7
72391-M68K0-000
Cover, fr fender rh
|
72391-M68K0-000 |
— | ||
|
8
|
8
72392-M68K0-000
Cover, fr fender lh
|
72392-M68K0-000 |
— | ||
|
9
|
9
72393-M68K0-000
Cover, splash rh
|
72393-M68K0-000 |
— | ||
|
10
|
10
72394-M68K0-000
Cover, splash lh
|
72394-M68K0-000 |
— | ||
|
11
|
11
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.44 |
