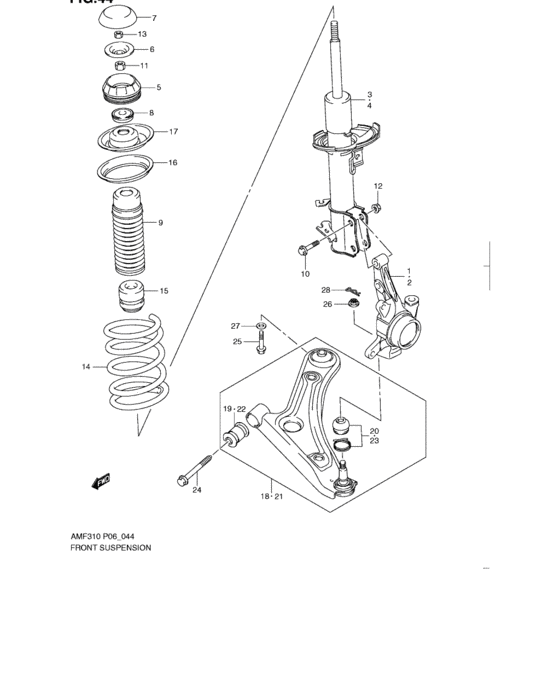

Front suspension (FRONT SUSPENSION) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-M68K0-000
Knuckle, steering rh
N/ABS |
45111-M68K0-000 |
— | ||
|
1
|
1
45111-M68K5-000
Knuckle, steering rh
W/ABS |
45111-M68K5-000 |
— | ||
|
2
|
2
45151-M68K0-000
Knuckle, steering lh
N/ABS |
45151-M68K0-000 |
— | ||
|
2
|
2
45151-M68K5-000 Knuckle, steering lhW/ABS |
45151-M68K5-000 |
US $51.77 |
||
|
3
|
3
41601-M68K0-000
Strut assy, fr suspension rh
|
41601-M68K0-000 |
— | ||
|
4
|
4
41602-M68K0-000
Strut assy, fr suspension lh
|
41602-M68K0-000 |
— | ||
|
5
|
5
41710-M68K0-000
Support, front strut
|
41710-M68K0-000 |
— | ||
|
6
|
6
41720-M68K0-000
Stopper, front strut rebound
|
41720-M68K0-000 |
— | ||
|
7
|
7
41724-M68K0-000
Cap, strut rod
|
41724-M68K0-000 |
— | ||
|
8
|
8
41741-72J00-000 BEARING,FR STRUT |
41741-72J00-000 |
from US $11.78 |
||
|
9
|
9
41931-M68K0-000 Cover, strut dust |
41931-M68K0-000 |
US $3.24 |
||
|
10
|
10
09103-12088-000
Bolt,12x50
|
09103-12088-000 |
— | ||
|
11
|
11
09140-12050-000 NUT |
09140-12050-000 |
US $1.76 |
||
|
12
|
12
09159-12064-000 NUT |
09159-12064-000 |
from US $1.76 |
||
|
13
|
13
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
14
|
14
41111-M68K0-000
Spring, front coil
|
41111-M68K0-000 |
— | ||
|
15
|
15
42111-M68K0-000 Stopper, front bump |
42111-M68K0-000 |
US $12.42 |
||
|
16
|
16
41211-M68K0-000
Seat, front coil spring upper
|
41211-M68K0-000 |
— | ||
|
17
|
17
41230-M68K0-000
Seat, front spring upper
|
41230-M68K0-000 |
— | ||
|
18
|
18
45201-M68K0-000
Arm assy, front suspension rh
|
45201-M68K0-000 |
— | ||
|
19
|
19
45530-M68K0-000
Bushing, spnsn arm front
|
45530-M68K0-000 |
— | ||
|
20
|
20
45714-68810-000
SEAL SET,DUST
|
45714-68810-000 |
— | ||
| replacement | |||||
|
20
|
20
45714-68811-000 Seal Set,dust |
45714-68811-000 |
US $28.34 |
||
|
21
|
21
45202-M68K0-000
Arm assy, front suspension lh
|
45202-M68K0-000 |
— | ||
|
22
|
22
45530-M68K0-000
Bushing, spnsn arm front
|
45530-M68K0-000 |
— | ||
|
23
|
23
45714-68810-000
SEAL SET,DUST
|
45714-68810-000 |
— | ||
| replacement | |||||
|
23
|
23
45714-68811-000 Seal Set,dust |
45714-68811-000 |
US $28.34 |
||
|
24
|
24
45215-85K00-000 BOLT,SPNSN ARM FR BUSHING |
45215-85K00-000 |
US $7.95 |
||
|
25
|
25
45511-54G00-000 BOLT,SPNSN ARM RR |
45511-54G00-000 |
from US $2.40 |
||
|
26
|
26
09141-12006-000
Nut
|
09141-12006-000 |
— | ||
|
27
|
27
09162-12005-000 WASHER,LOCKLock washer (12.2x21.5x3) |
09162-12005-000 |
from US $1.51 |
||
|
28
|
28
09385-15001-000
Clip
|
09385-15001-000 |
— | ||
