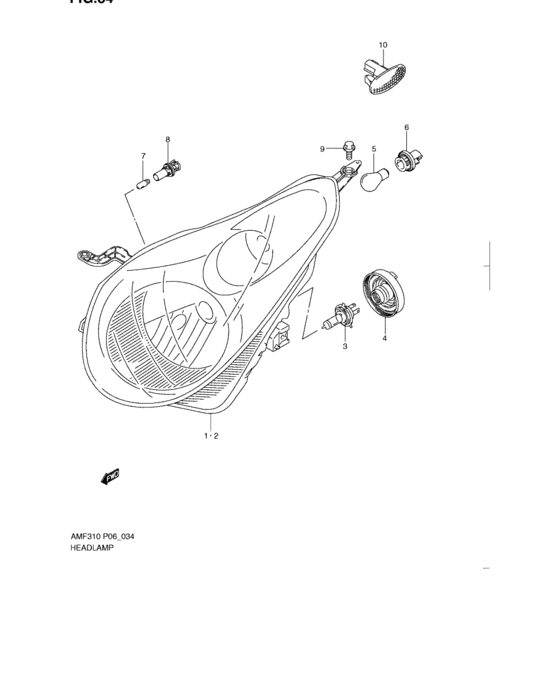

Headlamp (HEADLAMP) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-M68K3-000 Unit, headlamp rh |
35120-M68K3-000 |
US $80.71 |
||
|
2
|
2
35320-M68K3-000 Unit, headlamp lh |
35320-M68K3-000 |
US $88.47 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $29.50 |
||
|
4
|
4
35179-64G00-000 COVER,SOCKET |
35179-64G00-000 |
from US $9.20 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER) |
09471-12186-000 |
from US $10.80 |
||
|
6
|
6
36118-77A00-000 SOCKET,TURN LAMP |
36118-77A00-000 |
from US $6.46 |
||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
8
|
8
35118-68K00-000 SOCKET,POSITION LAMP |
35118-68K00-000 |
from US $7.94 |
||
|
9
|
9
09122-76006-000 SCREW(6X16) |
09122-76006-000 |
from US $0.80 |
||
|
10
|
10
36410-M67K1-000
Lamp assy, side turn signal
|
36410-M67K1-000 |
— |
