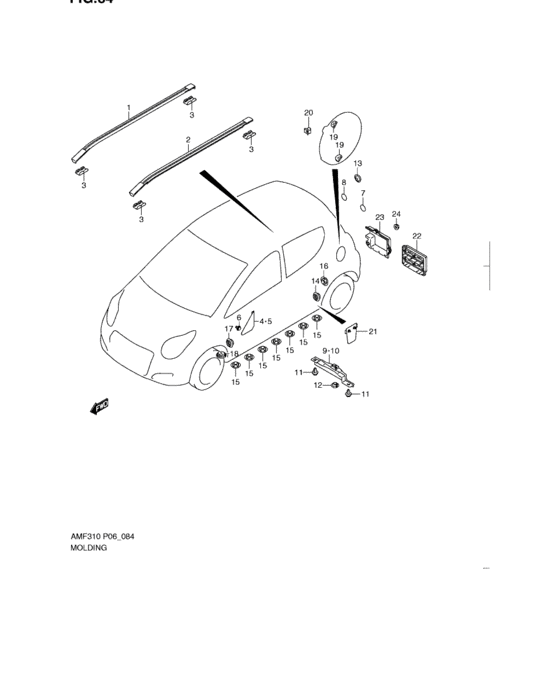

Molding (MOLDING) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78151-68K00-000
Molding,roof,r
|
78151-68K00-000 |
— | ||
|
2
|
2
78161-68K00-000
Molding,roof,l
|
78161-68K00-000 |
— | ||
|
3
|
3
78170-M68K1-000
Clip, roof molding body
|
78170-M68K1-000 |
— | ||
|
6
|
6
09409-11305-000 CLIP |
09409-11305-000 |
from US $1.10 |
||
|
7
|
7
77191-M79F0-000
Film
|
77191-M79F0-000 |
— | ||
|
8
|
8
77191-M79F0-000
Film
|
77191-M79F0-000 |
— | ||
|
9
|
9
77381-M68K0-000
Skirt, rr air dam rh
|
77381-M68K0-000 |
— | ||
|
10
|
10
77391-M68K0-000
Skirt, rr air dam lh
|
77391-M68K0-000 |
— | ||
|
11
|
11
09409-08327-000 CLIP |
09409-08327-000 |
from US $1.82 |
||
|
12
|
12
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.28 |
||
|
13
|
13
09250-10016-000 CAP(OD:16.2) |
09250-10016-000 |
from US $1.13 |
||
|
14
|
14
09250-15012-000 CAP(OD:23.5) |
09250-15012-000 |
from US $0.90 |
||
|
15
|
15
09250-15015-000 CAP(OD:23.5) |
09250-15015-000 |
US $1.07 |
||
|
16
|
16
09250-15015-000 CAP(OD:23.5) |
09250-15015-000 |
US $1.07 |
||
|
17
|
17
09250-M1700-500
Cap
|
09250-M1700-500 |
— | ||
|
18
|
18
72397-58J00-000 CAP,DASH LOWER |
72397-58J00-000 |
US $2.24 |
||
|
19
|
19
77116-M60B0-000
Cushion
|
77116-M60B0-000 |
— | ||
|
20
|
20
77121-63J00-000 SPRING,FUEL FILLER DOOR |
77121-63J00-000 |
from US $4.27 |
||
|
21
|
21
75470-73H00-000 VALVE,AIR OUTLET |
75470-73H00-000 |
US $6.29 |
||
|
22
|
22
77330-M68K0-000
Outlet, ventilator
|
77330-M68K0-000 |
— | ||
|
23
|
23
77341-M68K0-000
Duct, ventilator outlet
|
77341-M68K0-000 |
— | ||
|
24
|
24
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
