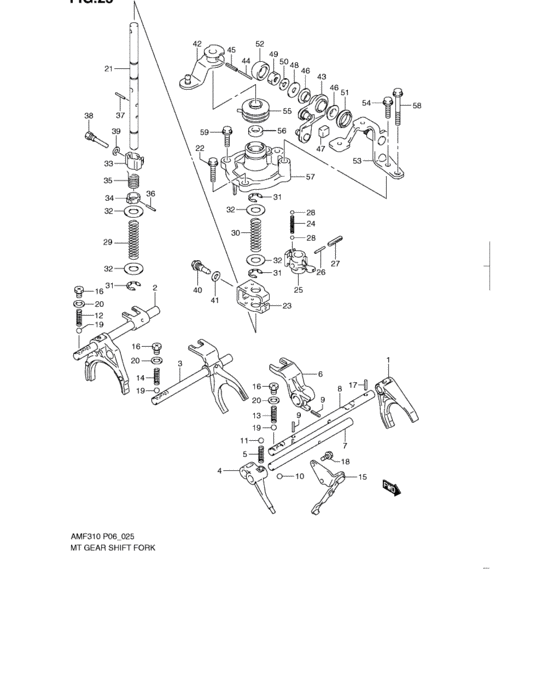

Mt gear shift fork (MT GEAR SHIFT FORK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25231-M75J0-000
Fork, 5th gear shift
|
25231-M75J0-000 |
— | ||
|
2
|
2
25401-M68K0-000
Shaft, low speed gear shift
|
25401-M68K0-000 |
— | ||
|
3
|
3
25402-M68K0-200
Shaft, high speed gear shift
|
25402-M68K0-200 |
— | ||
|
4
|
4
25251-M75J0-000
Arm, reverse gear shift
|
25251-M75J0-000 |
— | ||
|
5
|
5
25255-60B01-000 SPRING,REVERSE GEAR SHF ARM |
25255-60B01-000 |
from US $1.60 |
||
|
6
|
6
25261-M68K0-000
Yoke, 5th & rev gear shift
|
25261-M68K0-000 |
— | ||
|
7
|
7
25431-M75J0-000
Shaft, 5th & reverse gear,shift guide
|
25431-M75J0-000 |
— | ||
|
8
|
8
25451-M68K0-000
Shaft, 5th & rev gear shift
|
25451-M68K0-000 |
— | ||
|
9
|
9
09205-04009-000 PIN,SPRING(4.5X20) |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
9
|
9
09205-04015-000 PIN,SPRING(4.5X20) |
09205-04015-000 |
from US $3.56 |
||
|
10
|
10
06111-M1000-400
Ball
|
06111-M1000-400 |
— | ||
|
11
|
11
06111-M1000-400
Ball
|
06111-M1000-400 |
— | ||
|
12
|
12
25415-60B02-000 SPRING,LOW SPEED LOCATING |
25415-60B02-000 |
from US $1.71 |
||
|
13
|
13
25415-60B02-000 SPRING,LOW SPEED LOCATING |
25415-60B02-000 |
from US $1.71 |
||
|
14
|
14
25425-60B10-000 SPRING,HIGH SPEED LOCATING |
25425-60B10-000 |
from US $1.92 |
||
|
15
|
15
25460-M75J0-000
Lever, reverse gear shift
|
25460-M75J0-000 |
— | ||
|
16
|
16
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $0.47 |
||
|
17
|
17
09205-04009-000 PIN,SPRING(4.5X20) |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
17
|
17
09205-04015-000 PIN,SPRING(4.5X20) |
09205-04015-000 |
from US $3.56 |
||
|
18
|
18
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
19
|
19
06111-M1000-400
Ball
|
06111-M1000-400 |
— | ||
|
20
|
20
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
21
|
21
25571-M75J0-000
Shaft, gear shift & select
|
25571-M75J0-000 |
— | ||
|
22
|
22
09103-08419-000 BOLT(8X25) |
09103-08419-000 |
from US $2.08 |
||
|
23
|
23
25311-59J20-000
Plate,gear shift interlock
|
25311-59J20-000 |
— | ||
| replacement | |||||
|
23
|
23
25311-59J21-000 PLATE,GEAR SHF INTERLOCK |
25311-59J21-000 |
US $9.57 |
||
|
24
|
24
25312-M68K0-000
Spring, gear shift interlock
|
25312-M68K0-000 |
— | ||
|
25
|
25
25541-M68K2-000
Lever, gear shift & select
|
25541-M68K2-000 |
— | ||
|
26
|
26
09205-03016-000 PIN,SPRING(3.5X28) |
09205-03016-000 |
from US $0.41 |
||
|
27
|
27
09205-06004-000 PIN,SPRING(6X28) |
09205-06004-000 |
from US $0.36 |
||
|
28
|
28
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
29
|
29
25576-M75J0-100
Spring, low speed select
|
25576-M75J0-100 |
— | ||
|
30
|
30
25577-M75J0-000
Spring, rev select
|
25577-M75J0-000 |
— | ||
|
31
|
31
08332-1112A-000 E RING |
08332-1112A-000 |
from US $0.96 |
||
|
32
|
32
08212-14301-000 WASHER |
08212-14301-000 |
from US $0.77 |
||
|
33
|
33
25581-M86JA-000
Cam, 5th & reverse gear shift
|
25581-M86JA-000 |
— | ||
|
34
|
34
25582-M75J0-000
Guide, 5th & reverse gear,shift cam
|
25582-M75J0-000 |
— | ||
|
35
|
35
25583-60B50-000 SPRING,CAM GUIDE RETURN |
25583-60B50-000 |
from US $0.81 |
||
|
36
|
36
09205-03035-000 PIN,SPRING(3X22) |
09205-03035-000 |
US $9.20 |
||
|
37
|
37
09205-04009-000 PIN,SPRING(4.5X20) |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
37
|
37
09205-04015-000 PIN,SPRING(4.5X20) |
09205-04015-000 |
from US $3.56 |
||
|
38
|
38
25584-51K00-000 BOLT,5TH TO REV INTLK GUIDE |
25584-51K00-000 |
US $3.46 |
||
|
39
|
39
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
40
|
40
25321-86G00-000
BOLT,GEAR SHF INTERLOCK
|
25321-86G00-000 |
— | ||
| replacement | |||||
|
40
|
40
25321-74PE0-000 BOLT,GEAR SHF INTERLOCK |
25321-74PE0-000 |
US $3.31 |
||
|
41
|
41
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
42
|
42
25610-M68K0-000
Lever, shift cable
|
25610-M68K0-000 |
— | ||
|
43
|
43
25620-M68K0-000
Lever, select cable
|
25620-M68K0-000 |
— | ||
|
44
|
44
09205-03037-000 PIN,SPRING(3X25) |
09205-03037-000 |
from US $0.77 |
||
|
45
|
45
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.04 |
||
|
46
|
46
25558-M75J0-000
Bush, boss
|
25558-M75J0-000 |
— | ||
|
47
|
47
25559-M75J0-000
Bush, shaft
|
25559-M75J0-000 |
— | ||
|
48
|
48
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
49
|
49
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
50
|
50
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
51
|
51
25624-74B00-000 BOOT,SEL LEVER INSIDE |
25624-74B00-000 |
from US $1.04 |
||
|
52
|
52
25625-74B00-000 BOOT,SEL LEVER OUTSIDE |
25625-74B00-000 |
from US $1.04 |
||
|
53
|
53
25630-M68K0-200
Bracket, select & clutch
|
25630-M68K0-200 |
— | ||
|
54
|
54
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
55
|
55
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL |
25651-74B00-000 |
from US $4.84 |
||
|
56
|
56
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.87 |
||
|
57
|
57
25573-M75J0-100
Case, gear shift guide
|
25573-M75J0-100 |
— | ||
|
58
|
58
09103-08366-000 BOLT(8X45) |
09103-08366-000 |
US $1.68 |
||
|
59
|
59
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
