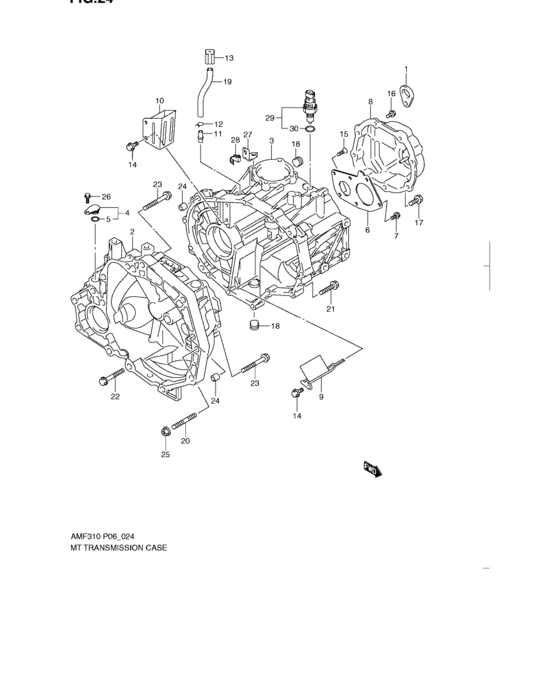

Mt transmission case (MT TRANSMISSION CASE) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-72B21-000 HOOK,ENGINE |
11851-72B21-000 |
from US $1.78 |
||
|
2
|
2
24711-M68K0-000
Case, transmission rh
|
24711-M68K0-000 |
— | ||
|
3
|
3
24721-M75J0-100
Case, transmission lh
|
24721-M75J0-100 |
— | ||
|
4
|
4
24723-M68K0-000
Cap, speedometer sensor
W/ABS |
24723-M68K0-000 |
— | ||
|
5
|
5
09280-14010-000 O RING(D:3.1,ID:13.8)O ring, inner W/ABS |
09280-14010-000 |
US $18.40 |
||
|
6
|
6
24725-M75J0-000
Plate, left case
|
24725-M75J0-000 |
— | ||
|
7
|
7
24728-65G40-000 SCREW,T/M LEFT CASE PLATE |
24728-65G40-000 |
from US $1.15 |
||
|
8
|
8
24730-M75J0-000
Cover, side
|
24730-M75J0-000 |
— | ||
|
9
|
9
24810-60B01-000 GUTTER,INPUT OIL |
24810-60B01-000 |
from US $4.95 |
||
|
10
|
10
24815-M75J0-000
Plate, breather case
|
24815-M75J0-000 |
— | ||
|
11
|
11
24821-M79F0-000
Union
|
24821-M79F0-000 |
— | ||
|
12
|
12
24826-M68K0-000
Clip, breather hose
|
24826-M68K0-000 |
— | ||
|
13
|
13
27991-M79G0-000
Plug
|
27991-M79G0-000 |
— | ||
|
14
|
14
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $0.88 |
||
|
15
|
15
09120-06014-000 SCREW(6X18)Screw, disc |
09120-06014-000 |
from US $1.76 |
||
|
16
|
16
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
17
|
17
09135-08007-000 BOLT(8X16) |
09135-08007-000 |
from US $4 |
||
|
18
|
18
09246-16010-000 PLUG |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
18
|
18
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.37 |
||
|
19
|
19
09352-70113-600
HOSE(7X11X600)
L:600->110 |
09352-70113-600 |
— | ||
| replacement | |||||
|
19
|
19
09352-70119-600 Hose(7X11X600)L:600->110 |
09352-70119-600 |
from US $4.96 |
||
|
20
|
20
01421-1045A-000 BOLT,STUD |
01421-1045A-000 |
US $16.20 |
||
|
21
|
21
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
22
|
22
01550-1040A-000 Bolt |
01550-1040A-000 |
from US $1.28 |
||
|
23
|
23
01550-1050A-000 BoltBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
24
|
24
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
25
|
25
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
26
|
26
01550-0616A-000 BoltW/ABS |
01550-0616A-000 |
from US $0.76 |
||
|
27
|
27
24726-M68K0-000
Bracket, breather hose
|
24726-M68K0-000 |
— | ||
|
28
|
28
09403-11314-000 CLAMP |
09403-11314-000 |
from US $5.20 |
||
|
29
|
29
37610-76G10-000 SWITCH ASSY,BACK UP |
37610-76G10-000 |
from US $18.09 |
||
|
30
|
30
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
