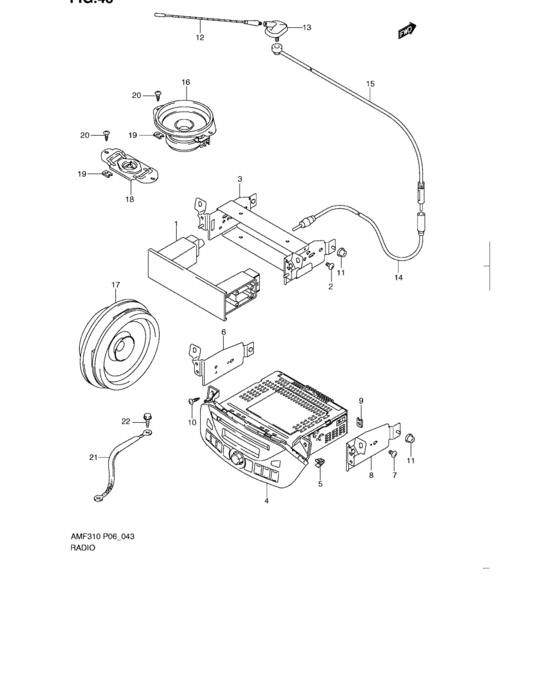

Radio (RADIO) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39161-M68K0-000
Cover, radio hole
N/TUNER |
39161-M68K0-000 |
— | ||
|
2
|
2
03241-0512A-000 SCREWN/TUNER |
03241-0512A-000 |
from US $0.68 |
||
|
3
|
3
39321-M68K1-000
Bracket, tuner
N/TUNER |
39321-M68K1-000 |
— | ||
|
5
|
5
09409-08332-000 CLIPW/TUNER |
09409-08332-000 |
from US $1.12 |
||
|
6
|
6
39321-M68K2-000
Bracket, tuner
W/TUNER |
39321-M68K2-000 |
— | ||
|
7
|
7
02142-0508A-000 SCREWScrew, cap W/TUNER |
02142-0508A-000 |
from US $0.76 |
||
|
8
|
8
39331-M68K2-000
Bracket, tuner
W/TUNER |
39331-M68K2-000 |
— | ||
|
9
|
9
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
11
|
11
34955-54G10-000 BUSH,RADIO BRKT |
34955-54G10-000 |
from US $0.88 |
||
|
12
|
12
39251-M68K0-000 Rod, antenna |
39251-M68K0-000 |
US $10.04 |
||
|
13
|
13
39253-M75J0-000 Base, antenna |
39253-M75J0-000 |
US $26.98 |
||
|
14
|
14
39270-M68K0-000
Feeder, i/p
|
39270-M68K0-000 |
— | ||
|
15
|
15
39271-M68K0-000
Feeder, ant roof
|
39271-M68K0-000 |
— | ||
|
16
|
16
39102-M68K0-000
Speaker assy, front
LOW |
39102-M68K0-000 |
— | ||
|
17
|
17
39102-M68K1-000
Speaker assy
HIGH |
39102-M68K1-000 |
— | ||
|
18
|
18
39102-M68K3-000
Speaker assy, tweeter
W/TWEETER |
39102-M68K3-000 |
— | ||
|
19
|
19
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
20
|
20
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
21
|
21
39312-78F10-000 WIRE,NOISE SUPPR |
39312-78F10-000 |
US $5.76 |
||
|
22
|
22
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
