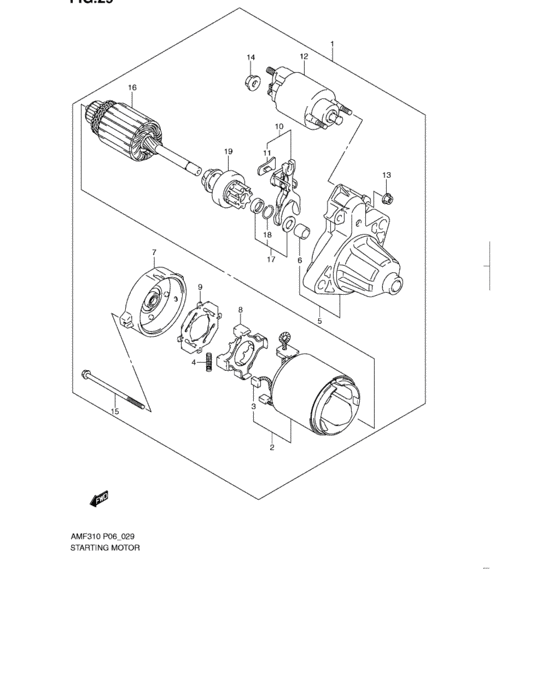

Starting motor (STARTING MOTOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-M68K0-000
Motor assy, starting
|
31100-M68K0-000 |
— | ||
|
2
|
2
31110-M7301-000
Yoke assy
|
31110-M7301-000 |
— | ||
|
3
|
3
31131-M51A1-000
Brush
|
31131-M51A1-000 |
— | ||
|
4
|
4
31135-51A10-000 SPRING,BRUSH |
31135-51A10-000 |
from US $1.58 |
||
|
5
|
5
31151-M68K0-000
Housing, starter
|
31151-M68K0-000 |
— | ||
|
6
|
6
31150-M75J0-000
Bearing
|
31150-M75J0-000 |
— | ||
|
7
|
7
31172-M68K0-000
Frame assy, starter end
|
31172-M68K0-000 |
— | ||
|
8
|
8
31173-51A10-000 HOLDER,BRUSH |
31173-51A10-000 |
from US $21.89 |
||
|
9
|
9
31175-51A10-000 INSULATOR |
31175-51A10-000 |
from US $1.46 |
||
|
10
|
10
31191-85020-000 LEVER ASSY |
31191-85020-000 |
from US $9.27 |
||
|
11
|
11
31264-M51A1-000
Seal, switch
|
31264-M51A1-000 |
— | ||
|
12
|
12
31220-M68K0-000
Switch assy
|
31220-M68K0-000 |
— | ||
|
13
|
13
31255-M7821-000
Nut, starting motor switch
|
31255-M7821-000 |
— | ||
|
14
|
14
31266-M7822-100
Nut, switch
|
31266-M7822-100 |
— | ||
|
15
|
15
31281-51A10-000 Bolt |
31281-51A10-000 |
from US $2.57 |
||
|
16
|
16
31311-M68K0-000
Armature assy, starter
|
31311-M68K0-000 |
— | ||
|
17
|
17
31312-M75J0-000
Ring, snap
|
31312-M75J0-000 |
— | ||
|
18
|
18
31313-M7901-000
Starter assy
|
31313-M7901-000 |
— | ||
|
19
|
19
31320-M68K0-000
Clutch assy
|
31320-M68K0-000 |
— |
