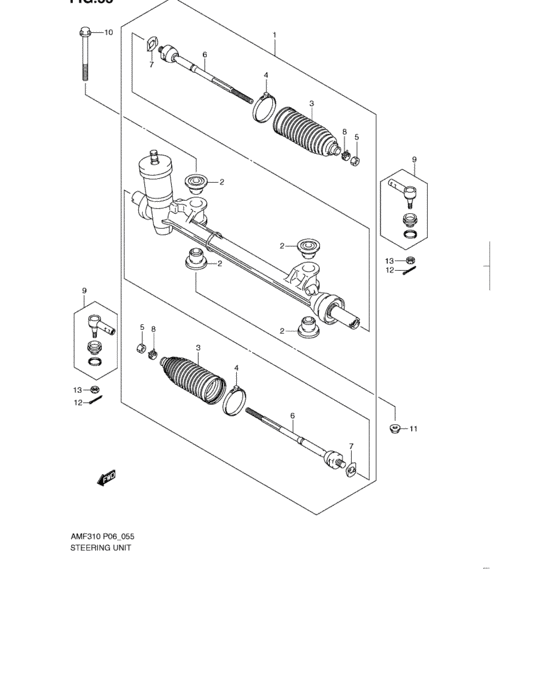

Steering unit (STEERING UNIT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-M68K2-000
Box assy, steering gear
|
48580-M68K2-000 |
— | ||
|
2
|
2
48525-M68K0-000
Bushing, steering gear box
|
48525-M68K0-000 |
— | ||
|
3
|
3
48571-M68K0-000
Boot, steering
|
48571-M68K0-000 |
— | ||
|
4
|
4
48575-M68K0-000
Band, steering
|
48575-M68K0-000 |
— | ||
|
5
|
5
48817-M68K0-000
Nut, tie rod end lock
|
48817-M68K0-000 |
— | ||
|
6
|
6
48830-M68K0-000
Tie rod, steering
|
48830-M68K0-000 |
— | ||
|
7
|
7
48841-M68K0-000
Washer, steering tie rod lock
|
48841-M68K0-000 |
— | ||
|
8
|
8
48871-M68K0-000
Clip, rack boot
|
48871-M68K0-000 |
— | ||
|
9
|
9
48810-M68K0-000
End, steering tie rod
|
48810-M68K0-000 |
— | ||
|
10
|
10
48528-68K00-000 BOLT,STRG GEAR BOX |
48528-68K00-000 |
US $10.08 |
||
|
11
|
11
09159-12064-000 NUT |
09159-12064-000 |
from US $1.76 |
||
|
12
|
12
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.59 |
||
|
13
|
13
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.99 |
