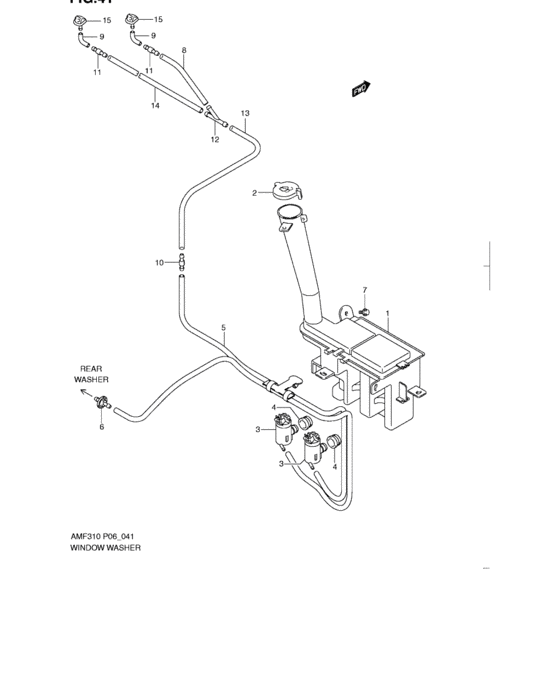

Window washer (WINDOW WASHER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-M68K0-000
Tank assy, washer
|
38450-M68K0-000 |
— | ||
|
2
|
2
38452-M68K0-000
Cap, washer tank
|
38452-M68K0-000 |
— | ||
|
3
|
3
38410-M6615-000
Pump assy, washer
|
38410-M6615-000 |
— | ||
|
4
|
4
38453-75000-000 GROMMET |
38453-75000-000 |
from US $1.60 |
||
|
5
|
5
38491-M68K0-000
Hose assy, fr & rr
|
38491-M68K0-000 |
— | ||
|
6
|
6
38496-M75J0-000
Joint, rear washer hose
|
38496-M75J0-000 |
— | ||
|
7
|
7
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
38459-50J00-000 HOSE,WASHER L:810L:810->110 |
38459-50J00-000 |
from US $4.10 |
||
|
9
|
9
38459-50J00-000 HOSE,WASHER L:810L:810->40 |
38459-50J00-000 |
from US $4.10 |
||
|
10
|
10
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $2.08 |
||
|
11
|
11
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $2.08 |
||
|
12
|
12
38496-M7131-000
Joint, 3way
|
38496-M7131-000 |
— | ||
|
13
|
13
38491-M68K2-000
Hose assy, no.1
|
38491-M68K2-000 |
— | ||
|
14
|
14
38491-M68K3-000
Hose assy, no.2
|
38491-M68K3-000 |
— | ||
|
15
|
15
38480-M59K0-000
Nozzle, washer
|
38480-M59K0-000 |
— | ||
