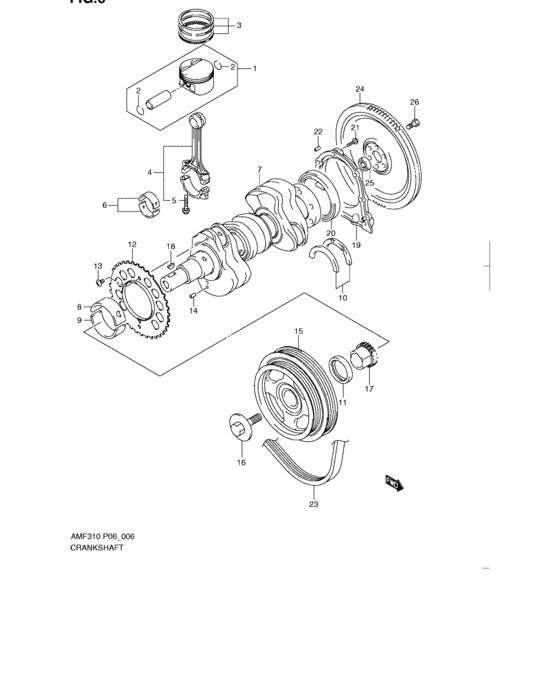

Crankshaft (CRANKSHAFT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-M6885-000
Piston set
|
12100-M6885-000 |
— | ||
|
2
|
2
09381-18002-000 CIRCLIP |
09381-18002-000 |
from US $0.90 |
||
|
3
|
3
12140-M68K5-000 Ring set, piston |
12140-M68K5-000 |
US $15.21 |
||
|
4
|
4
12160-M68K0-000
Connrod assy
|
12160-M68K0-000 |
— | ||
|
5
|
5
12163-69J00-000 BOLT,CONNROD |
12163-69J00-000 |
US $2.08 |
||
|
7
|
7
12221-M68K0-000
Crankshaft
|
12221-M68K0-000 |
— | ||
|
10
|
10
12300-M6882-000
Bearing set, crank thrust
STD,T:2.5 |
12300-M6882-000 |
— | ||
|
11
|
11
16141-M68K0-000
Seal, oil
|
16141-M68K0-000 |
— | ||
|
12
|
12
12222-51K00-000 PLATE,SENSOR |
12222-51K00-000 |
from US $7.47 |
||
|
13
|
13
12223-69G00-000 SCREW,SENSOR PLATE 6X10 |
12223-69G00-000 |
from US $0.75 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12) |
09205-05006-000 |
from US $2.12 |
||
|
15
|
15
12611-M68K0-000
Pulley, crankshaft
|
12611-M68K0-000 |
— | ||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEY |
12619-69G10-000 |
from US $9.60 |
||
|
17
|
17
12631-54G00-000
Sprocket, Crankshaft Timing
|
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 Sprocket, Crankshaft Timing |
12631-54G11-000 |
from US $33.57 |
||
|
18
|
18
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.60 |
||
|
19
|
19
11341-51K00-000 HOUSING,OIL SEAL |
11341-51K00-000 |
US $48.64 |
||
|
20
|
20
11342-M68K0-000
Seal, crankshaft rr oil
|
11342-M68K0-000 |
— | ||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11) |
09206-06005-000 |
from US $1.24 |
||
|
23
|
23
17521-M68K0-000
Belt, water pump
|
17521-M68K0-000 |
— | ||
|
24
|
24
12620-M68K0-000
Flywheel
|
12620-M68K0-000 |
— | ||
|
25
|
25
12623-M68K0-000
Bearing, input shaft
|
12623-M68K0-000 |
— | ||
|
26
|
26
09103-10305-000 BOLT(10X18.5) |
09103-10305-000 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
09100-10275-000 BOLT(10X18.5) |
09100-10275-000 |
from US $1.44 |
||
