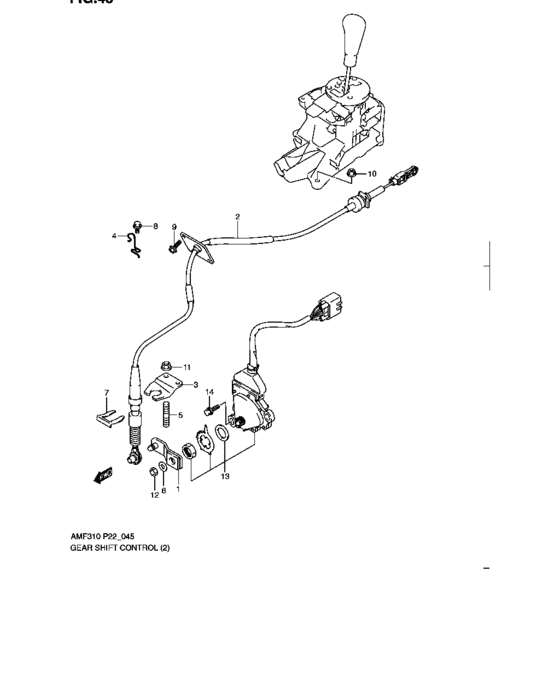

Gear shift control (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25971-70H10-000 LEVER,MANUAL SEL |
25971-70H10-000 |
from US $9.77 |
||
|
2
|
2
28210-M68K1-000
Cable assy, select
|
28210-M68K1-000 |
— | ||
|
3
|
3
28221-70H10-000 BRACKET,SELECT CABLE |
28221-70H10-000 |
US $7.80 |
||
|
4
|
4
28225-68K10-000 CLAMP,SELECT CABLE |
28225-68K10-000 |
US $3.24 |
||
|
5
|
5
09108-08257-000 BOLT,STUD |
09108-08257-000 |
US $18.40 |
||
|
6
|
6
09162-08008-000 WASHER,LOCKLock washer |
09162-08008-000 |
from US $0.96 |
||
|
7
|
7
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.34 |
||
|
8
|
8
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.83 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
08316-1008C-000 NUT |
08316-1008C-000 |
from US $4.55 |
||
|
12
|
12
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
13
|
13
37720-79C10-000 SWITCH ASSY,SHIFT |
37720-79C10-000 |
from US $189.43 |
||
|
14
|
14
24896-79C10-000 BOLT,SHIFT SWITCH |
24896-79C10-000 |
from US $1.08 |
