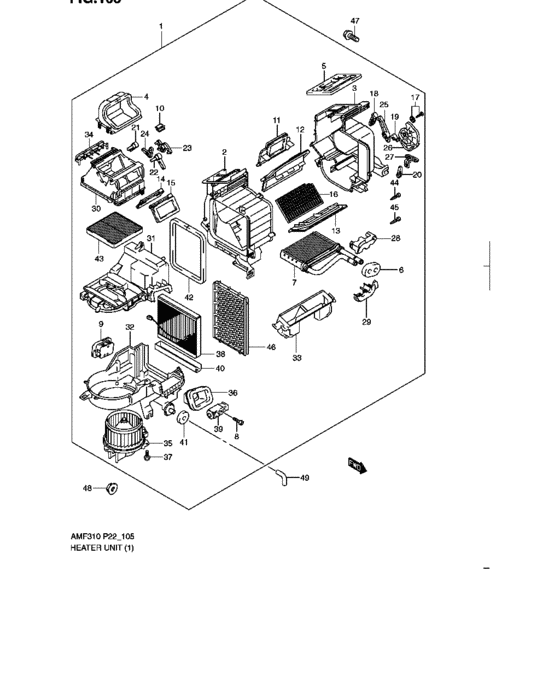

Heater unit (LHD) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-M68K1-000
Heater unit
N/AIR CONDITIONER |
74100-M68K1-000 |
— | ||
|
1
|
1
74100-M68K7-000
Heater unit
W/AIR CONDITIONER |
74100-M68K7-000 |
— | ||
|
2
|
2
74111-M68K1-000
Case, heater asst side
|
74111-M68K1-000 |
— | ||
|
3
|
3
74112-M68K1-000
Case, heater dr side
|
74112-M68K1-000 |
— | ||
|
4
|
4
74114-M68K1-000
Duct sub assy, air
|
74114-M68K1-000 |
— | ||
|
5
|
5
74116-M68K1-000
Packing
|
74116-M68K1-000 |
— | ||
|
6
|
6
74117-M68K1-000
Packing
|
74117-M68K1-000 |
— | ||
|
7
|
7
74120-M68K1-000
Core, heater
|
74120-M68K1-000 |
— | ||
|
8
|
8
74134-M58J0-000
Bolt, expansion
|
74134-M58J0-000 |
— | ||
|
9
|
9
74140-M68K1-000
Resistor, blower
|
74140-M68K1-000 |
— | ||
|
10
|
10
74151-M71B0-000
Clamp, Cable
|
74151-M71B0-000 |
— | ||
|
11
|
11
74171-M68K1-000
Door assy
|
74171-M68K1-000 |
— | ||
|
12
|
12
74172-M68K1-000
Door assy
|
74172-M68K1-000 |
— | ||
|
13
|
13
74173-M68K1-000
Door assy
|
74173-M68K1-000 |
— | ||
|
14
|
14
74174-M68K1-000
Door assy
|
74174-M68K1-000 |
— | ||
|
15
|
15
74175-M68K1-000
Door assy
|
74175-M68K1-000 |
— | ||
|
16
|
16
74176-M68K1-000
Cover sub assy
|
74176-M68K1-000 |
— | ||
|
17
|
17
74183-M8200-500
Screw, link
|
74183-M8200-500 |
— | ||
|
18
|
18
74185-M68K1-000
Lever
|
74185-M68K1-000 |
— | ||
|
19
|
19
74186-M68K1-000
Lever
|
74186-M68K1-000 |
— | ||
|
20
|
20
74187-M68K1-000
Lever
|
74187-M68K1-000 |
— | ||
|
21
|
21
74188-M68K1-000
Lever
|
74188-M68K1-000 |
— | ||
|
22
|
22
74189-M68K1-000
Lever
|
74189-M68K1-000 |
— | ||
|
23
|
23
74190-M68K1-000
Lever
|
74190-M68K1-000 |
— | ||
|
24
|
24
74191-M68K1-000
Lever
|
74191-M68K1-000 |
— | ||
|
25
|
25
74192-M68K1-000
Lever
|
74192-M68K1-000 |
— | ||
|
26
|
26
74193-M68K1-000
Lever
|
74193-M68K1-000 |
— | ||
|
27
|
27
74196-M68K1-000
Lever
|
74196-M68K1-000 |
— | ||
|
28
|
28
74194-M68K1-000
Bracket
|
74194-M68K1-000 |
— | ||
|
29
|
29
74195-M68K1-000
Bracket
|
74195-M68K1-000 |
— | ||
|
30
|
30
74210-M68K1-000
Case, blower
|
74210-M68K1-000 |
— | ||
|
31
|
31
74211-M68K3-000
Case, cooling unit upper
|
74211-M68K3-000 |
— | ||
|
32
|
32
74212-M68K3-000
Case, cooling unit lower
|
74212-M68K3-000 |
— | ||
|
33
|
33
74213-M68K1-000
Duct sub assy, air
|
74213-M68K1-000 |
— | ||
|
34
|
34
74214-M68K1-000
Holder, filter
|
74214-M68K1-000 |
— | ||
|
35
|
35
74250-M68K1-000
Motor assy, fan
|
74250-M68K1-000 |
— | ||
|
36
|
36
74811-M68K1-000
Cover, dash seal packing
N/AIR CONDITIONER |
74811-M68K1-000 |
— | ||
|
36
|
36
74811-M68K3-000
Cover, dash seal packing
W/AIR CONDITIONER |
74811-M68K3-000 |
— | ||
|
37
|
37
94135-M8200-000
Screw
|
94135-M8200-000 |
— | ||
|
38
|
38
95411-M68K1-000
Evaporator sub assy
W/AIR CONDITIONER |
95411-M68K1-000 |
— | ||
|
39
|
39
95431-M63J0-000
Valve, expansion
|
95431-M63J0-000 |
— | ||
|
40
|
40
95462-M68K1-000
Plate
|
95462-M68K1-000 |
— | ||
|
41
|
41
95463-M68K1-000
Packing
|
95463-M68K1-000 |
— | ||
|
42
|
42
95464-M68K1-000
Packing
|
95464-M68K1-000 |
— | ||
|
43
|
43
95861-M68K1-000
Filter, air refiner
W/AIR CONDITIONER |
95861-M68K1-000 |
— | ||
|
44
|
44
03112-0416A-000 SCREW |
03112-0416A-000 |
US $9.90 |
||
|
45
|
45
03112-0616A-000 SCREW |
03112-0616A-000 |
US $12.90 |
||
|
46
|
46
74261-M68K1-000
Plate cover assy
N/AIR CONDITIONER |
74261-M68K1-000 |
— | ||
|
47
|
47
09116-06169-000 BOLT(6X16) |
09116-06169-000 |
US $15.80 |
||
|
48
|
48
09159-06081-000 NUT |
09159-06081-000 |
from US $1.31 |
||
|
49
|
49
95481-M68K0-000
Hose, drain
W/AIR CONDITIONER |
95481-M68K0-000 |
— |
