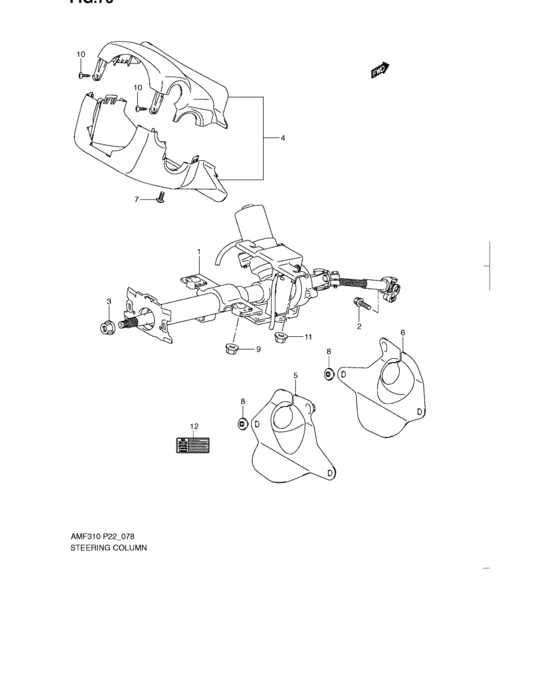

Steering column (STEERING COLUMN) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-M68K8-000
Column assy, colps steering
LHD |
48200-M68K8-000 |
— | ||
|
1
|
1
48200-M68K3-000
Column assy, colps steering
RHD |
48200-M68K3-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
5
|
5
48481-M68K5-000
Cover, steering joint
LHD |
48481-M68K5-000 |
— | ||
|
6
|
6
48481-M68K0-000
Cover, steering joint
RHD |
48481-M68K0-000 |
— | ||
|
7
|
7
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
|
8
|
8
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
9
|
9
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
79172-80G01-000
Label,steering joint
|
79172-80G01-000 |
— | ||
| replacement | |||||
|
12
|
12
79172-80G02-000 LABEL,STRG JOINT |
79172-80G02-000 |
US $4.48 |
||
