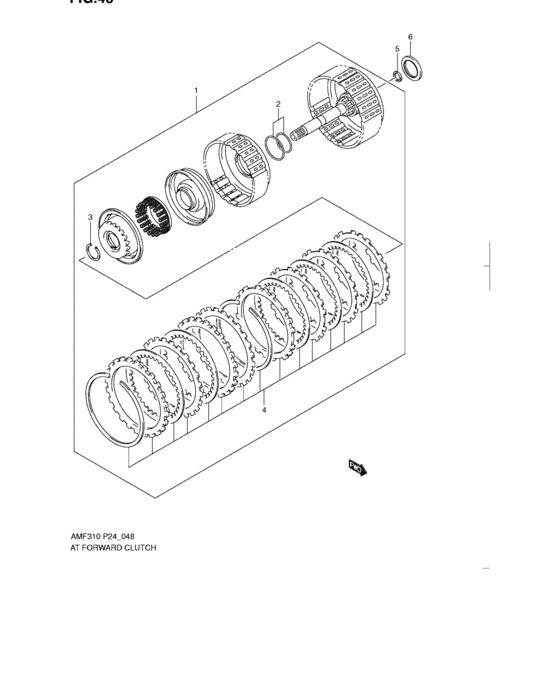

At forward clutch (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24200-68K10-000 CLUTCH ASSY,FORWARD |
24200-68K10-000 |
US $489.28 |
||
|
2
|
2
26614-79CT0-000
O-ring set,forward clutch
|
26614-79CT0-000 |
— | ||
| replacement | |||||
|
2
|
2
26614-77MT0-000 O-RING SET,FORWARD CLUTCH |
26614-77MT0-000 |
from US $3.31 |
||
|
3
|
3
26617-79C10-000 RING,BALANCER SNAP |
26617-79C10-000 |
from US $2.27 |
||
|
4
|
4
26618-68KT0-000
DISC SET,FWD&REV CLUTCH
|
26618-68KT0-000 |
— | ||
|
5
|
5
24271-79C10-000
Ring,intermediate shaf
|
24271-79C10-000 |
— | ||
| replacement | |||||
|
5
|
5
24271-77M10-000 RING,INTERMEDIATE SHAFT SEAL |
24271-77M10-000 |
from US $3.75 |
||
|
6
|
6
24975-79C10-000 BEARING,REVERSE CL DRUM |
24975-79C10-000 |
from US $15.38 |
||
