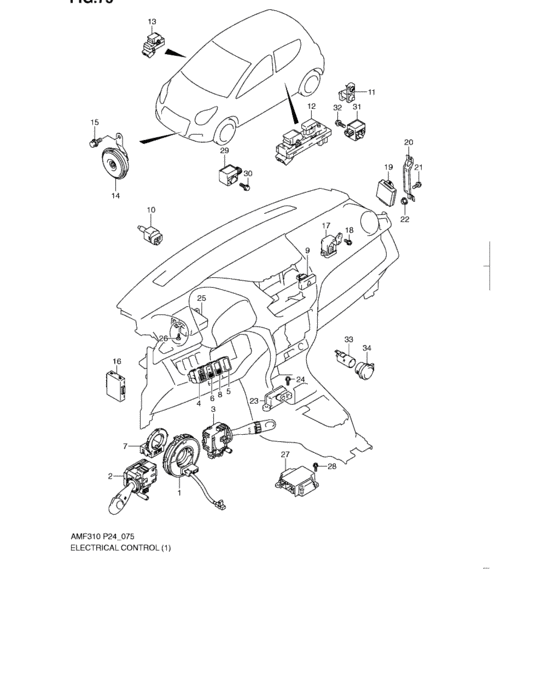

Electrical control (LHD) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37480-73H20-000 CABLE ASSY,CONTACT COIL |
37480-73H20-000 |
from US $146.16 |
||
|
2
|
2
37210-M68K2-000
Switch assy, lighting & turn
N/REAR FOG LAMP |
37210-M68K2-000 |
— | ||
|
2
|
2
37210-M68K0-000
Switch assy, lighting & turn
W/REAR FOG LAMP |
37210-M68K0-000 |
— | ||
|
3
|
3
37310-M75J3-000
Switch assy, wiper & washer
|
37310-M75J3-000 |
— | ||
|
4
|
4
35180-M68K0-000
Switch assy, head lamp
W/HEADLAMP LEVELING |
35180-M68K0-000 |
— | ||
|
5
|
5
37285-M75J0-000
Cap, option switch hole
|
37285-M75J0-000 |
— | ||
|
6
|
6
37270-M75J1-000
Switch assy, front fog lamp
W/FRONT FOG LAMP |
37270-M75J1-000 |
— | ||
|
7
|
7
37440-64J10-000 SENSOR ASSY,ANGLEW/ESP |
37440-64J10-000 |
from US $272.45 |
||
|
8
|
8
37585-M75J0-000
Switch assy, tcss off
W/ESP |
37585-M75J0-000 |
— | ||
|
10
|
10
37740-M68K0-000
Set, stop lamp switch
AT |
37740-M68K0-000 |
— | ||
|
11
|
11
37670-M55K0-000
Switch assy, door
|
37670-M55K0-000 |
— | ||
|
12
|
12
37995-M68K0-000
Switch assy, power window main
|
37995-M68K0-000 |
— | ||
|
13
|
13
37995-M75J0-000
Switch assy, power window rear
|
37995-M75J0-000 |
— | ||
|
14
|
14
38500-M68K0-000
Horn assy
|
38500-M68K0-000 |
— | ||
|
15
|
15
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
from US $1.01 |
||
|
16
|
16
36770-M68K3-100
Controller assy, body electric
:N/KEYLESS ENTRY |
36770-M68K3-100 |
— | ||
|
16
|
16
36770-M68K2-100
Controller assy, body electric
:W/KEYLESS ENTRY |
36770-M68K2-100 |
— | ||
|
16
|
16
36770-M68K4-100
Controller assy, body electric
Taiwan |
36770-M68K4-100 |
— | ||
|
16
|
16
36770-M68K7-100
Controller assy, body electric
Saudi Arabia:N/KEYLESS ENTRY |
36770-M68K7-100 |
— | ||
|
16
|
16
36770-M68K6-100
Controller assy, body electric
Saudi Arabia:W/KEYLESS ENTRY |
36770-M68K6-100 |
— | ||
|
16
|
16
36770-M68K0-100
Controller assy, body electric
Israel |
36770-M68K0-100 |
— | ||
|
17
|
17
37190-M68K0-000
Receiver assy, keyless
,Chile,Saudi Arabia,4,W/KEYLESS ENTRY |
37190-M68K0-000 |
— | ||
|
17
|
17
37190-M68K1-000
Receiver assy, keyless
Taiwan:W/KEYLESS ENTRY |
37190-M68K1-000 |
— | ||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket W/KEYLESS ENTRY |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
38880-68K21-000
CONTROLLER ASSY,AT
TYPE 1,AT:,Chile,Saudi Arabia |
38880-68K21-000 |
— | ||
|
19
|
19
38880-68K11-000
CONTROLLER ASSY,AT
TYPE 1,AT:Taiwan |
38880-68K11-000 |
— | ||
| replacement | |||||
|
19
|
19
38880-68K12-000 CONTROLLER ASSY,ATTYPE 1,AT:Taiwan |
38880-68K12-000 |
US $950.40 |
||
|
19
|
19
38880-68K00-000 CONTROLLER ASSY,ATTYPE 1,AT:Israel |
38880-68K00-000 |
US $950.40 |
||
|
19
|
19
38880-68K40-000 CONTROLLER ASSY,ATTYPE 2,AT:,Chile,Saudi Arabia |
38880-68K40-000 |
from US $783.83 |
||
|
20
|
20
38881-M68K0-000
Bracket, at controller
AT |
38881-M68K0-000 |
— | ||
|
21
|
21
02162-0610A-000 SCREWAT |
02162-0610A-000 |
from US $0.64 |
||
|
22
|
22
08316-1008A-000 NUTNut, idle gear shaft AT |
08316-1008A-000 |
from US $0.76 |
||
|
23
|
23
33945-68K00-000 SENSOR ASSY,YAWW/ESP |
33945-68K00-000 |
US $542.08 |
||
|
24
|
24
02162-0620C-000 SCREWW/ESP |
02162-0620C-000 |
from US $0.83 |
||
|
25
|
25
38720-M68K1-000
Controller assy, power,steering
,Chile,Taiwan,Saudi Arabia |
38720-M68K1-000 |
— | ||
|
25
|
25
38720-M68K0-000
Controller assy, power,steering
Israel |
38720-M68K0-000 |
— | ||
|
26
|
26
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
27
|
27
38910-M68K0-000
Controller assy, air bag
N/SIDE AIR BAG,N/CURTAIN AIR BAG |
38910-M68K0-000 |
— | ||
|
27
|
27
38910-M68K1-000
Controller assy, air bag
W/SIDE AIR BAG,N/CURTAIN AIR BAG |
38910-M68K1-000 |
— | ||
|
27
|
27
38910-M68K2-000
Controller assy, air bag
W/SIDE AIR BAG,W/CURTAIN AIR BAG |
38910-M68K2-000 |
— | ||
|
28
|
28
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
|
29
|
29
38930-M68K0-000
Sensor assy, forward
|
38930-M68K0-000 |
— | ||
|
30
|
30
09129-06006-000 SCREW(6X18) |
09129-06006-000 |
US $14 |
||
|
31
|
31
38930-M68K1-000
Sensor assy, side air bag
W/SIDE AIR BAG |
38930-M68K1-000 |
— | ||
|
32
|
32
09115-06004-000 BOLT(6X16)W/SIDE AIR BAG |
09115-06004-000 |
US $12.50 |
||
|
33
|
33
39420-M75J0-000
Body, socket
|
39420-M75J0-000 |
— | ||
