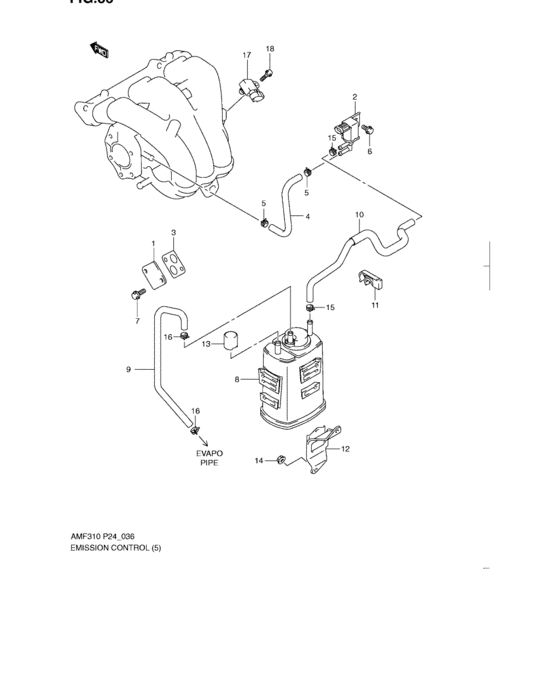

Emission control (TYPE 1:RHD:,Sinagpore,) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18491-77E00-000 PLATE,EGR VALVE |
18491-77E00-000 |
from US $1.64 |
||
|
2
|
2
18114-M83K0-000
Valve assy, duty for purge
|
18114-M83K0-000 |
— | ||
|
3
|
3
18529-M68K0-000
Gasket, egr valve
|
18529-M68K0-000 |
— | ||
|
4
|
4
18564-M68K0-000
Hose, purge
|
18564-M68K0-000 |
— | ||
|
5
|
5
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
6
|
6
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
18560-M83F1-000
Canister
|
18560-M83F1-000 |
— | ||
|
9
|
9
18561-M68K0-000
Hose, canister inlet
|
18561-M68K0-000 |
— | ||
|
10
|
10
18563-M68K0-000
Hose, canister purge no.2
|
18563-M68K0-000 |
— | ||
|
11
|
11
18565-M68K0-000
Clamp
|
18565-M68K0-000 |
— | ||
|
12
|
12
18570-M68K0-000
Bracket, canister
|
18570-M68K0-000 |
— | ||
|
13
|
13
18571-65H20-000 CAP,CANISTER AIR |
18571-65H20-000 |
from US $1.53 |
||
|
14
|
14
09159-06076-000 NUT |
09159-06076-000 |
from US $0.99 |
||
|
15
|
15
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
16
|
16
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
17
|
17
18590-M68K0-000
Sensor, map
|
18590-M68K0-000 |
— | ||
|
18
|
18
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
