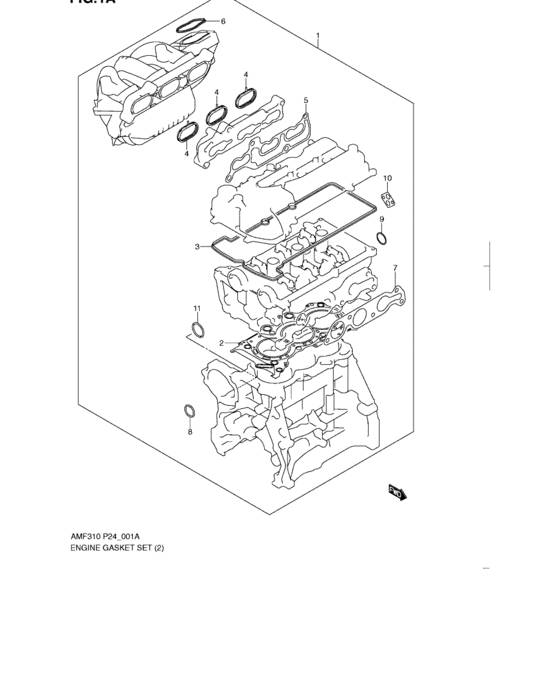

Engine gasket set (TYPE 2) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-M6987-000 Gasket set, engine |
11400-M6987-000 |
US $42.50 |
||
|
2
|
2
11141-M68K0-000
Gasket, cylinder head
|
11141-M68K0-000 |
— | ||
|
3
|
3
11189-M68K0-000
Gasket, Cylinder Head Cover
|
11189-M68K0-000 |
— | ||
|
4
|
4
13118-M67L0-000
Gasket, intake manifold
|
13118-M67L0-000 |
— | ||
|
5
|
5
13119-M68K0-000
Gasket, intk manf
|
13119-M68K0-000 |
— | ||
|
6
|
6
13421-M67L0-000 Gasket, throttle body |
13421-M67L0-000 |
US $3.13 |
||
|
7
|
7
14140-M68K0-000
Gasket, exhaust manifold
|
14140-M68K0-000 |
— | ||
|
8
|
8
16117-M68K0-000
O ring
|
16117-M68K0-000 |
— | ||
|
9
|
9
17699-M68K0-000
Gasket
|
17699-M68K0-000 |
— | ||
|
10
|
10
18529-M68K0-000
Gasket, egr valve
|
18529-M68K0-000 |
— | ||
|
11
|
11
09280-M2800-800
O ring, water inlet pipe
|
09280-M2800-800 |
— |
