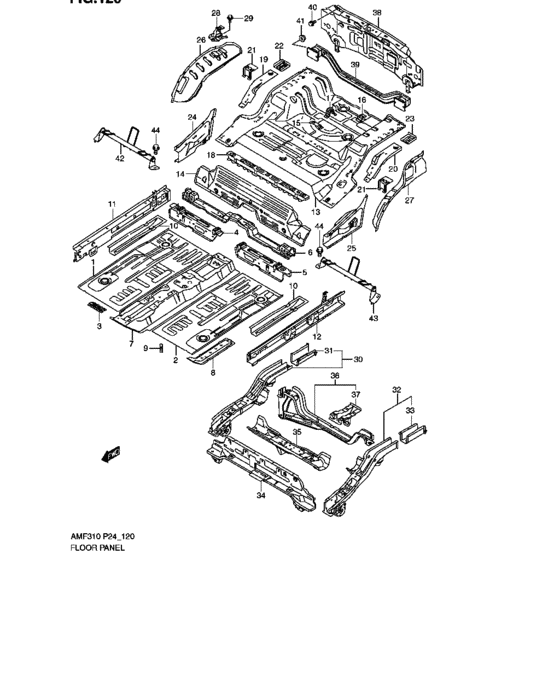

Floor panel (FLOOR PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-M68K0-000
Pan, main floor rh
|
61111-M68K0-000 |
— | ||
|
2
|
2
61161-M68K0-000
Pan, main floor lh
|
61161-M68K0-000 |
— | ||
|
3
|
3
61112-M68K0-000
Reinf, main floor rh
|
61112-M68K0-000 |
— | ||
|
4
|
4
61120-M68K0-000
Crossmember, flr pan no.1 rh
|
61120-M68K0-000 |
— | ||
|
5
|
5
61170-M68K0-000
Crossmember, flr pan no.1 lh
|
61170-M68K0-000 |
— | ||
|
6
|
6
61130-M68K0-000
Crossmember, flr pan no.2
|
61130-M68K0-000 |
— | ||
|
7
|
7
61210-M68K2-000
Tunnel, main floor
AT |
61210-M68K2-000 |
— | ||
|
8
|
8
61230-M68K0-000
Rainf, main floor lh
LHD |
61230-M68K0-000 |
— | ||
|
8
|
8
61220-M68K0-000
Rainf, main floor rh
RHD |
61220-M68K0-000 |
— | ||
|
9
|
9
09119-05018-000 BOLT(8X35) |
09119-05018-000 |
US $9.60 |
||
|
10
|
10
61241-M68K0-000
Member, floor side rear
|
61241-M68K0-000 |
— | ||
|
11
|
11
61310-M68K0-000
Panel, side sill inner rh
|
61310-M68K0-000 |
— | ||
|
12
|
12
61320-M68K0-000
Panel, side sill inner lh
|
61320-M68K0-000 |
— | ||
|
13
|
13
61511-M68K0-000
Panel, rr floor
|
61511-M68K0-000 |
— | ||
|
14
|
14
61512-M68K0-000
Panel, rr floor fr
|
61512-M68K0-000 |
— | ||
|
15
|
15
61513-M68K0-000
Support, spare tire no.1
W/SPARE TIRE |
61513-M68K0-000 |
— | ||
|
16
|
16
61514-M68K0-000
Support, spare tire no.2
W/SPARE TIRE |
61514-M68K0-000 |
— | ||
|
17
|
17
61520-M68K0-000
Bracket, spare tire
|
61520-M68K0-000 |
— | ||
|
18
|
18
61521-M68K0-000
Member, rr seat support
|
61521-M68K0-000 |
— | ||
|
19
|
19
61531-M68K0-000
Reinf, rr seat hng side rh
|
61531-M68K0-000 |
— | ||
|
20
|
20
61631-M68K0-000
Reinf, rr seat hng side lh
|
61631-M68K0-000 |
— | ||
|
21
|
21
61541-M68K0-000
Bracket, rr floor side
|
61541-M68K0-000 |
— | ||
|
22
|
22
61551-M68K0-000
Reinf, rr flr side rh
|
61551-M68K0-000 |
— | ||
|
23
|
23
61651-M68K0-000
Reinf, rr flr side lh
|
61651-M68K0-000 |
— | ||
|
24
|
24
61560-M68K0-000
Locker, rr flr fr inner rh
|
61560-M68K0-000 |
— | ||
|
25
|
25
61570-M68K0-000
Locker, rr flr fr inner lh
|
61570-M68K0-000 |
— | ||
|
26
|
26
61610-M68K0-000
Panel, rr whl house inr rh
|
61610-M68K0-000 |
— | ||
|
27
|
27
61661-M68K0-000
Panel, rr whl house inr lh
|
61661-M68K0-000 |
— | ||
|
28
|
28
61620-M68K0-000
Bracket, jack
|
61620-M68K0-000 |
— | ||
|
29
|
29
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
62100-M68K0-000
Member, rr floor side rh
|
62100-M68K0-000 |
— | ||
|
31
|
31
62131-M68K0-000
Member, rear floor side rr rh
|
62131-M68K0-000 |
— | ||
|
32
|
32
62300-M68K0-000
Member, rr floor side lh
|
62300-M68K0-000 |
— | ||
|
33
|
33
62331-M68K0-000
Member, rear floor side rr lh
|
62331-M68K0-000 |
— | ||
|
34
|
34
62610-M68K0-000
Crossmember, rr floor fr
|
62610-M68K0-000 |
— | ||
|
35
|
35
62620-M68K0-000
Crossmember, rr floor 2nd
|
62620-M68K0-000 |
— | ||
|
36
|
36
62630-M68K0-000
Crossmember, rr floor 3rd
|
62630-M68K0-000 |
— | ||
|
37
|
37
62640-M68K0-000
Hook, towing rear
|
62640-M68K0-000 |
— | ||
|
38
|
38
65400-M68K0-000
Panel, rear skirt
|
65400-M68K0-000 |
— | ||
|
39
|
39
65560-M68K0-000
Member, rear bumper
|
65560-M68K0-000 |
— | ||
|
40
|
40
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
42
|
42
75990-M68K0-000
Anchor assy, child seat rh
|
75990-M68K0-000 |
— | ||
|
43
|
43
75990-M68K1-000
Anchor assy, child seat lh
|
75990-M68K1-000 |
— | ||
|
44
|
44
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
