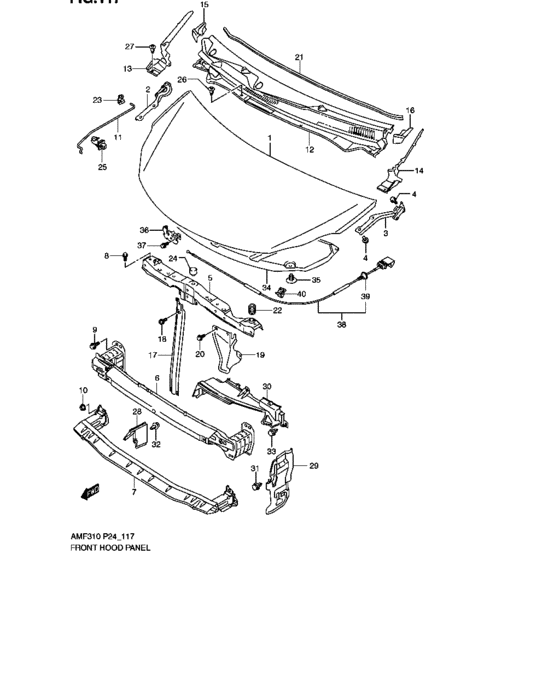

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-M68K0-000 Panel assy, front hood |
57300-M68K0-000 |
US $180.02 |
||
|
2
|
2
57410-M68K0-000
Hinge, front hood rh
|
57410-M68K0-000 |
— | ||
|
3
|
3
57420-M68K0-000
Hinge, front hood lh
|
57420-M68K0-000 |
— | ||
|
4
|
4
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
58230-M68K0-000 Member, hood lock |
58230-M68K0-000 |
US $38.88 |
||
|
6
|
6
58270-M68K0-000
Member, fr bumper upper
|
58270-M68K0-000 |
— | ||
|
7
|
7
58280-M68K0-000
Member, fr bumper lower
|
58280-M68K0-000 |
— | ||
|
8
|
8
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
72310-M68K0-000
Stay, fr hood
|
72310-M68K0-000 |
— | ||
|
17
|
17
72351-M68K0-000
Brace, hood lock
|
72351-M68K0-000 |
— | ||
|
18
|
18
02162-0612C-000 SCREW |
02162-0612C-000 |
US $9.60 |
||
|
19
|
19
72355-M68K0-000
Protector, condenser front
|
72355-M68K0-000 |
— | ||
|
21
|
21
72362-M83K0-000
Seal, hood rear
|
72362-M83K0-000 |
— | ||
|
22
|
22
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.24 |
||
|
23
|
23
09209-M0901-100
Linkage
|
09209-M0901-100 |
— | ||
|
24
|
24
09321-10023-000 CUSHION |
09321-10023-000 |
from US $2.09 |
||
|
25
|
25
72312-M68K0-000
Holder, stay
|
72312-M68K0-000 |
— | ||
|
26
|
26
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
27
|
27
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
28
|
28
72395-M68K0-000
Cover, front end side rh
|
72395-M68K0-000 |
— | ||
|
29
|
29
72396-M68K0-000
Cover, front end side lh
|
72396-M68K0-000 |
— | ||
|
30
|
30
72397-M68K0-100
Cover, engine front
|
72397-M68K0-100 |
— | ||
|
31
|
31
09409-M07L0-100
Clip
|
09409-M07L0-100 |
— | ||
|
32
|
32
09409-M07L0-100
Clip
|
09409-M07L0-100 |
— | ||
|
33
|
33
09409-M07L0-100
Clip
|
09409-M07L0-100 |
— | ||
|
34
|
34
72440-M68K0-000
Silencer, fr hood
|
72440-M68K0-000 |
— | ||
|
35
|
35
09409-06325-000 CLIP |
09409-06325-000 |
from US $1.28 |
||
|
36
|
36
82110-M68K0-000 Latch, hood |
82110-M68K0-000 |
US $12.33 |
||
|
37
|
37
09138-06049-000 BOLT(6X12) |
09138-06049-000 |
US $1.12 |
||
|
38
|
38
82160-M68K1-000
Cable, hood latch release
LHD |
82160-M68K1-000 |
— | ||
|
38
|
38
82160-M68K0-000
Cable, hood latch release
RHD |
82160-M68K0-000 |
— | ||
|
39
|
39
82191-50E00-000 GROMMET,LATCH RELEASE CABLE |
82191-50E00-000 |
from US $2.16 |
||
|
40
|
40
76238-M70F0-000
Clamp, trunk lid opener cable
LHD |
76238-M70F0-000 |
— |
