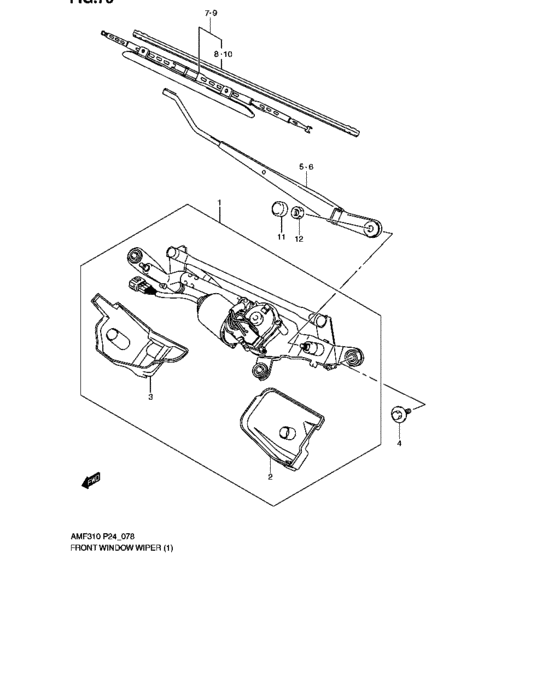

Front window wiper (LHD) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-M68K0-000
Wiper assy, windshield
|
38100-M68K0-000 |
— | ||
|
2
|
2
38112-M68K0-000
Cap
|
38112-M68K0-000 |
— | ||
|
3
|
3
38116-M68K0-000
Cap
|
38116-M68K0-000 |
— | ||
|
4
|
4
09116-06172-000 BOLT(6X30)Bolt (6x30) |
09116-06172-000 |
from US $1.01 |
||
|
5
|
5
38310-M68K0-000
Arm assy, wiper driver side
|
38310-M68K0-000 |
— | ||
|
6
|
6
38330-M68K0-000
Arm assy, wiper passenger side
|
38330-M68K0-000 |
— | ||
|
7
|
7
38340-M68K0-000
Blade assy, wiper driver side
|
38340-M68K0-000 |
— | ||
|
8
|
8
38346-M68K0-000 Rubber |
38346-M68K0-000 |
US $8.44 |
||
|
9
|
9
38341-M68K0-000
Blade assy, wiper passenger,side
|
38341-M68K0-000 |
— | ||
|
10
|
10
38347-M68K0-000 Rubber |
38347-M68K0-000 |
US $6.71 |
||
|
11
|
11
38315-60B11-000 CAP,WIPER PIVOT |
38315-60B11-000 |
from US $1.60 |
||
|
12
|
12
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
